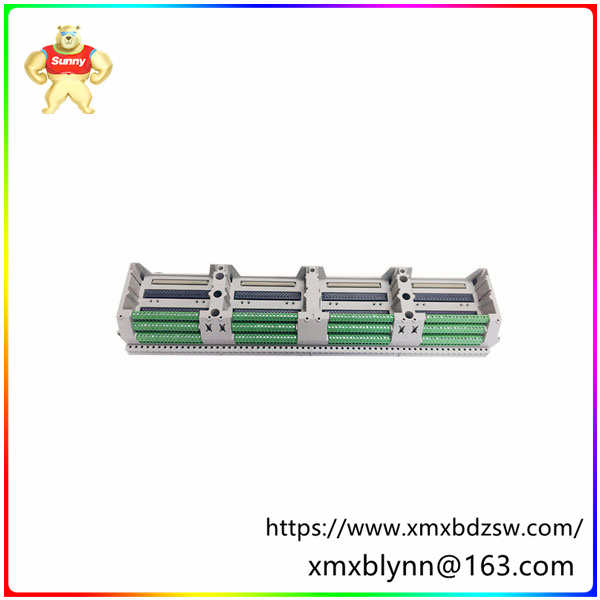

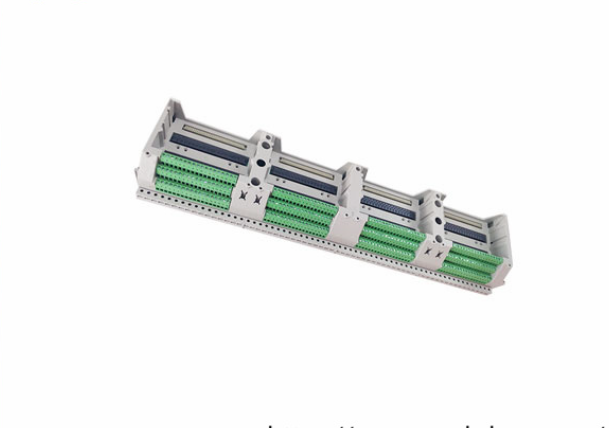

>>>>>型号:5X00419G02 | 以太网链路控制器 | 确保系统的可靠性
[产品说明]
品牌: 艾默生
型号:5X00419G02
产品类型:以太网链路控制器
付款方式:电汇,西联
汇款 装运港:中国厦门
交货时间:1-3个工作日
条件:全新和 100% 原始
保修:12 个月
5X00419G02 是一款以太网链路控制器,可在以太网网络和 Ovation 控制系统之间提供高速、可靠的连接。它支持高达 100 Mbps 的全双工以太网通信,并提供多种功能以确保网络可靠性,包括:
链路监控和故障检测
自动配置和恢复
冗余电源
规格:
数据速率:100 Mbps
双工模式:全双工
协议:TCP/IP、Modbus、FIP
电源:120/240 VAC
工作温度:0°C 至 60°C
储存温度:-40°C 至 85°C
尺寸:19“ x 3U x 1.75”
重量:10磅
特点:
旨在满足发电和水/废水处理行业的独特需求。
发电 - Ovation 包括嵌入式应用,例如锅炉/涡轮机控制的全面协调、排放监测、经济调度和车队管理
水/废水处理 -Ovation 集成了 SCADA 系统接口、宽现场监测和控制、与 PLC 的无缝集成以及全面的诊断程序
多功能、商用硬件、软件、网络和通信接口使您能够轻松、经济高效地跟上不断变化的技术。
提供与智能现场设备和广泛采用的总线技术(如 HART)的无缝集成,支持 FOUNDATION 总线、PROFIBUS DP 和 DeviceNet。
为电力设备智能预测提供综合资产管理解决方案,以及管理人才。
包含一整套直观的编程工具,有助于最大限度地减少工程和配置时间。
技术特点
通信方式:
可能与标准化通信方法(如串行外设接口SPI)兼容,用于设备和控制单元之间的长距离数据交换。
SPI通信方法适用于不超过10米的线缆距离,如需更长的通信距离,可能需要使用中继器。
电气隔离:
鉴于工业环境通常较为恶劣,产品可能采用电气隔离通信部件,以保护用户免受危险电压影响,同时确保系统的可靠性。
接口设计:
SPI接口可能包含三行:SDI(串行数据输入)、SDO(串行数据输出)和SCK(串行时钟)。
应用领域:
5X00419G02广泛应用于自动化、控制和过程解决方案等领域,特别是在炼油厂、燃气厂、石化厂、发电厂等大型工厂中。
[其他型号推荐]
>>>>> Model :5X00419G02 | Ethernet link controller | ensures system reliability
Brand: Emerson
Model: 5X00419G02
Product type: Ethernet link controller
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The 5X00419G02 is an Ethernet link controller that provides high-speed, reliable connectivity between an Ethernet network and an Ovation control system. It supports full-duplex Ethernet communications up to 100 Mbps and offers a variety of features to ensure network reliability, including:
Link monitoring and fault detection
Automatic configuration and recovery
Redundant power supply
Specifications:
Data rate: 100 Mbps
Duplex mode: Full duplex
Protocol: TCP/IP, Modbus, FIP
Power Supply: 120/240 VAC
Operating temperature: 0°C to 60°C
Storage temperature: -40°C to 85°C
Size: 19 "x 3U x 1.75"
Weight: 10 pounds
Features:
Designed to meet the unique needs of the power generation and water/wastewater treatment industries.
Power Generation - Ovation includes embedded applications such as full coordination of boiler/turbine control, emissions monitoring, economic dispatch and fleet management
Water/Wastewater Treatment -Ovation integrates SCADA system interfaces, wide field monitoring and control, seamless integration with PLCS, and a comprehensive diagnostic program
Multi-functional, commercial hardware, software, networking, and communication interfaces make it easy and cost-effective to keep up with changing technology.
Provides seamless integration with smart field devices and widely adopted bus technologies such as HART, supporting FOUNDATION bus, PROFIBUS DP and DeviceNet.
Integrated asset management solutions for power equipment intelligent forecasting, as well as management talent.
Includes a complete set of intuitive programming tools to help minimize engineering and configuration time.
Technical characteristics
Communication method:
May be compatible with standardized communication methods such as serial peripheral Interface (SPI) for long-distance data exchange between devices and control units.
The SPI communication method is suitable for cable distances up to 10 meters, and Repeaters may be required for longer communication distances.
Electrical isolation:
Given the often harsh industrial environment, products may use electrically isolated communication components to protect users from hazardous voltages while ensuring system reliability.
Interface design:
The SPI interface may contain three lines: SDI (serial data input), SDO (serial data output), and SCK (serial clock).
Application field:
The 5X00419G02 is widely used in automation, control and process solutions, especially in large plants such as refineries, gas plants, petrochemical plants and power plants.
