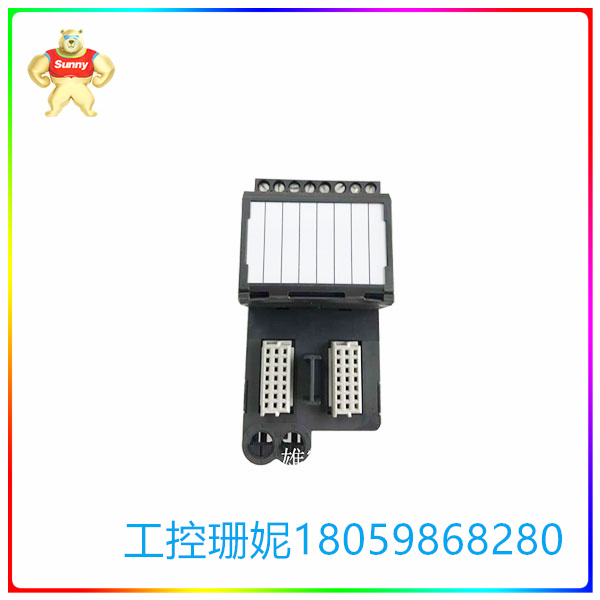

CE4005S2B4 隔离磁场电路的电源 标准I/O接线板

☆型号：CE4005S2B4 隔离磁场电路的电源 标准I/O接线板

【产品详情】

介绍

s系列传统I/O接口提供了改进的易用性

安装与m系列相同的经过验证的功能

I / O接口。这个模块化的I/O子系统提供了灵活性

在安装过程中，并设计用于极端环境

现场设备条件。s系列传统I/O是

配备一个快速安装的固定系统。

I/O接口可以安装在任何可能的位置

64位。

所有的线路都是通过载体和接线板，所以

无需断开连接即可轻松拆卸模块

任何电线。模块化、快速安装、在线扩展、

环境坚固的硬件使DeltaV™s系列

传统I/O是过程控制系统的明智选择。

好处

模块化和灵活的结构:传统的s系列

I/O子系统的设计考虑到了您的投资。

每个控制器最多支持8个I/O载波，组成a

稳健，无源总线多达64个I/O接口。每个接口

有一个匹配的I/O终端块，可以安装在任何

总线上的I/O槽位。运营商和接口可以在线添加，

而不会中断现有的I/O通信。

这种模块化设计使您可以购买到精确的

I/O卡数量，八宽载波，电源/控制器，

和你需要的双宽载波，并增加更多的德尔塔v I/O

随着系统的增长。

减少安装时间和费用:DeltaV系统

s系列I/O接口设计用于快速组装和

防错维护。所有载体都要固定在T-DIN轨道上

接口无需使用任何工具即可插入I/O插槽。

每个I/O接口都有一个独立的接线端子排，

把现场线路和接口连接起来。I/O卡可以

很容易拆卸，而不触及I/O接线上

接线盒。有些I/O卡也可以使用熔接端子

块，它配备了可拔出的在线保险丝

隔离磁场电路的电源。

传统I/O接口的I/O功能键允许

要设置为接收特定I/O卡的终端块。

这些键确保始终插入正确的I/O卡

进入相应的端子排。这些键提供了

安全措施，防止错误的I/O卡

安装。它非常容易使用，给你时间

做更多的工作。

☆型号：CE4005S2B4 隔离磁场电路的电源 标准I/O接线板

【英文介绍】

Introduction

S-series traditional I/O interfaces provide improved ease

of installation with the same proven features of M-series

I/O interfaces.  This modular I/O subsystem offers flexibility

during installation and is designed for extreme environmental

conditions of field installations.  S-series traditional I/O is

equipped with a snap-in retention system for quick installation.

The I/O interfaces can be installed in any of the possible

64 slots.

All wiring is through the carriers and terminal blocks so that

modules can easily be removed without disconnecting

any wires.  Modularity, fast installation, online expansion,

and environmentally robust hardware make DeltaV™ S-series

traditional I/O a smart choice for your process control system.

Benefits

Modular and flexible construction: The S-series traditional

I/O subsystem is designed with your investment in mind.

Each controller supports up to eight I/O carriers that form a

robust, passive bus for up to 64 I/O interfaces.  Each interface

has a matching I/O terminal block and can be installed in any

I/O slot on the bus.  Carriers and interfaces can be added online,

without interruption to the existing I/O communication.

This modular design enables you to purchase the exact

amount of I/O cards, eight-wide carriers, power/controllers,

and two-wide carriers you need and add more DeltaV I/O

as your system grows.

Reduced installation time and expense: The DeltaV system’s

S-series I/O interfaces are designed for quick assembly and

error proof maintenance.  All carriers snap onto T-DIN rails and

interfaces snap into the I/O slots without the use of any tools.

Each I/O interface has a separate wiring terminal block,

which connects field wiring to the interface.  The I/O card can

easily be removed without touching the I/O wiring on the

terminal block.  Some I/O cards can also use the fused terminal

block, which is equipped with in-line fuses that can be pulled

to isolate power to the field circuit.

Traditional I/O interfaces have I/O function keys that allow

the terminal block to be set to receive a specific I/O card.

These keys ensure that the correct I/O card is always plugged

into the corresponding terminal block.  The keys provide a

safety measure by preventing the wrong I/O card being

installed.  It’s incredibly easy to use and gives you time to

do more.
