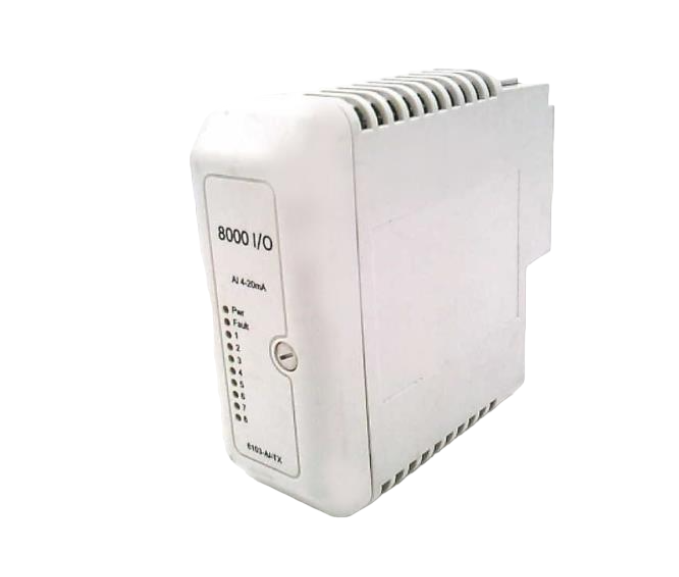

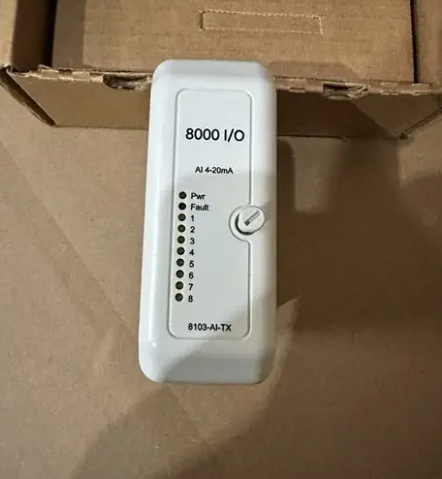

8103-AI-TX 8 通道模拟量输入4-20mA

☆型号：8103-AI-TX 8 通道模拟量输入4-20mA

【产品详情】

订货号8103-AI-TX

模拟量输入点数和类型8 点单端 4-20 mA；非易燃现场电路

分辨率和速度16 位；响应时间为 27ms；0.75S HART

电流消耗150mA 系统电源；300mA 场电源

故障检测开路和短路检测

PAC8000 I/O 是一种完全模块化的 I/O 解决方案，适用于一般用途和危险区域的应用。它提供多种 I/O 功能，并具有开放式架构，通过选择适当类型的总线接口模块 (BIM) 或控制器，可与各种不同的现场总线进行通信。

现场接线端子（每个 I/O 模块一个）卡在背板上用于接受现场接线，而无需额外的端子或连接器。如果在现场被损坏，它们很容易被更换。全面的机械键锁系统确保维持设备安全。

通过提供一个平板或 T 型或 G 型 DIN 导轨上的安装方式，背板构成了 PAC8000 物理和电气的主干。它们支持并将总线接口模块（BIM） 或控制器、电源、I/O 模块和现场接线端子进行互连，并承载内部Railbus的地址线，数据线和电源线

☆型号：8103-AI-TX 8 通道模拟量输入4-20mA

【英文介绍】

Order number 8103-AI-TX

Analog input number and type 8 point single-end 4-20 mA; Non-flammable field circuit

Resolution and speed 16 bits; The response time is 27ms. 0.75S HART

Current consumption 150mA system power supply; 300mA field power supply

Fault detection Open and short circuit detection

The PAC8000 I/O is a fully modular I/O solution for general purpose and hazardous area applications. It offers a variety of I/O functions and has an open architecture that allows communication with a wide variety of different fieldbuses by selecting the appropriate type of bus interface module (BIM) or controller.

Field terminals (one per I/O module) are clamped onto the backplane to accept field wiring without the need for additional terminals or connectors. If damaged in the field, they can be easily replaced. A comprehensive mechanical keylock system ensures safe maintenance of equipment.

The backplane forms the physical and electrical backbone of the PAC8000 by providing a flat plate or mounting on a T or G DIN rail. They support and interconnect bus interface modules (BIM) or controllers, power supplies, I/O modules, and field terminals, and carry the address, data, and power lines of the internal Railbus
