8102-HO-IP 8通道模拟输出 带HART电流

☆型号：8102-HO-IP 8通道模拟输出 带HART电流

【产品详情】

零件编号8102-HO-IP

模拟输出计数和类型8 点单端 4-20 mA;非易燃场电路

分辨率和速度12 位;20毫秒;0.75S 哈特

消耗电流150mA 系统电源;300mA 现场电源

故障检测开路和短路检测

HART功能HART直通和HART变量和状态报告

PAC8000 I/O 是一种完全模块化的 I/O 解决方案，适用于通用和危险区域应用。它提供了多种 I/O 功能，并具有开放式架构，允许通过选择适当类型的总线接口模块 （BIM） 或控制器与各种不同的现场总线进行通信。

现场端子（每个 I/O 模块一个）卡在托架上并接受现场接线，无需额外的端子或连接。如果在现场损坏，它们可以很容易地更换。全面的机械键控系统确保设备安全。

载体通过安装在平板或T型或G型DIN导轨上来形成PAC8000的物理和电气主干。它们支持并互连BIM或控制器、电源、I/O模块和现场终端，并承载内部Railbus的地址、数据和电力线

开路和短路检测

阀门定位器和远程指示器，

☆型号：8102-HO-IP 8通道模拟输出 带HART电流

【英文介绍】

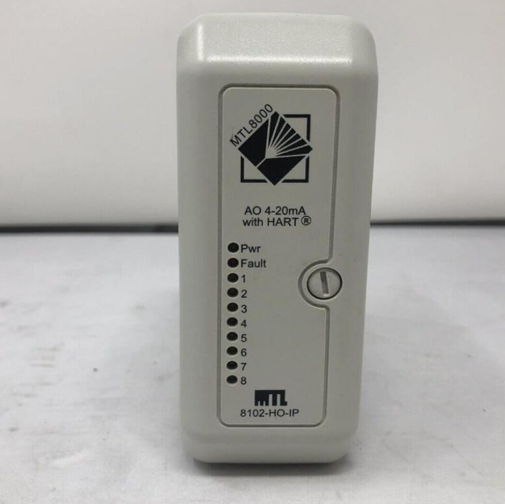

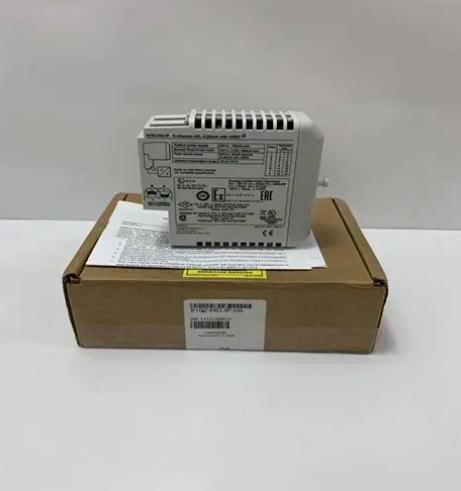

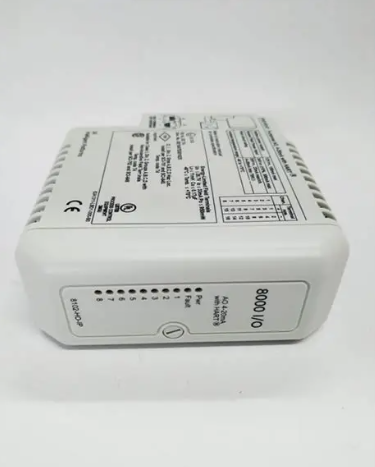

Part number 8102-HO-IP

Analog output counts and types 8-point single-ended 4-20 mA; Non-flammable field circuit

Resolution and speed 12 bits; 20 milliseconds; 0.75S Hart

Consumption current 150mA system power supply; 300mA on-site power supply

Fault detection Open and short circuit detection

HART function HART pass-through and HART variable and status reporting

The PAC8000 I/O is a fully modular I/O solution for general purpose and hazardous zone applications. It offers a variety of I/O capabilities and has an open architecture that allows communication with a variety of different fieldbuses by selecting the appropriate type of bus interface module (BIM) or controller.

Field terminals (one per I/O module) are clamped into the carrier and accept field wiring without additional terminals or connections. If damaged in the field, they can be easily replaced. A comprehensive mechanical keying system ensures equipment safety.

The carrier forms the physical and electrical backbone of the PAC8000 by mounting on a flat plate or T or G DIN rail. They support and interconnect BIM or controllers, power supplies, I/O modules, and field terminals, and carry the addresses, data, and power lines of the internal Railbus

Open and short circuit detection

Valve positioners and remote indicators,

☆型号：8102-HO-IP 8通道模拟输出 带HART电流
