8V1045.00-2 集成线路滤波器  集成制动电阻器

【产品详情】

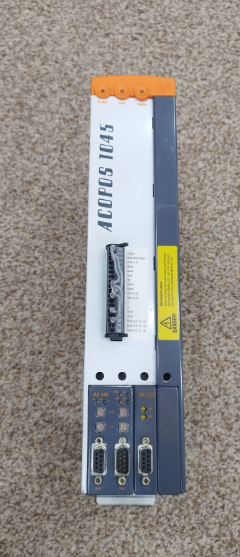

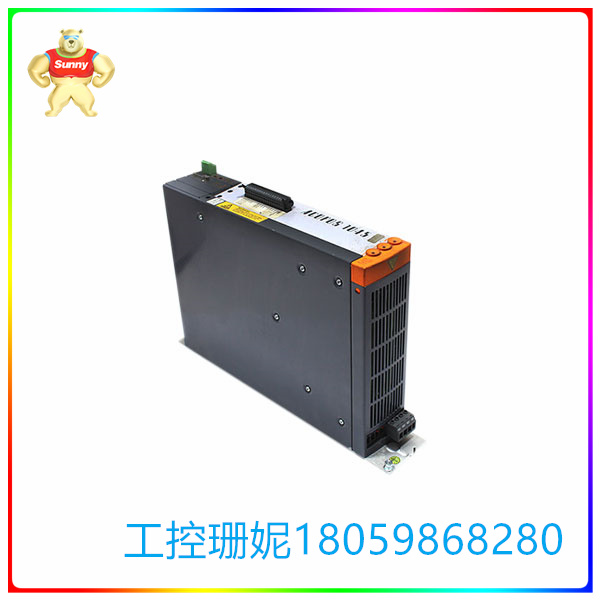

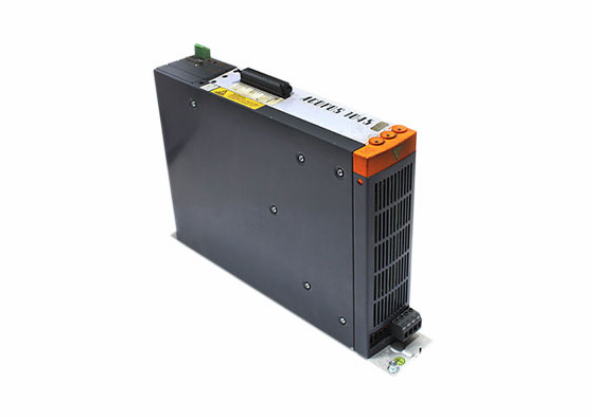

B &R 8V1045.001-2是一款交流伺服驱动器。它专为工业电机控制应用而设计。该电机是ACOPOS产品线的一部分。ACOPOS 驱动器的一般特性包括模块化机械设计、集成线路滤波器、集成制动电阻器、集成电子重启抑制器以及可防止环境影响的部分涂层电路板。8V1045.001-2支持的插件模块包括CAN接口、Powerlink V2接口、EnDat编码器和正弦增量编码器接口、Hiperface接口、数字I/O模块和模拟I/O模块等几个模块。总共驱动单元上有四个用于插入模块的插槽。驱动器支持连接到三相交流电源。支持的输入电压范围为230 V AC和400 至 480 V AC。400 伏交流电的浪涌电流值为 7 安培。

在运行期间，8V1045.001-2驱动器以热量形式散发 180 瓦。允许的安装方向包括垂直悬挂和水平悬挂（面朝上）。标称安装标高为 0 至 500 米。最大安装海拔为2000米。驱动器外壳的防护等级为IP20。标称工作温度范围为0 到 40 摄氏度。最高工作温度为 55 摄氏度。储存温度范围为-25至55摄氏度，运输温度范围为-25至70摄氏度。操作相对湿度范围为 5% 至 85%，存储范围为 5% 至 95%。8V1045.001-2 的重量为4.1 公斤. 驱动单元的尺寸为 375 x 235.5 x 70.5 毫米。只有经过专业培训和合格的人员才能处理驱动器及相关设备和附件

B &R 8V1045.00-2是一款ACOPOS 伺服驱动器。该驱动器设计用于电压范围为400 至 480 伏交流电的三相交流电输入。驱动器的额定输出功率为2 千瓦，额定输出电流为 2.2 安培。8V1045.00-2 是一款模块化驱动器，带有四个用于可选硬件模块的插槽。允许的电源形式为 TT 和 TN。交流输入的允许偏差为 ±10%。驱动器支持的线路频率为 50 赫兹和 60 赫兹，允许偏差为 4%。驱动器可以处理的最大安装负载为 5 kVA。400 伏交流电的启动电流为 7 安培。驱动单元的开启时间间隔大于 10 秒。集成的线路过滤器是驱动单元的一部分。

8V1045.00-2 集成线路滤波器  集成制动电阻器

【英文介绍】

The B&R 8V1045.001-2 is an AC servo drive. It is designed for industrial motor control applications. The motor is part of the ACOPOS product line. General features of ACOPOS drivers include a modular mechanical design, an integrated line filter, an integrated brake resistor, an integrated electronic restart suppressor, and a partially coated circuit board that protects against environmental impacts. 8V1045.001-2 supports plug-in modules including CAN interface, Powerlink V2 interface, EnDat encoder and sine incremental encoder interface, Hiperface interface, digital I/O module and analog I/O module and other modules. In total, there are four slots on the drive unit for inserting the module. The driver supports connection to a three-phase AC power supply. The supported input voltage range is 230 V AC and 400 to 480 V AC. The surge current value of 400 volts AC is 7 amps.

During operation, the 8V1045.001-2 drive emits 180 watts in the form of heat. Allowable mounting directions include vertical suspension and horizontal suspension (face up). Nominal installation elevation is 0 to 500 meters. The maximum installation elevation is 2000 meters. The drive housing is IP20 protected. Nominal operating temperature range is 0 to 40 degrees Celsius. The maximum operating temperature is 55 degrees Celsius. The storage temperature range is -25 to 55 degrees Celsius and the transport temperature range is -25 to 70 degrees Celsius. Operating relative humidity ranges from 5% to 85% and storage ranges from 5% to 95%. The 8V1045.001-2 weighs 4.1 kg. The dimensions of the drive unit are 375 x 235.5 x 70.5 mm. Only professionally trained and qualified personnel should handle drives and associated equipment and accessories

The B&R 8V1045.00-2 is an ACOPOS servo drive. The driver is designed for three-phase AC input with a voltage range of 400 to 480 volts AC. The driver has a rated output power of 2 kW and a rated output current of 2.2 amps. The 8V1045.00-2 is a modular drive with four slots for optional hardware modules. The power supply formats are TT and TN. The allowable deviation of AC input is ±10%. The driver supports line frequencies of 50 Hz and 60 Hz, and allows a deviation of 4%. The maximum installation load the drive can handle is 5 kVA. The starting current of 400 volts AC is 7 amps. The start interval of the driver unit is greater than 10 seconds. The integrated line filter is part of the drive unit.

8V1045.00-2 集成线路滤波器  集成制动电阻器
