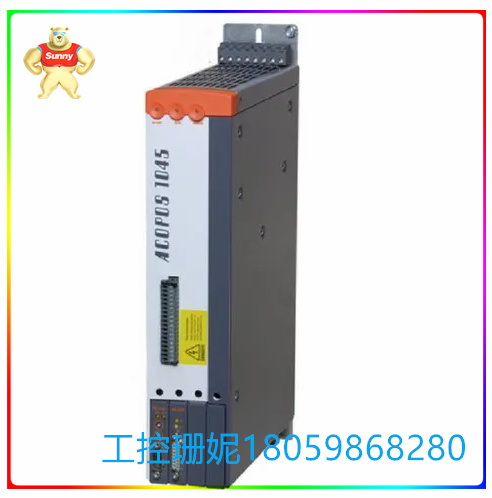

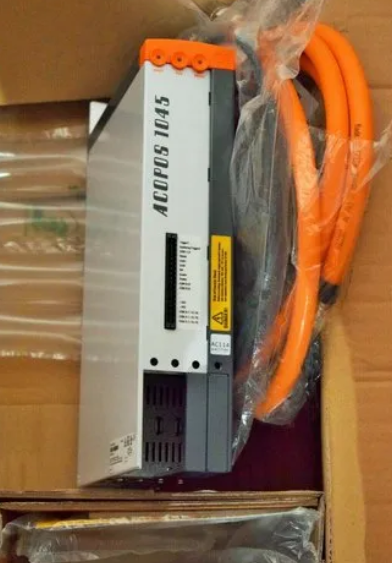

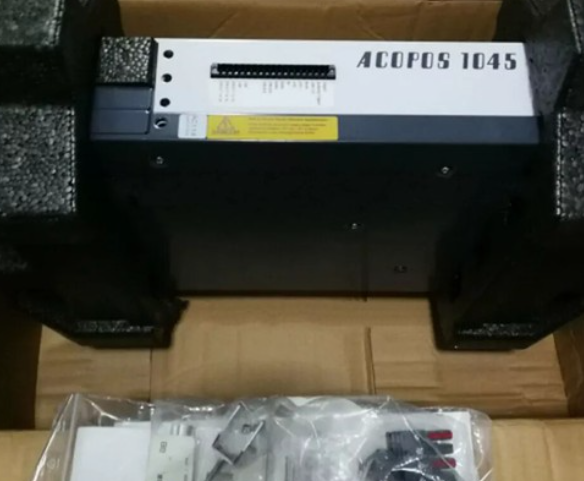

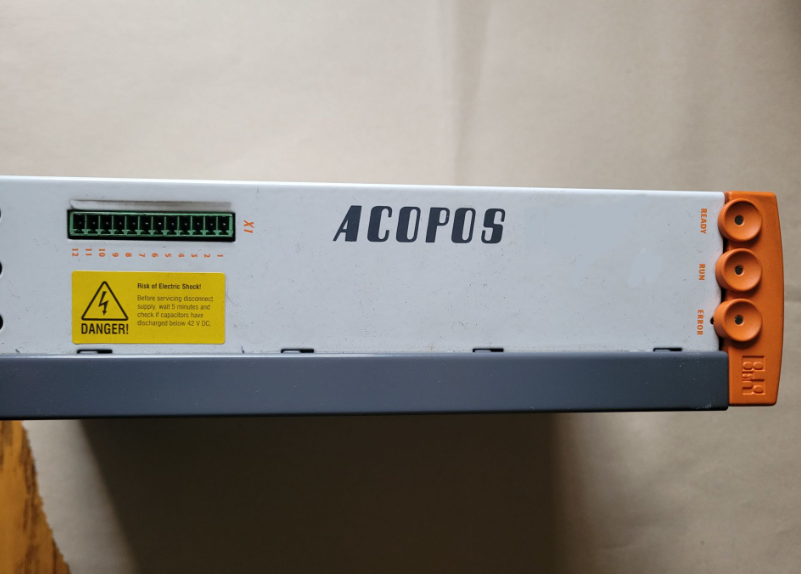

ACOPOS 1045伺服驱动器 高性能伺服驱动设计

☆型号：ACOPOS 1045伺服驱动器 高性能伺服驱动设计

【产品详情】

高性能伺服驱动设计

ACOPOS伺服驱动系列是贝加莱完美自动化解决方案中的一个重要组成部分。针对行业的专用功能以及直观的工具是缩短开发时间的前提。

评价自动化解决方案的一个重要衡量标准是在应用程序或者生产过程发生瞬变时既快速又精确地产生事件响应。ACOPOS伺服驱动具备这一特性，它在运行时扫描时间非常短且通信循环周期仅400μs，控制循环仅50μs。

在工业环境中要保证正确操作就必须充分重视电磁兼容EMC。除了标准中规定的测试以外，还必须在恶劣的环境中进行现场测试。测试结果充分证明了在实验室和实际操作中优异的测试指标。设备中还内置了CE指南规定的滤波器。

计算机辅助模型运用已测量的电流和温度预测出整个系统的热能。从而实现了最大化系统性能。

ACOPOS伺服驱动会用到电机嵌入式参数芯片上的信息，这些信息包括相关的机电一体化数据。因此不再需要繁复且容易出错的人工设置参数，启动时间也大大减少。在维护期间，提供相关的必要数据并快速定位事故原因。

ACOPOS伺服系列也提供带部分涂层的电路板。这些产品具有相同的规格，但在防尘，防潮等环境影响下更加强大。

必要的I/O点数是ACOPOS伺服驱动标准设备中的一部分，用于操作一个伺服轴。用户在执行高精度测量或者印标控制的任务时，提供2个触发式输入。

进一步配置ACOPOS伺服驱动时，使用插入模块满足特定的应用需求。插入式模块用于连接网络中其他的驱动器，控制器和显示设备，也可以连接编码器，传感器和执行机构。此外，控制器和驱动集成的CPU模块也可用于基于驱动的自动化。

☆型号：ACOPOS 1045伺服驱动器 高性能伺服驱动设计

【英文介绍】

High performance servo drive design

The ACOPOS servo drive family is an integral part of B&R's perfect automation solution. Industry-specific features and intuitive tools are prerequisites for reducing development time.

An important metric for evaluating automation solutions is the ability to quickly and accurately generate event responses when transients occur in an application or production process. The ACOPOS servo drive has this feature, with a very short scan time at runtime and a communication cycle of only 400μs and a control cycle of only 50μs.

In order to ensure the correct operation in the industrial environment, we must pay full attention to electromagnetic compatibility EMC. In addition to the tests specified in the standard, field tests must be carried out in harsh environments. The test results fully prove the excellent test indexes in the laboratory and in the actual operation. The filter specified in the CE Guide is also built into the device.

The computer aided model uses the measured current and temperature to predict the thermal energy of the entire system. This maximizes system performance.

The ACOPOS servo drive uses information on the motor embedded parameter chip, which includes relevant mechatronics data. As a result, cumbersome and error-prone manual parameter setting is no longer required, and startup time is greatly reduced. During maintenance, provide the necessary data and quickly locate the cause of the accident.

The ACOPOS servo family is also available with partially coated circuit boards. These products have the same specifications, but are more powerful against environmental impacts such as dust and moisture.

The necessary I/O points are part of the ACOPOS servo drive standard equipment for operating a servo shaft. The user provides 2 trigger inputs when performing high-precision measurement or marking control tasks.

When further configuring ACOPOS servo drivers, insert modules are used to meet specific application requirements. Plug-in modules are used to connect other drivers, controllers and display devices in the network, as well as encoders, sensors and actuators. In addition, controller and driver integrated CPU modules can also be used for driver-based automation.

☆型号：ACOPOS 1045伺服驱动器 高性能伺服驱动设计
