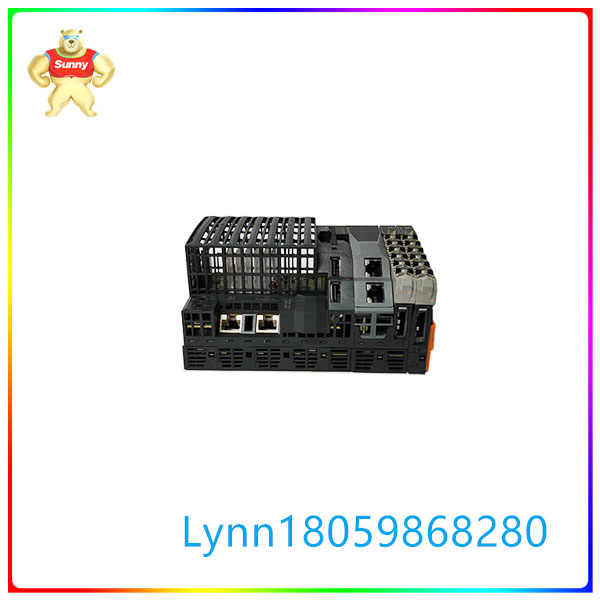

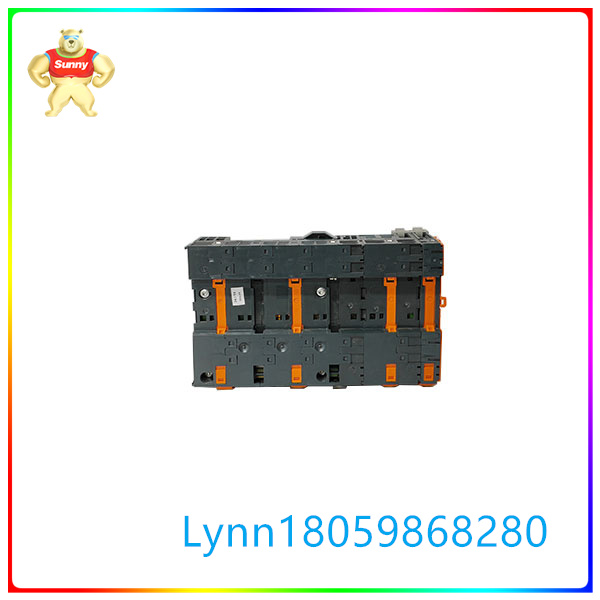

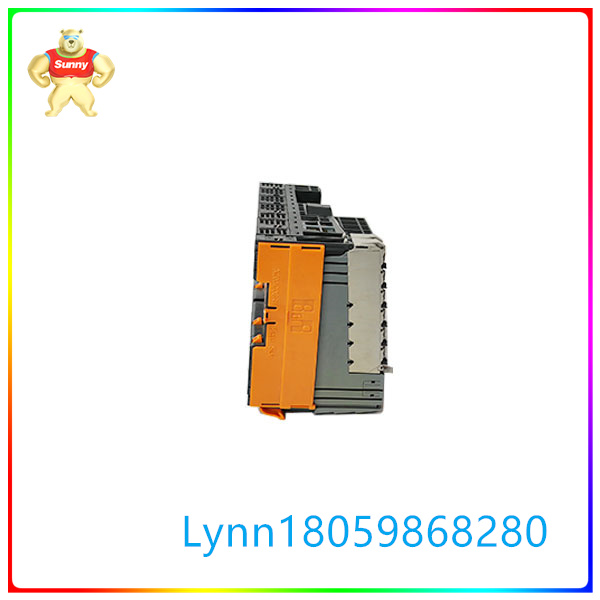

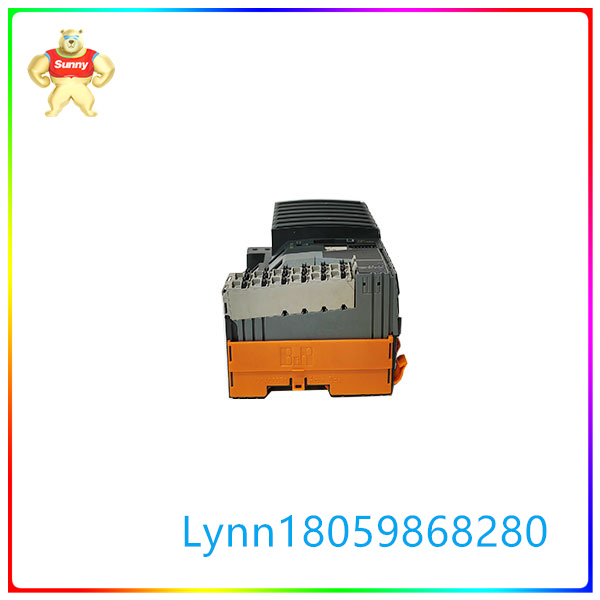

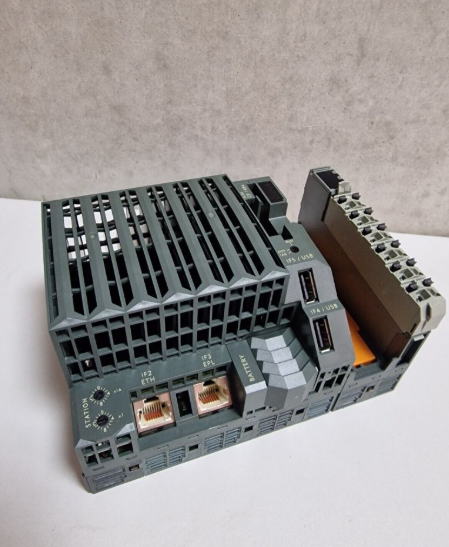

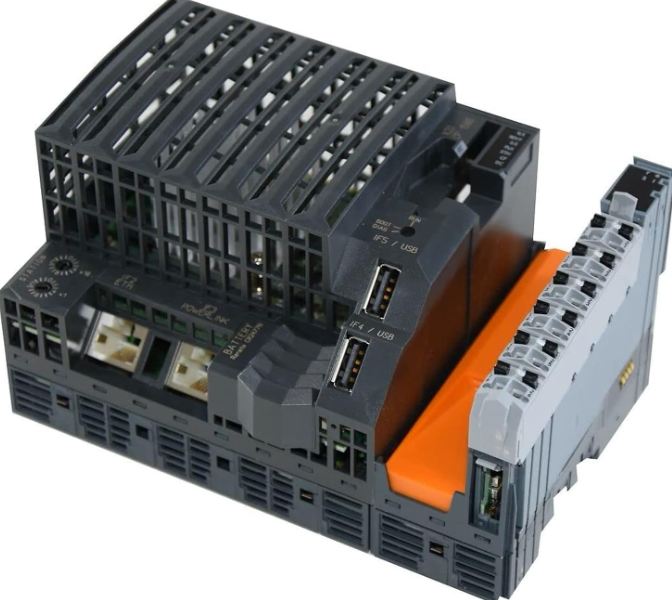

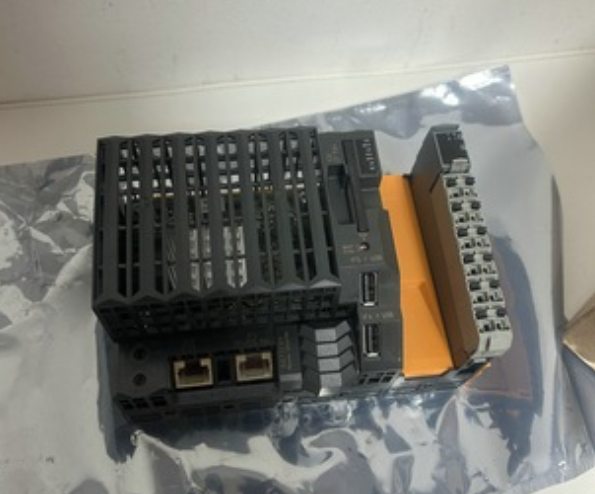

X20CP1586 CPU模块 板载以太网

☆型号：X20CP1586 CPU模块 板载以太网

【产品详情】

物料编号：

X20CP1586

描述：

Intel Atom 1.6 GHz 处理器，带有额外的 I/O 处理器

板载以太网、带轮询响应链的 POWERLINK 和 USB

1 个用于模块化接口扩展的插槽

CompactFlash 作为可移动应用程序内存

512 MB DDR2 内存

无风扇

X20CP1586 是 X20 系统的强大控制器。该控制器对于需要较短循环时间、必须处理大量数据或执行浮点运算的应用特别有用。它的时钟频率为 1.6 GHz，并配备了 512 MB DDR2 SDRAM。

USB、以太网、POWERLINK和可移动CompactFlash均为标准配置。标准以太网接口能够处理千兆位范围内的通信。为了获得更高的实时网络性能，板载POWERLINK接口支持轮询响应链模式（PRC）。

该控制器配有一个插槽，可用于 X20 通信模块。通过使用通信模块，可以很容易地将各种总线和网络系统集成到 X20 系统中。

☆型号：X20CP1586 CPU模块 板载以太网

【英文介绍】

Material Number:

X20CP1586

Description:

Intel Atom 1.6GHz processor with additional I/O processor

Onboard Ethernet, POWERLINK with polling response chain, and USB

1 slot for modular interface expansion

CompactFlash as removable application memory

512 MB DDR2 memory

fanless

The X20CP1586 is a powerful controller for X20 systems. The controller is especially useful for applications that require short loop times, must process large amounts of data, or perform floating-point operations. It has a clock frequency of 1.6 GHz and is equipped with 512 MB DDR2 SDRAM.

USB, Ethernet, POWERLINK, and removable CompactFlash are standard. Standard Ethernet interfaces are capable of handling communications in the gigabit range. For higher real-time network performance, the onboard POWERLINK interface supports polling Response chain mode (PRC).

The controller is equipped with a slot for the X20 communication module. By using the communication module, various bus and network systems can be easily integrated into the X20 system.
