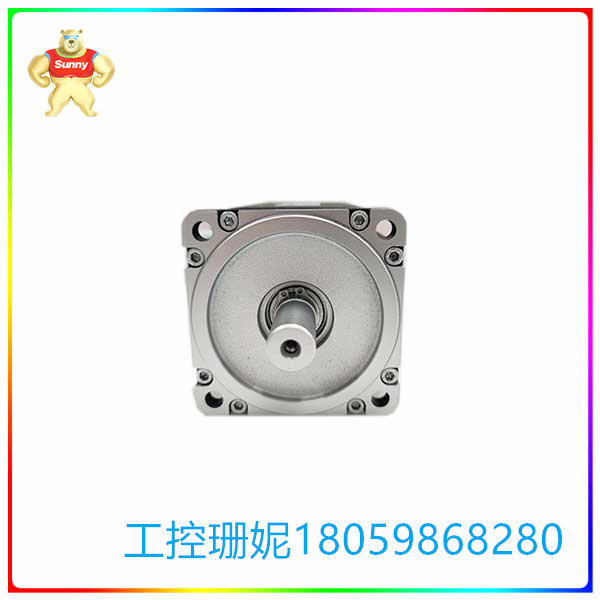

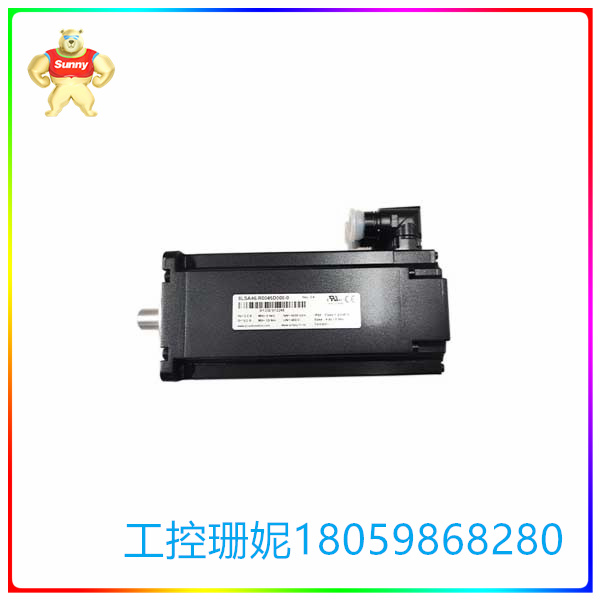

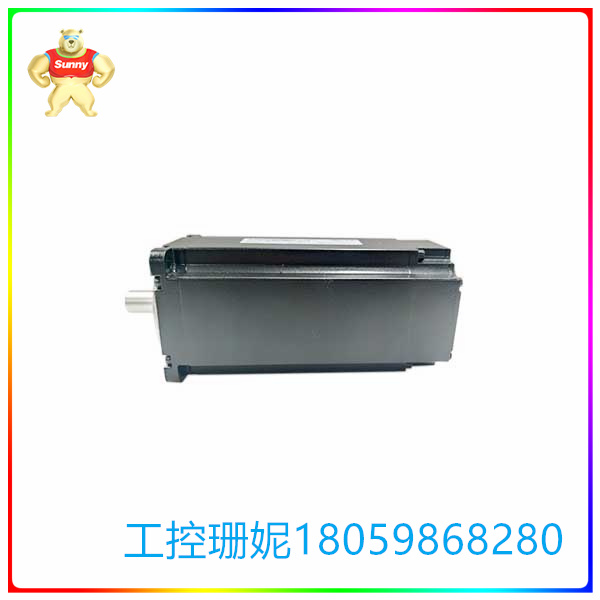

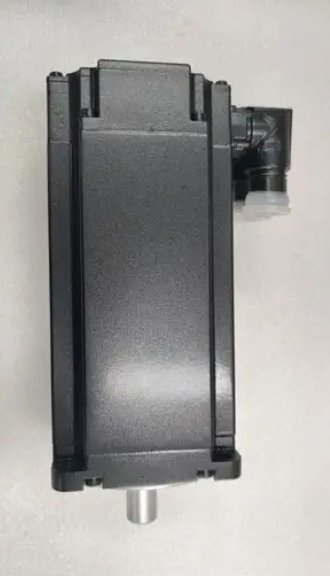

8LSA46.R0045D000-0 同步电机 32线多圈

☆型号：8LSA46.R0045D000-0 同步电机 32线多圈

【产品详情】

8LSA46.R0045D000-0 B&R技术规格

同步电机，极对数:5对，标称速度:3000 rpm失速扭矩:10.000 Nm，无制动器，光滑轴，倾斜连接器(旋转)，中心直径95 mm，j6 fit(自冷却，A型结构)，IP64防护，无油封560 VDC，制动器保持扭矩:0.00 Nm，EB ind。32线多圈V2

伺服电机可以控制速度，位置精度非常准确，可以将电压信号转化为转矩和转速以驱动控制对象。伺服电机转子转速受输入信号控制，并能快速反应，在自动控制系统中，用作执行元件，且具有机电时间常数小、线性度高等特性，可把所收到的电信号转换成电动机轴上的角位移或角速度输出。分为直流和交流伺服电动机两大类，其主要特点是，当信号电压为零时无自转现象，转速随着转矩的增加而匀速下降。

☆型号：8LSA46.R0045D000-0 同步电机 32线多圈

【英文介绍】

8LSA46.R0045D000-0 B&R Technical specifications

Synchronous motor, number of poles :5 pairs, nominal speed :3000 rpm stall torque :10.000 Nm, no brake, smooth shaft, tilt connector (rotation), center diameter of 95 mm, j6 fit(self-cooling, Type A construction), IP64 protection, no oil seal 560 VDC, brake holding torque :0.00 Nm, Eb-ind. 32 wire multi-turn V2

The servo motor can control the speed, the position accuracy is very accurate, and the voltage signal can be converted into torque and speed to drive the control object. Servo motor rotor speed is controlled by the input signal, and can react quickly, in the automatic control system, used as an executive component, and has a small electromechanical time constant, high linearity characteristics, the received electrical signal can be converted into the angular displacement or angular speed output on the motor shaft. Divided into DC and AC servomotor two categories, its main feature is that when the signal voltage is zero, there is no rotation phenomenon, and the speed decreases with the increase of torque.

☆型号：8LSA46.R0045D000-0 同步电机 32线多圈
