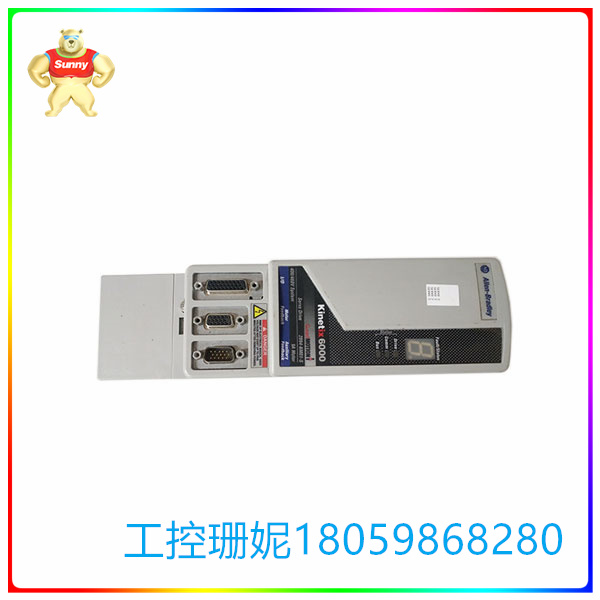

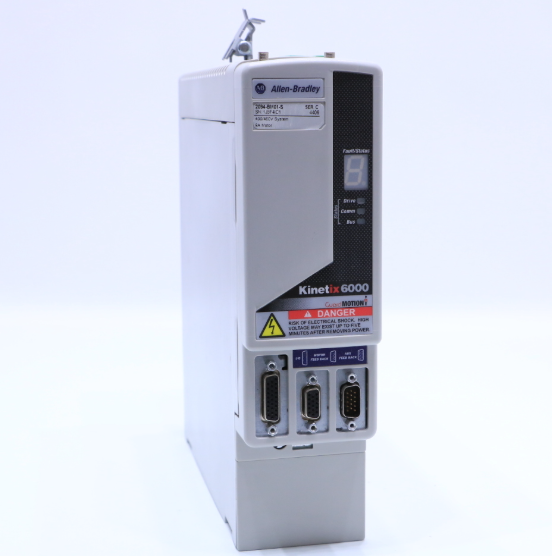

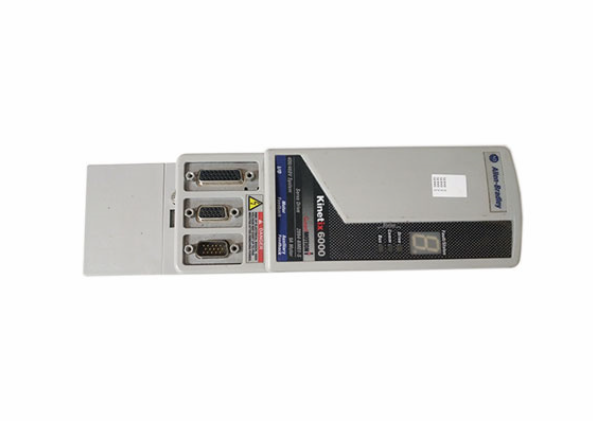

2094-BM01-S/C 轴模块 具有集成分流器

☆型号：2094-BM01-S/C 轴模块 具有集成分流器

【产品详情】

2094-BM01-S 是一款 400VAC 级轴模块，A 系列驱动器的连续电流为 6.1 A，峰值电流为 9.2A，B 系列和 C 系列驱动器的连续电流为 15.3 A，连续输出功率为 3.9 kW。它具有 98% 的效率和对称 200,000 A （rms） 的短路额定电流。它具有集成分流器，连续功率为 50W，峰值功率为 5.6 kW。该模块的内部分流电阻的电阻值为 115 欧姆。

该模块的工作温度要求为 0...50 °C （32...122 °F），相对湿度为 5...95% 非冷凝。它也可以在 1000 米（3281 英尺）的高度运行而不会降额，在 3000 米（9843 英尺）的高度下运行，具有降额功能。该模块可接受的振动范围为 5...55 Hz @ 0.35 mm （0.014 in.） 双振幅，连续位移;55...500 Hz @ 2.0 g 峰值恒定加速度，而冲击额定值为 15 g 在 11 ms 半正弦脉冲内。

2094-BM01-S 轴模块具有增强的系统性能和操作安全性。其安全扭矩关闭功能可防止电路跳闸时重新启动，从而提高生产率，同时减少机器停机时间。2094-BM01-S 通过了 ISO 13849-1 PLe/SIL3 认证，需要外部安全继电器才能满足 EN954-1 3 类工业标准。安全速度监控允许用户在不关闭整台机器的情况下监控和降低应用速度以执行工作。该驱动器还具有一个多圈绝对值编码器，可在电源故障期间保持设备位置。2094-BM01-S 的峰值增强配置可处理需要在有限时间内快速加速和减速的运动应用。这减少了所需的轴模块数量，从而减少了面板空间要求

☆型号：2094-BM01-S/C 轴模块 具有集成分流器

【英文介绍】

The 2094-BM01-S is A 400VAC class shaft module with 6.1A continuous current and 9.2A peak current for A-series drivers, 15.3A continuous current for B-series and C-series drivers, and 3.9 kW continuous output power. It has 98% efficiency and A symmetrical 200,000 A (rms) short-circuit current rating. It has an integrated shunt with a continuous power of 50W and a peak power of 5.6kW. The internal shunt resistor of the module has a resistance value of 115 ohms.

The module's operating temperature requirement is 0... 50 °C (32... 122 °F) with a relative humidity of 5... 95% non-condensing. It can also operate at a height of 1,000 meters (3,281 ft) without derating and at a height of 3,000 meters (9,843 ft) with derating. The acceptable vibration range of the module is 5... 55 Hz@0.35mm (0.014 in.) double amplitude, continuous displacement; 55... 500 Hz @ 2.0g peak constant acceleration, while the impact rating is 15 g in 11 ms half sinusoidal pulses.

The 2094-BM01-S shaft module features enhanced system performance and operational safety. Its safe torque off function prevents a restart in the event of a circuit trip, thereby increasing productivity while reducing machine downtime. The 2094-BM01-S is ISO 13849-1 PLe/SIL3 certified and requires an external safety relay to meet the EN954-1 Category 3 industry standard. Safe speed monitoring allows users to monitor and slow down applications to perform work without shutting down the entire machine. The drive also has a multi-turn absolute encoder that holds the device in place during power failures. The peak enhancement configuration of the 2094-BM01-S handles sports applications that require rapid acceleration and deceleration in limited time. This reduces the number of shaft modules required, thereby reducing panel space requirements

☆型号：2094-BM01-S/C 轴模块 具有集成分流器
