2098-DSD-030-SE/B 驱动模块 集成了串行实时通信系统

☆型号：2098-DSD-030-SE/B 驱动模块 集成了串行实时通信系统

【产品详情】

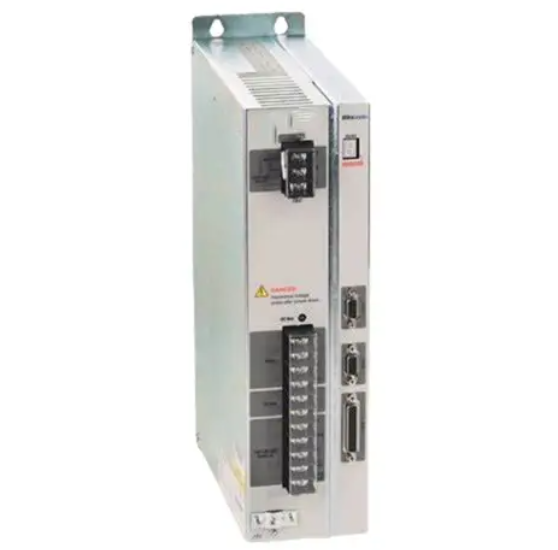

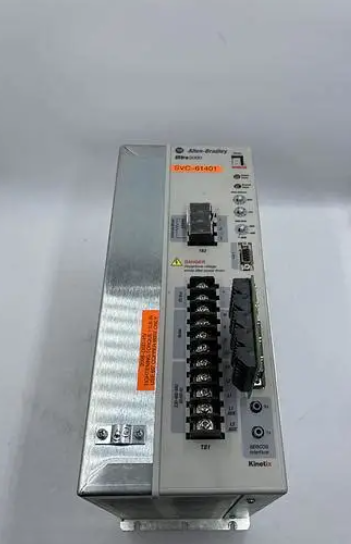

Allen-Bradley 2098-DSD-030-SE 是一款 Ultra 3000 驱动器，集成了串行实时通信系统 （SERCOS） 支持。该驱动器是 2098 数字伺服驱动器产品系列的一部分。该驱动器由外部电源供电tage 为 100-240VAC，1 相，频率为 47-63 Hz。它的标称输入电流为 28 安培，最大浪涌电流为 230 伏（0 包）时为 50 安培。

2098-DSD-030-SE 的辅助交流输入电流为 1.0 A，额定值为 115V 交流 （rms）;0.5 A 用于 230V 交流 （rms） 标称值;115VAC（0包）最大浪涌为47 A，230V交流（0包）最大浪涌为95 A。它具有 35 欧姆的内分流电阻和 452VDC 的总线过压。

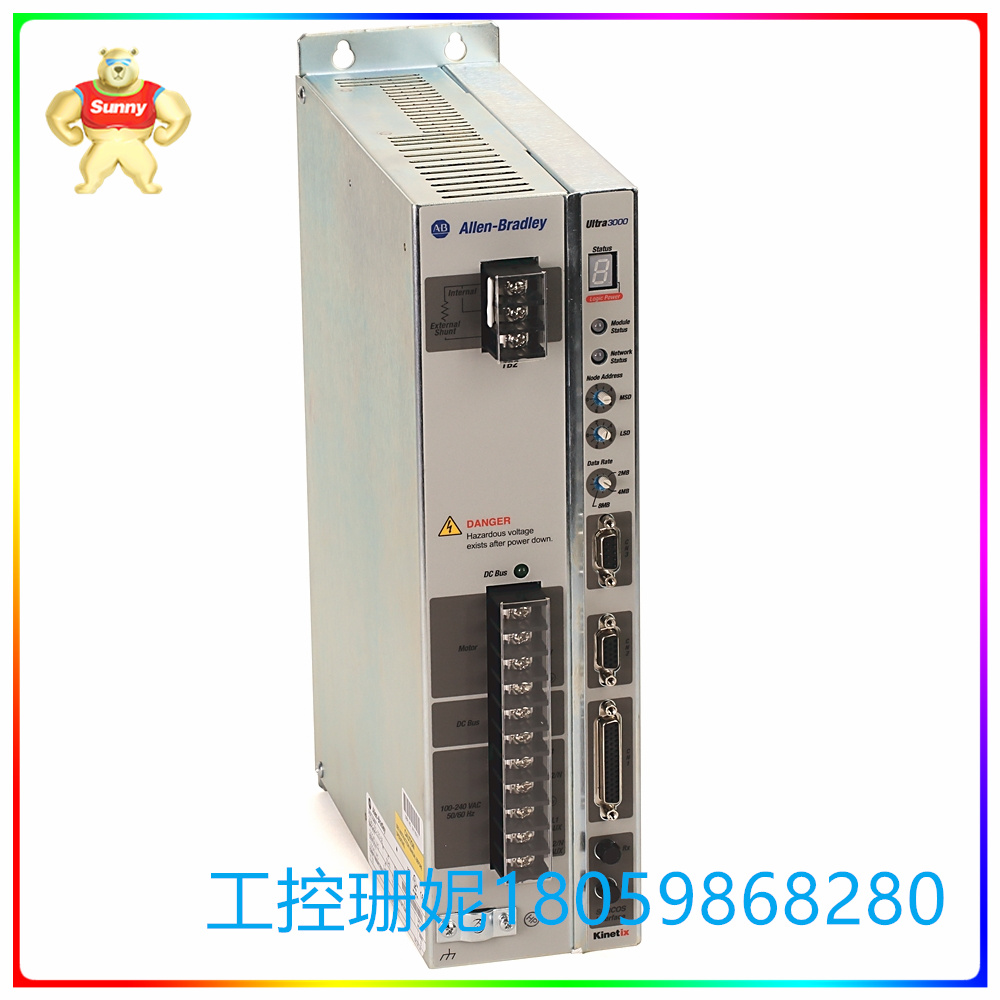

这款 Ultra 3000 硬盘配有各种连接器和旋转开关，用于设置该硬盘的操作。它有CN1连接器，这是一个44针接口，用于I/O接口;CN2 连接器是用于电机反馈连接器的 15 针接口，CN3 连接器用于串行通信。模块的前面板还安装了三 （3） 个旋转开关，其中两 （2） 个开关用于设置节点地址，一 （1） 个开关用于配置驱动器的数据速率。此驱动器还具有模块状态 LED，用于报告驱动器模块的整体状态和网络状态 LED，用于描述设备的通信活动。它还具有七段显示屏，可显示与模块当前运行状态相关的代码以及位于驱动模块底部的 SERCOS 接口。

2098-DSD-030-SE 驱动器中使用的 SERCOS 光纤电缆不受外部噪音/振动的影响，这使其成为出色的绝缘体。7段显示终端提供有关当前过程的信息。增强的控制有助于实现 Ultra3000 驱动系统的独立功能。现场可编程存储器有助于某些操作，这些操作需要支持存储器的指令才能与远程设备连接。在断电的情况下，2098-DSD-030-SE 可以选择提供外部逻辑电源以保持其位置。

 ☆型号：2098-DSD-030-SE/B 驱动模块 集成了串行实时通信系统

【英文介绍】

Allen-Bradley 2098-DSD-030-SE is an Ultra 3000 driver with integrated Serial Real-time Communication System (SERCOS) support. The drive is part of the 2098 digital servo drive product family. The driver is powered by an external power source with a tage of 100-240VAC, 1 phase, and a frequency of 47-63 Hz. It has a nominal input current of 28 amps and a maximum surge current of 50 amps at 230 volts (0 packets).

The 2098-DSD-030-SE has an auxiliary AC input current of 1.0 A and is rated 115V AC (rms); 0.5A for 230V AC (rms) nominal values; The maximum surge is 47 A for 115VAC (0 packs) and 95 A for 230V AC (0 packs). It has an internal shunt resistance of 35 ohms and a bus overvoltage of 452VDC.

This Ultra 3000 hard drive comes with a variety of connectors and rotary switches for setting the operation of this hard drive. It has a CN1 connector, which is a 44-pin interface for the I/O interface; The CN2 connector is a 15-pin interface for the motor feedback connector, and the CN3 connector is used for serial communication. Three (3) rotary switches are also installed on the front panel of the module, of which two (2) switches are used to set the node address and one (1) switch is used to configure the data rate of the driver. This driver also has a module status LED for reporting the overall status of the driver module and a network status LED for describing the communication activity of the device. It also has a seven-segment display that shows the code related to the current operating state of the module and the SERCOS interface located at the bottom of the driver module.

The SERCOS fiber optic cable used in the 2098-DSD-030-SE driver is not affected by external noise/vibration, which makes it an excellent insulator. The 7-segment display terminal provides information about the current process. Enhanced control facilitates the independent functionality of the Ultra3000 drive system. Field programmable memory facilitates certain operations that require memory-enabled instructions to connect to remote devices. In case of power failure, the 2098-DSD-030-SE has the option to provide external logic power to maintain its position.

 ☆型号：2098-DSD-030-SE/B 驱动模块 集成了串行实时通信系统
