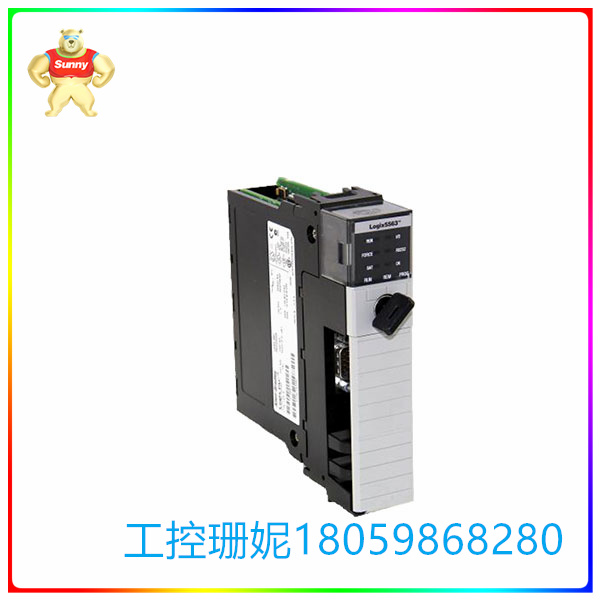

1756-L63/B 控制器 基于机箱的控制器

☆型号：1756-L63/B 控制器 基于机箱的控制器

【产品详情】

Allen-Bradley 1756-L61 是一款 ControlLogix 控制器。它具有 2 MB 用户存储器和 478 KB I/O 存储器，以及可选的 128 MB 非易失性存储存储器，使用 1784-CF128 CompactFlash 存储卡。它是基于机箱的控制器，可以放置在 1756 ControlLogix 机箱的任何可用插槽中。此控制器的兼容机箱为 1756-A4、1756-A7、1756-A10、1756-A13 和 1756-A17。它采用开放式机箱，最多可支持 250 个控制器连接。它还具有内置的 RS-232 串行通信端口。RS232 端口支持的协议包括 DF1 全双工/半双工、ASCII、DF1 无线电调制解调器、Modbus via logic 和 DH-485。

它的最大数字 I/O 为 128,000，最大模拟 I/O 为 4,000，最大总 I/O 为 128,000。1756-L61 的控制器任务包括 32 个任务、每个任务 100 个程序和事件任务：所有事件触发器。1756-L61 具有多种通信选项，例如 ControlNet、Data Highway Plus、EtherNet/IP、DeviceNet、SynchLink、远程 I/O 以及第三方过程和设备网络。1756-L61 控制器的电流消耗在 5.1V DC 时为 1200 mA，在 24V DC 时为 14 mA。功耗为 3.5 W，散热为 11.9 BTU/hr。它还具有 30V 的连续隔离电压，并在 720V DC 下测试了 60 秒。它的工作温度为 0 至 60 摄氏度，存储温度为 -40 至 85 摄氏度，周围最高气温为 60 摄氏度。相对湿度在 5% 至 95%（非冷凝）之间，在 10 至 500 Hz 时振动为 2 g，操作和非操作冲击分别为 30 g 和 50 g。

Allen-Bradley 1756-L61 是一款 ControlLogix 控制器，具有集成的 2MB 用户内存，使控制器能够处理多达 128,000 个离散和 4000 个模拟 I/O。该控制器具有集成的 RS232 通信端口，可通过逻辑配置为 ASCII、DF1 全/半双工、DF1 无线电调制解调器、DH-485 和 Modbus。

该控制器支持独立和分布式 I/O 应用程序的实现。虽然该模块允许 250 个连接。根据所使用的通信模块，网络连接可能会有所不同。它还支持冗余，以提高系统可用性，这在关键系统中通常是必需的。

☆型号：1756-L63/B 控制器 基于机箱的控制器

【英文介绍】

The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2 MB of user memory and 478 KB of I/O memory, as well as an optional 128 MB of non-volatile storage memory, using a 1784-CF128 CompactFlash memory card. It is a chassis based controller that can be placed in any available slot in the 1756 ControlLogix chassis. Compatible enclosures for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It uses an open chassis and can support up to 250 controller connections. It also has a built-in RS-232 serial communication port. Protocols supported by the RS232 port include DF1 full duplex/half duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.

It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. The controller tasks of the 1756-L61 consist of 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has a variety of communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, remote I/O, and third-party process and device networking. The current consumption of the 1756-L61 controller is 1200 mA at 5.1V DC and 14 mA at 24V DC. Power consumption is 3.5W and heat dissipation is 11.9BTU /hr. It also has a continuous isolation voltage of 30V and was tested at 720V DC for 60 seconds. It has an operating temperature of 0 to 60 degrees Celsius, a storage temperature of -40 to 85 degrees Celsius, and a maximum ambient temperature of 60 degrees Celsius. Relative humidity is between 5% and 95% (non-condensing), vibration is 2 g at 10 to 500 Hz, and operating and non-operating shocks are 30 g and 50 g respectively.

The Allen-Bradley 1756-L61 is a ControlLogix controller with an integrated 2MB of user memory that enables the controller to handle up to 128,000 discrete and 4,000 analog I/ OS. The controller has an integrated RS232 communication port and can be logically configured for ASCII, DF1 full/half duplex, DF1 radio modem, DH-485 and Modbus.

The controller supports the implementation of independent and distributed I/O applications. Although the module allows 250 connections. Depending on the communication module used, the network connection may vary. It also supports redundancy to improve system availability, which is often required in critical systems.

☆型号：1756-L63/B 控制器 基于机箱的控制器
