5069-IY4 通用模拟输入模块 兼容各种输入信号

☆型号：5069-IY4 通用模拟输入模块 兼容各种输入信号

【产品详情】

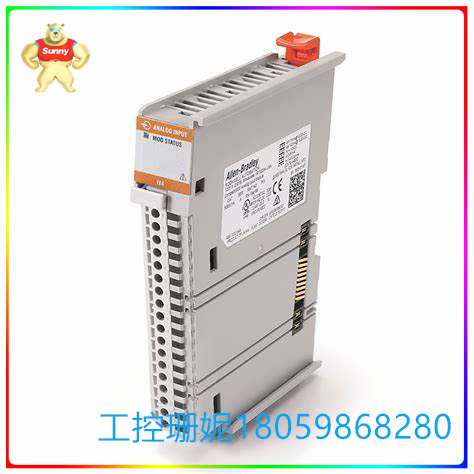

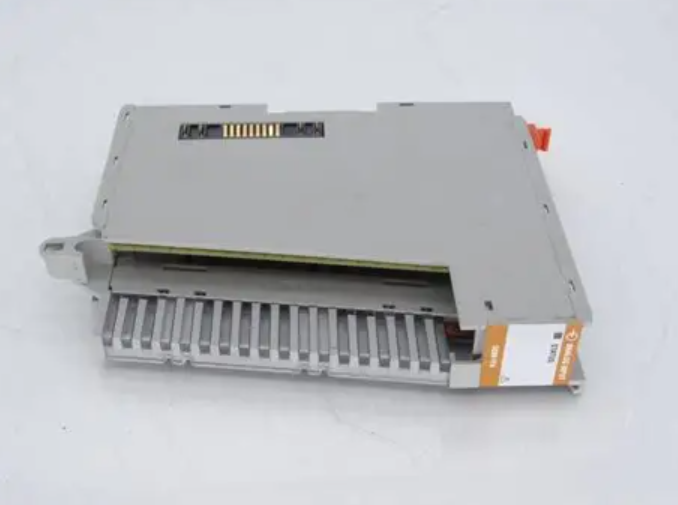

Allen-Bradley 5069-IY4 是一款通用模拟输入模块，是 Compact 500 I/O 模块的一部分。该模块主要具有四 （4） 个差分输入通道，兼容各种输入信号，例如电压、电流、电阻、电阻温度检测器 （RTD）、毫伏和热电偶信号和传感器。

当配置为电压输入时，该模块支持 ±10V、0-10V 和 0-5VDC 等电压范围。同样，当配置为毫伏输入时，可接受的输入范围为 +/- 100 mV。当设置为接受电流输入时，该模块兼容 0-20 mA 和 4-20 mA 输入信号。此外，对于电阻输入，该模块可容纳 1-500 °、2-1000 °、4-2000 °C和 8-4000 ？电阻信号。

对于工业传感器输入，5069-IY4 还可以配置为直接与电阻温度检测器 （RTD） 和热电偶传感器连接。兼容的RTD传感器包括100、200、500、1000？铂金，alpha=385;100, 200, 500, 1000 ?铂金，alpha=3916;120 ?镍，alpha=672;100, 120, 200, 500 ?镍，alpha=618 和 10 ？铜 427.对于热电偶传感器，该模块与 B、C、D、E、J、K、L （TXK/XK）、N、R、S 和 T 型热电偶兼容，

模块电源总线，或MOD电源总线直通电压范围和正常电压范围tage 该模块均为 18-32V DC，最大额定电流为 9.55 A，最大电流为 75 mA。SA 或传感器执行器最大现场电源电流为 100 mA，现场电源电压范围为 18-32V DC，直通电压范围为 0-32V DC，最大额定电流为 9.95 A。5069-IY4模块在电压模式和热电偶/毫伏模式下的最大功耗均为1.8 W，在电流模式和RTD模式下均为2.1 W。在电压和热电偶/毫伏模式下，其最大功耗均为6.1 BTU/小时，在电流和RTD模式下均为7.2 BTU/小时。该模块已在工厂校准，但是，可以根据需要配置校准。状态指示灯包括 4 个黄色和红色 I/O 状态 LED、1 个绿色和红色模块状态 LED 以及 2 个黄色和红色 CJC 状态 LED。

☆型号：5069-IY4 通用模拟输入模块 兼容各种输入信号

【英文介绍】

The Allen-Bradley 5069-IY4 is a universal analog input module that is part of the Compact 500 I/O module. The module primarily features four (4) differential input channels compatible with various input signals such as voltage, current, resistance, resistance temperature detector (RTD), millivolt and thermocouple signals and sensors.

When configured as a voltage input, the module supports voltage ranges of ±10V, 0-10V, and 0-5VDC. Similarly, when configured with millivolt input, the acceptable input range is +/- 100 mV. When set to accept current input, the module is compatible with 0-20 mA and 4-20 mA input signals. In addition, for resistive inputs, the module can accommodate 1-500 °, 2-1000 °, 4-2000 °C and 8-4000 °C. Resistance signal.

For industrial sensor inputs, the 5069-IY4 can also be configured to connect directly to resistance temperature detectors (RTDS) and thermocouple sensors. Compatible RTD sensors include 100, 200, 500, 1000? Platinum, alpha=385; 100, 200, 500, 1,000? Platinum, alpha=3916; 120? Nickel, alpha=672; 100, 120, 200, 500? Nickel, alpha=618 and 10? Copper 427. For thermocouple sensors, the module is compatible with B, C, D, E, J, K, L (TXK/XK), N, R, S and T thermocouples.

Module Power bus, or MOD Power bus through voltage range and Normal voltage Range tage This module is 18-32V DC with a maximum rated current of 9.55A and a maximum current of 75 mA. SA or sensor actuator maximum field supply current is 100 mA, field supply voltage range is 18-32V DC, through voltage range is 0-32V DC, maximum rated current is 9.95A. The 5069-IY4 module has a maximum power consumption of 1.8 W in both voltage mode and thermocouple/millivolt mode, and 2.1 W in both current mode and RTD mode. Its maximum power consumption is 6.1 BTU/ hour in both voltage and thermocouple/millivolt modes, and 7.2 BTU/ hour in both current and RTD modes. The module has been factory calibrated, however, the calibration can be configured as required. The status indicators include four yellow and red I/O status leds, one green and red module status leds, and two yellow and red CJC status leds.
