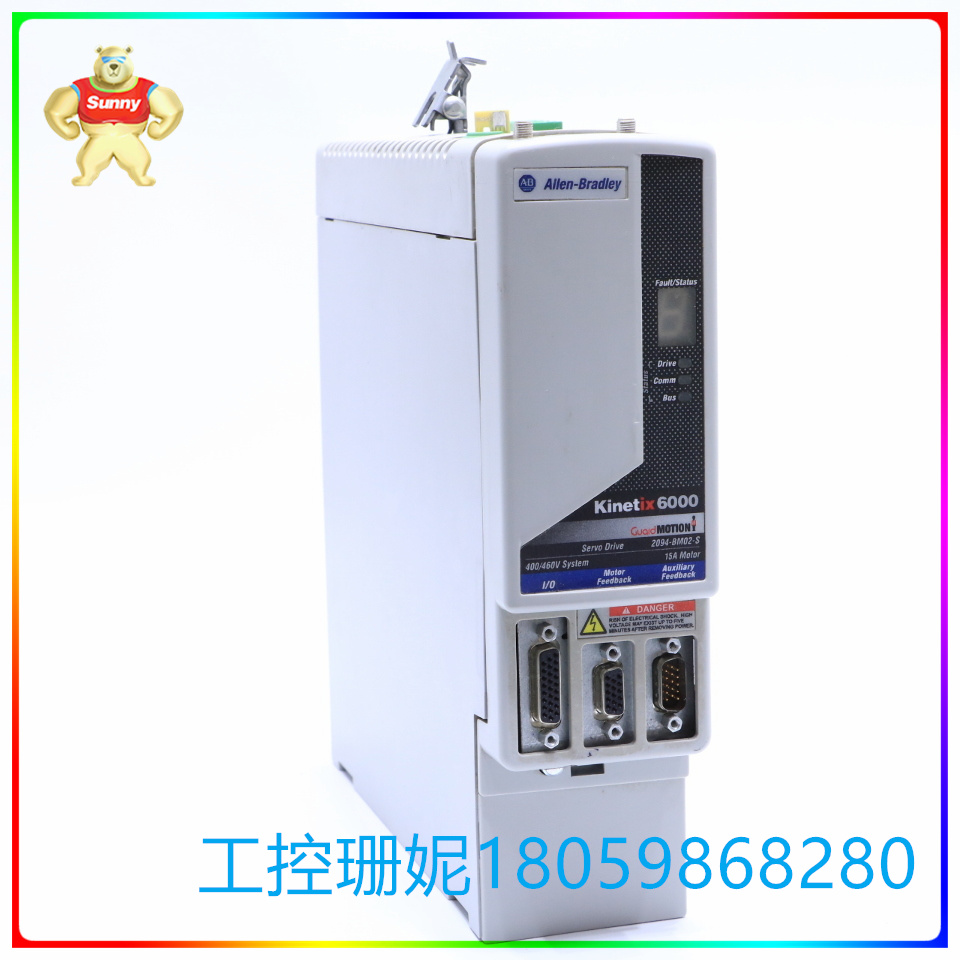

2094-BM02-S/B 集成轴模块 多轴伺服驱动器

☆型号：2094-BM02-S/B  集成轴模块 多轴伺服驱动器

【产品详情】

关于Allen-Bradley 2094-BM02-S多轴伺服驱动器的详细描述，该驱动器是Kinetix 6000多轴驱动伺服系统的一部分。让我们深入分析这段描述，主要从技术规格和功能特点两个方面来了解这款产品。

技术规格：

带宽速度环路频率： 该模块支持500 Hz的带宽速度环路频率，这意味着它可以快速地响应和调整速度指令。

电流环路频率： 它的电流环路频率高达1300 Hz，这有助于精确控制电机的电流，从而优化电机的性能。

电压和电流要求： 标称输入电压为650VDC，连续电流要求（rms）为10.3安培，连续电流（正弦波）0包为14.6安培。这些参数定义了驱动器的工作范围。

峰值增强： 该模块具有峰值增强功能，可以在需要快速加速和减速的应用中提供额外的电流。

效率与对称短路电流额定值： 效率为98%，对称短路电流额定值为200,000安培（rms）。

内分流电阻器： 内分流连续功率为50瓦，峰值功率为5.6 kWatts。

功能特点：

安全功能： 该模块具有集成的安全转矩关闭（STO）安全功能，适用于需要安全完整性等级（SIL）3和性能等级（PLe）的应用。

短路保护： 当发生故障时，功率晶体管控制信号被禁用，在不关闭整个驱动器的情况下消除电机扭矩。这有助于减少生产和能源的浪费，并最大限度地减少停机时间。

编程与测试： Allen-Bradley 2094-BM02-S多轴伺服驱动器在编程后必须进行多次测试，以确保其配置正确且有效。

安装注意事项： 在安装驱动器之前，应在其顶部和底部留出间隙以允许适当的气流，并确保安装柜的深度至少为10.7英寸。

总的来说，Allen-Bradley 2094-BM02-S多轴伺服驱动器是一款高性能、高可靠性的设备，适用于各种需要精确控制和安全保障的应用场景。

☆型号：2094-BM02-S/B  集成轴模块 多轴伺服驱动器

【英文介绍】

A detailed description of the Allen-Bradley 2094-BM2-S multi-axis servo drive, which is part of the Kinetix 6000 multi-axis drive servo system. Let's analyze this description in depth, mainly from two aspects of technical specifications and functional features to understand this product.

Technical specifications:

Bandwidth speed loop frequency: The module supports a bandwidth speed loop frequency of 500 Hz, which means that it can quickly respond to and adjust speed instructions.

Current loop frequency: It has a current loop frequency of up to 1300 Hz, which helps to precisely control the current of the motor, thereby optimizing the performance of the motor.

Voltage and current requirements: Nominal input voltage is 650VDC, continuous current requirement (rms) is 10.3 amps, and continuous current (sine wave) 0 packet is 14.6 amps. These parameters define the operating range of the drive.

Peak Enhancement: This module features peak enhancement to provide additional current in applications that require rapid acceleration and deceleration.

Efficiency and symmetrical short-circuit current rating: 98% efficiency and 200,000 amperes (rms) symmetric short-circuit current rating.

Internal shunt resistor: internal shunt continuous power of 50 watts, peak power of 5.6 kWatts.

Functional features:

Safety Features: The module has an integrated safety Torque Shutdown (STO) safety feature for applications requiring Safety Integrity Level (SIL) 3 and performance level (PLe).

Short-circuit protection: In the event of a fault, the power transistor control signal is disabled, eliminating motor torque without shutting down the entire drive. This helps reduce waste of production and energy and minimizes downtime.

Programming and testing: Allen-Bradley 2094-BM02-S multi-axis servo drives must be tested several times after they are programmed to ensure that they are configured correctly and efficiently.

Installation considerations: Before installing the drive, leave gaps at its top and bottom to allow proper airflow, and ensure that the depth of the mounting cabinet is at least 10.7 inches.

Overall, the Allen-Bradley 2094-BM02-S multi-axis servo drive is a high-performance, highly reliable device for a variety of applications requiring precise control and security.

☆型号：2094-BM02-S/B  集成轴模块 多轴伺服驱动器
