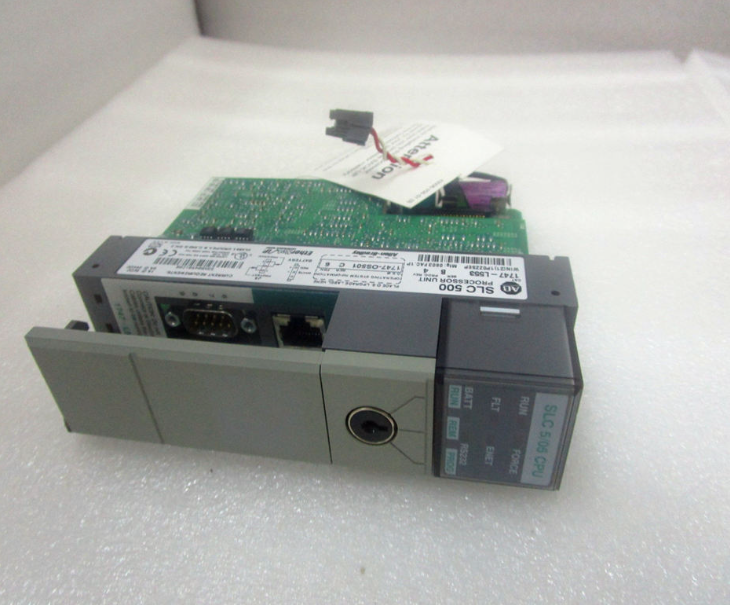

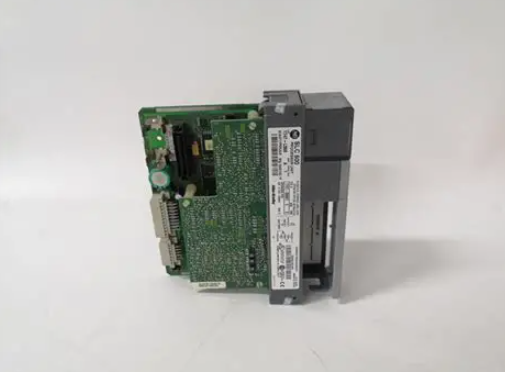

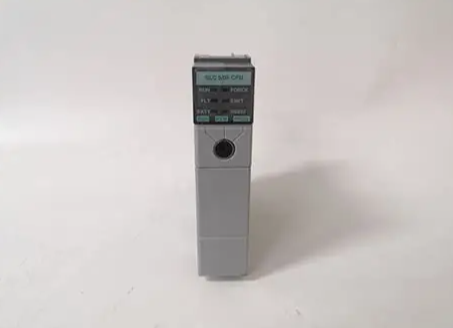

1747-L553/A  可编程逻辑控制器 具有最高的内存

【产品详情】

1747-L553 是属于 SLC 500 可编程逻辑控制器 （PLC） 平台的 SLC 5/05 处理器。该控制器在 SLC 5/05 类别中具有最高的内存，即 64 KB 内存。它集成了 RS32 Sub-D 9 针连接器，用于与本地安装的人机界面 （HMI） 或编程工作站建立点对点通信。它还具有集成以太网，非常适合长距离通信，以 10/100 mbps 的传输速度进行至少 100 米的通信。它也是一次与多个设备建立连接的理想选择。这两 （2） 个端口也可以同时使用，而不会影响处理器的逻辑执行能力。

该控制器是大中型应用的理想选择，其控制要求范围从离散或模拟回路的手动到自动控制，以及利用大量嵌入式指令实现复杂的控制技术。它可用于工厂自动化、过程自动化，甚至用于运动和位置控制要求。

它还能够通过指定的通信协议将消息发送到其他 Allen-Bradley PLC 平台，例如 PLC 5、CompactLogix 和 ControlLogix。虽然集成了以太网和 RS232 端口，但该处理器可以安装远程 I/O （RIO）、Data Highway Plus （DH+）、DeviceNet 和 DH485 等通信适配器。

它可以安装在任何 SLC 500 机箱上。此处理器模块具有插槽零 （0） 的固定插槽分配。

1747-L553/A  可编程逻辑控制器 具有最高的内存

【英文介绍】

The 1747-L553 is an SLC 5/05 processor for the SLC 500 Programmable Logic Controller (PLC) platform. The controller has the highest memory in the SLC 5/05 category at 64 KB of memory. It integrates an RS32 Sub-D 9-pin connector for point-to-point communication with a locally installed human machine interface (HMI) or programming workstation. It also has integrated Ethernet, which is ideal for long distance communication, with transmission speeds of 10/100 mbps for at least 100 meters. It's also ideal for connecting to multiple devices at once. These two (2) ports can also be used simultaneously without affecting the logic execution ability of the processor.

The controller is ideal for medium to large scale applications, with control requirements ranging from manual to automatic control of discrete or analog loops, as well as complex control techniques utilizing a large number of embedded instructions. It can be used in factory automation, process automation, and even for motion and position control requirements.

It is also capable of sending messages to other Allen-Bradley PLC platforms, such as PLC 5, CompactLogix, and ControlLogix, over specified communication protocols. Although integrated with Ethernet and RS232 ports, the processor can install communication adapters such as Remote I/O (RIO), Data Highway Plus (DH+), DeviceNet, and DH485.

It can be installed on any SLC 500 chassis. This processor module has a fixed slot allocation for slot zero (0).
