2711R-T10T 图形操作终端 工业应用要求的现代规格

【产品详情】

Allen-Bradley 2711R-T10T 是一款 PanelView 800 图形操作终端。该操作终端配备了符合当今工业应用要求的现代规格。该操作终端支持横向和纵向，提供安装灵活性和优化的工艺流程设计。

2711R-T10T 具有中央处理器 （CPU），处理速度为 800 MHz。它还具有显着改进的内存区域，具有专用的 256 MB 内部存储和 256 MB DDR RAM。

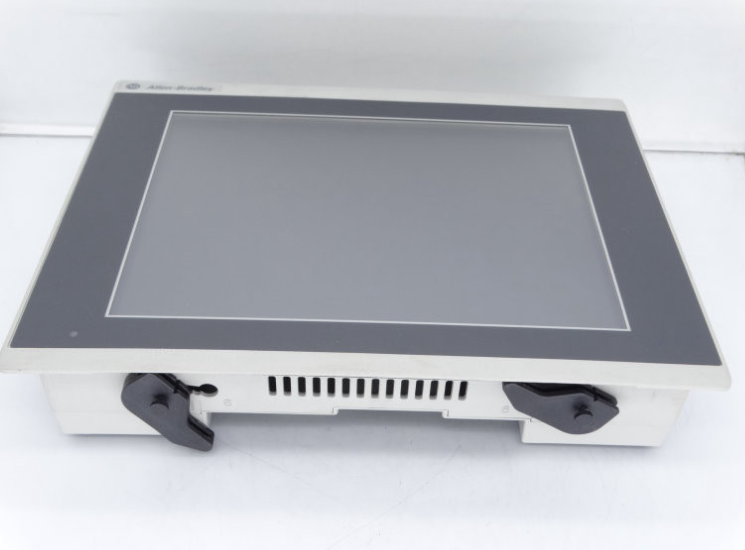

2711R-T10T 具有 10 英寸 TFT 触摸屏、宽 LCD 显示屏，分辨率为 800 x 600 SVGA，支持 65K 色。它有一个 LED 背光，使用寿命为 40,000 小时。该操作终端配有 micro-SD 卡。推荐的 SD 卡是工业级 SD 卡、SDSC 和 Class 6 和 Class 10 0 SDHC micro-SD 卡。支持的卡格式为 FAT32 / FAT16 格式，支持高达 32 GB 的存储大小。此外，提供的 USB 端口支持安装用于可移动存储的外部闪存驱动器。

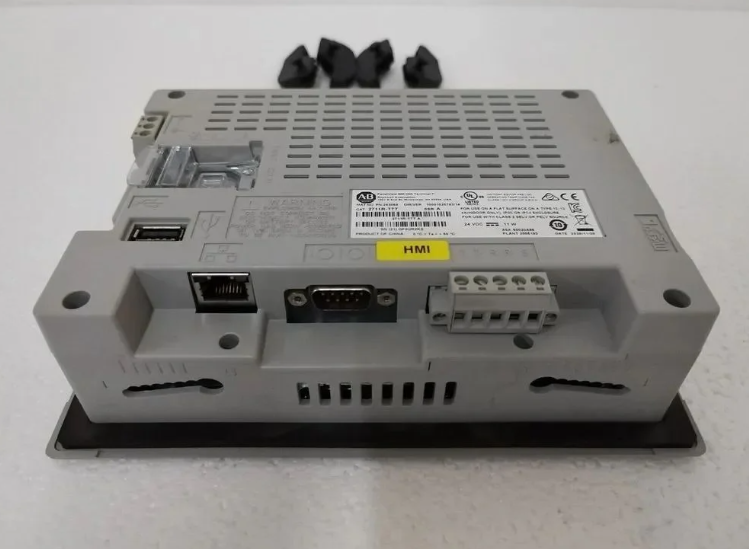

2711R-T10T 配有一 （1） 个 RS-422 和 RS-485 端口、一 （1） 个 RS-232 端口和一 （1） 个以太网通信端口。串行接口支持 DF1、DH485、MODBUS、MODBUS ASCII、MODBUS unsolicited 和 Allen-Bradley 通用工业协议 （CIP） 等系统协议，而提供的以太网端口支持 CompactLogix、MicroLogix、MicroLogix ENI、SLC 500、MODBUS TCP/IP 和 Allen-Bradley CIP 等系统协议。

该操作终端由 18-32VDC 的电源电压范围供电，最大功耗为 14 W （0.48 A @ 24V DC）。

2711R-T10T 图形操作终端 工业应用要求的现代规格

【英文介绍】

The Allen-Bradley 2711R-T10T is a PanelView 800 graphics terminal. The operating terminal is equipped with modern specifications that meet the requirements of today's industrial applications. The operating terminal supports horizontal and vertical, providing installation flexibility and optimized process design.

The 2711R-T10T has a central processing unit (CPU) with a processing speed of 800 MHz. It also features a significantly improved memory area, with dedicated 256 MB of internal storage and 256 MB of DDR RAM.

The 2711R-T10T features a 10-inch TFT touch screen, wide LCD display, 800 x 600 SVGA resolution, and support for 65K colors. It has an LED backlight and a service life of 40,000 hours. The operator terminal is equipped with a micro SD card. The recommended SD cards are industrial-grade SD cards, SDSC, and Class 6 and Class 100 SDHC micro-SD cards. The supported card format is FAT32 / FAT16 format and supports up to 32 GB of storage size. In addition, the provided USB port supports the installation of external flash drives for removable storage.

The 2711R-T10T is equipped with one (1) RS-422 and RS-485 port, one (1) RS-232 port, and one (1) Ethernet communication port. Serial interface support for system protocols such as DF1, DH485, MODBUS, MODBUS ASCII, MODBUS unsolicited, and Allen-Bradley Universal Industrial Protocol (CIP). Ethernet ports support system protocols such as CompactLogix, MicroLogix, MicroLogix ENI, SLC 500, MODBUS TCP/IP, and Allen-Bradley CIP.

The operating terminal is powered by an 18-32VDC supply voltage range with a maximum power consumption of 14 W (0.48A@24V DC).

The 2711R-T10T features simulated resistive surface touch and LED backlight for up to 40,000 hours of standby time. It has a battery backed up real-time clock and has a battery life of 77 years when used at temperatures below 5 °F. It also has 256 MB of factory-built memory for storing user Settings and application parameters. The 2711R-T10T also comes with a 256MB synchronous DRAM for application processes with a processor speed of 800MHz and is compatible with MicroLogix and Micro 800 controllers. It also supports a USB 2.0 host port for connecting external peripherals and a micro SD card slot for up to 32 GB of external memory. The 2711R-T10T measures 8.9 x 11.3 x 2.2 inches and weighs about 10 pounds. It comes with a T4 temperature code for a functional temperature of 0-50 °C (32-122 °F), with NEMA/UL Type 4X, 12, 13 and IP65 housing type grades and front shield protection. This PanelView uses 24 VDC power supply. The most common series is Series A. The PanelView 800 product line consists of a set of panel mounted display units with a keyboard or touch screen for user input methods. These HMI terminals are available in 4 ", 7 "and 10" display sizes.
