1762-OW8 继电器型输出模块 可编程逻辑控制器
【产品详情】

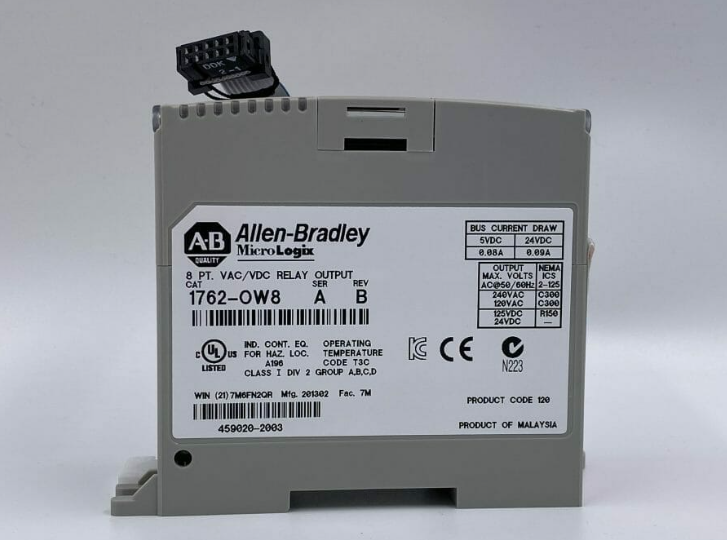

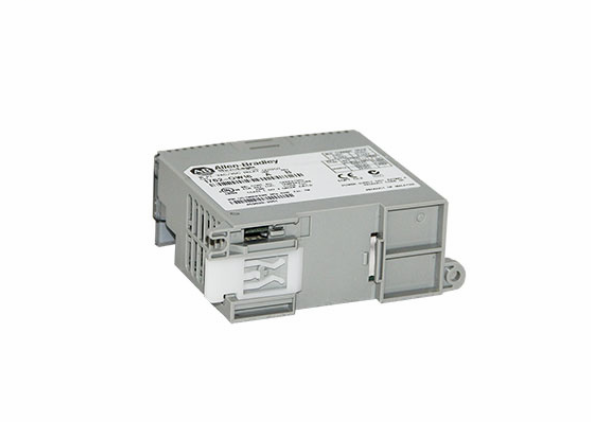

Allen-Bradley 1762-OW8是八(8)点交流/DC继电器型输出模块,用于MicroLogix 1100/1200/1400可编程逻辑控制器。它是Bulletin 1762 MicroLogix扩展I/O模块系列的一部分。通过在类型和数量方面最大化控制器的I/O能力,它在工业环境中提供了灵活性。它支持无机架模块化设计,减少了替换零件库存,并提高了成本节约。此外,1762-OW8可以安装在面板或DIN导轨上。
1762-OW8输出模块具有交流/DC常开继电器电压类别,工作范围为5至265伏交流电和5至125伏DC。它在5伏DC (0.40瓦)下的最大总线电流消耗为80毫安,在24伏DC (2.16瓦)下的最大总线电流消耗为90毫安。它的最大持续电流为8安培,每个模块为16安培。该设备应安装在距离主机设备电源6个模块的地方。它内置两个隔离的输出组——输出0至3和输出4至7。1762-OW8继电器输出模块可安装在EN 50 022 35 x 7.5毫米或EN 50 022 35 x 15毫米DIN导轨上。对于在高振动或冲击环境中的安装,使用DIN轨道端锚。对于更大的振动要求,选择面板安装。对于DIN导轨和面板安装,防止碎片落入1762-OW8模块,以免造成任何损坏。
1762-OW8是一个MicroLogix继电器输出扩展模块。该扩展模块具有两(2)个输出组,每组具有四(4)个输出。组0由信道0-3组成,而组1由信道4-7组成。该模块兼容增强MicroLogix 1100、1200和1400可编程逻辑控制器(PLC)的嵌入式输出能力。
该模块具有八(8)个继电器触点输出,设计用于在5至265VAC和5至125VDC电压范围的电压类别下运行。该模块通过提供的带状电缆连接到MicroLogix总线,该电缆端接至相邻的扩展模块或MicroLogix基本控制器。对于从开到关和从关到开的转换,模块各通道的信号延迟时间均为10 ms。每个输出点的额定持续电流为2.5 A,每个公共点的持续电流为8A,每个模块的持续电流为16A。
使用该模块给电磁接触器、继电器线圈、电磁驱动装置通电。它也可用于发出变频驱动器(VFD)、电机启动器和类似负载的运行和启动命令。一般来说,它也可用于激励指示灯、指示器、报警信号器面板、警报器、蜂鸣器、喇叭和其他分立设备。
1762-OW8 继电器型输出模块 可编程逻辑控制器
【英文介绍】
Allen-Bradley 1762-OW8 is an eight (8) point AC /DC relay type output module for the MicroLogix 1100/1200/1400 programmable logic controller. It is part of the Bulletin 1762 MicroLogix extended I/O module family. By maximizing the controller's I/O capabilities in terms of type and quantity, it provides flexibility in industrial environments. It supports rackless modular design, reduces replacement parts inventory, and improves cost savings. In addition, the 1762-OW8 can be mounted on a panel or DIN rail.
The 1762-OW8 output module has an AC /DC normally open relay voltage class with an operating range of 5 to 265 volts AC and 5 to 125 volts DC. It has a maximum bus current consumption of 80 mA at 5 volt DC (0.40 watts) and 90 mA at 24 volt DC (2.16 Watts). It has a maximum continuous current of 8 amps and 16 amps per module. The device must be installed six modules away from the power supply of the host. It has two isolated output groups built in - output 0 to 3 and output 4 to 7. The 1762-OW8 relay output module can be mounted on EN 50 022 35 x 7.5 mm or EN 50 022 35 x 15 mm DIN rails. For installations in high vibration or shock environments, DIN rail end anchors are used. For greater vibration requirements, choose panel mounting. For DIN rail and panel mounting, prevent debris from falling into the 1762-OW8 module so as not to cause any damage.
The 1762-OW8 is a MicroLogix relay output expansion module. The expansion module has two (2) output groups, each with four (4) outputs. Group 0 consists of channels 0-3, while group 1 consists of channels 4-7. The module is compatible with enhanced embedded output capabilities for MicroLogix 1100, 1200 and 1400 programmable logic controllers (PLCS).
The module has eight (8) relay contact outputs and is designed to operate in voltage classes in the 5 to 265VAC and 5 to 125VDC voltage ranges. The module is connected to the MicroLogix bus via a supplied ribbon cable that terminates to an adjacent expansion module or MicroLogix base controller. For the conversion from on to off and from off to on, the signal delay time for each channel of the module is 10 ms. Each output point has A rated continuous current of 2.5 A, each common point has a continuous current of 8A and each module has a continuous current of 16A.
The module is used to energize the electromagnetic contactor, relay coil and electromagnetic drive device. It can also be used to issue run and start commands for variable frequency drives (VFDS), motor starters, and similar loads. In general, it can also be used for excitation lights, indicators, alarm signal panels, alarms, buzzers, horns, and other discrete devices.
