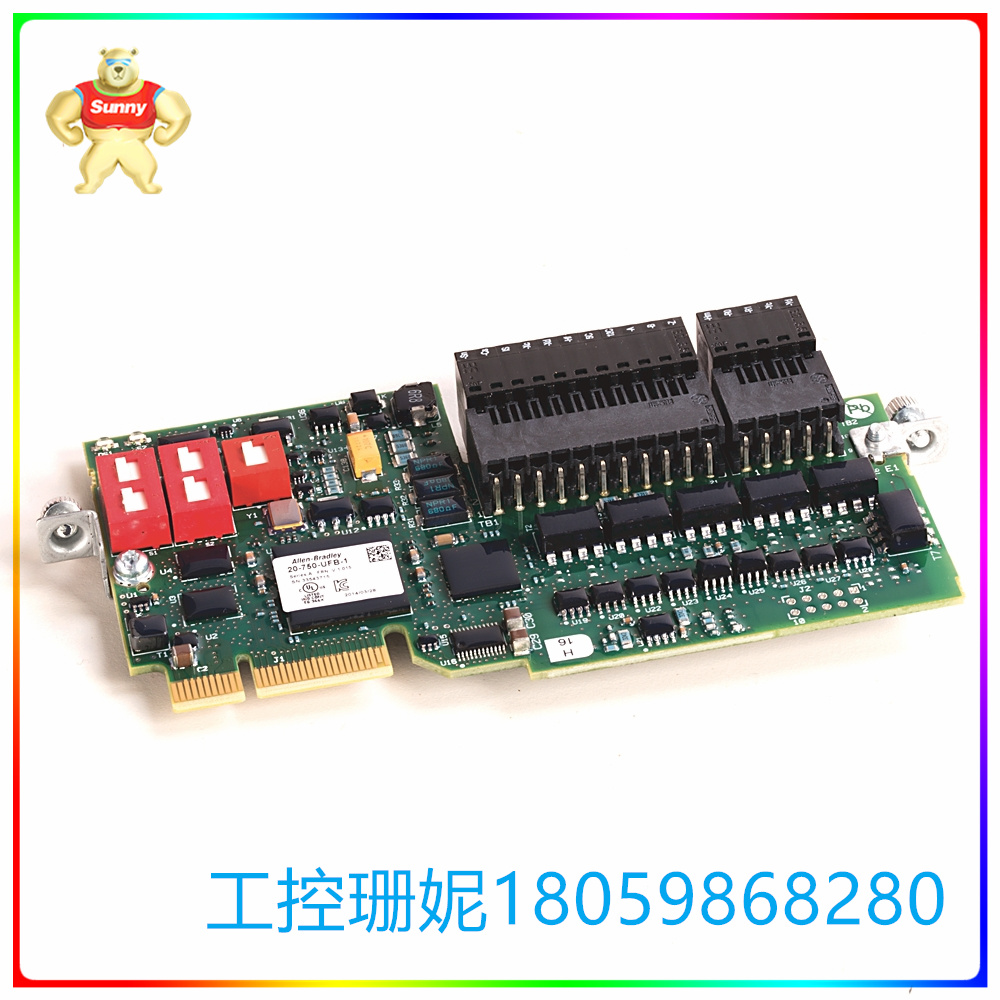

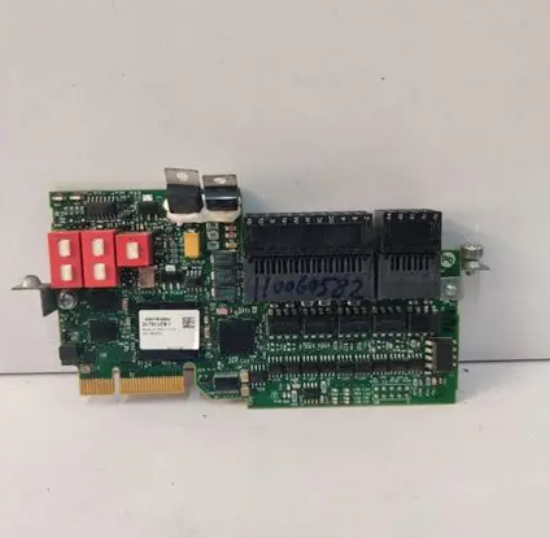

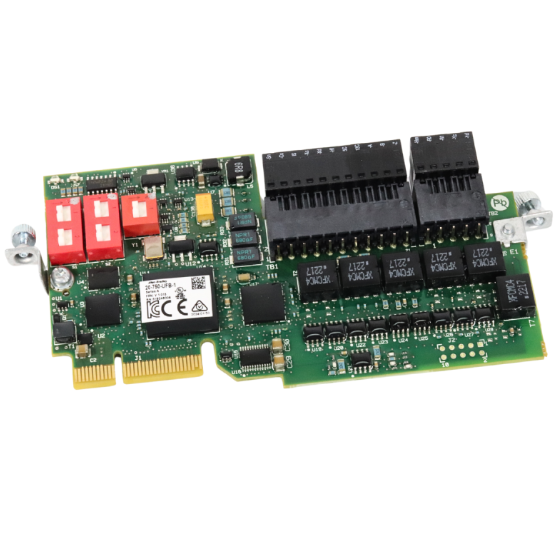

20-750-UFB-1 通用反馈选件模块 安全速度监控器

【产品详情】

Allen-Bradley 20-750-UFB-1 模块是 PowerFlex 750 通用反馈选件模块。使用安全速度监控器选件模块时，只有 PowerFlex 755 变频器支持 20-750-UFB-1 模块（安全速度监控器选件必须与 20-750-UFB-1 模块或目录号为 20-750-DENC-1 的双增量编码器一起使用）。20-750-UFB-1 模块上有 2 个状态指示灯：指示灯 1 用于显示 20-750-UFB-1 模块板的状态，指示灯 2 用于显示 DPI 通信接口的状态。20-750-UFB-1模块上提供拨码开关进行配置，当将反馈信号连接到主安全通道时，拨码开关设置为S1 ON、S2 OFF和S3 ON，当将反馈信号连接到DIP开关的辅助安全通道时，设置为S1 OFF、S2 ON和S3 On。将反馈信号连接到 DIP 开关的主通道和次通道时，设置将为 S1 ON、S2 ON 和 S3 ON。当 PowerFlex 755 变频器用作集成运动系统的一部分时，20-750-UFB-1 模块可以以不同的组合使用。当使用 2 个反馈选项和 I/O 时，20-750-UFB-1 模块将用于端口 4 至 6。当使用 2 个反馈选项、1 个安全转矩关闭选项和 I/O 时，20-750-UFB-1 模块可用于端口 4 和 5。当使用 2 个反馈选项、1 个安全速度监控选项和 I/O 时，20-750-UFB-1 模块可用于端口 4 和 5。

20-750-UFB-1 是 Allen-Bradley 的通用反馈编码器模块。此模块是一个附件模块，与 PowerFlex 755 变频器兼容，并安装了安全速度监控器选件模块。该模块可与 Allen-Bradley PowerFlex 755、PowerFlex 755TL 和 PowerFlex 755TR 可调频率交流变频器一起安装。

20-750-UFB-1 带有一 （1） 个输入，支持差分或单端操作、恒定电流吸收操作，额定电流约为 10 毫安。它的最低工作电压为 3.5 伏直流电，最大直流电压为 7.5 伏，源电流为 10 毫安。要将此模块连接到输入源，可接受的电缆长度不超过 30 米或 100 英尺 @ 5 伏直流电。此外，输入信号的最大输入频率不得超过 250 千赫兹。

该模块支持的编码器包括电源电压为 5 V、250 毫安的 Heidenhain （EnDat）;正弦/余弦1V P-P的高分辨率信号;最大电缆长度 100 米（328.1 英尺）;更新速率为 102.4 μs，最大输入频率为 163.8 KiloHertz。同样，也支持 SSI 编码器、Stegmann （Hiperface）、BiSS、Stahl（线性）和 Temposonics （线性） 编码器。

20-750-UFB-1 配有三 （3） 组 DIP 开关，用于安全通道选择。要设置主要安全通道，请将 S1 滑块设置为 ON;S2 滑块变为 OFF，S3 滑块变为 ON。对于辅助安全通道，将 S1 滑块设置为 OFF;S2 滑块变为 ON，S3 滑块变为 ON。对于主要和次要安全通道，将 S1 滑块设置为 ON;S2 滑块变为 ON，S3 滑块变为 ON。

20-750-UFB-1 通用反馈选件模块 安全速度监控器

【英文介绍】

The Allen-Bradley 20-750-UFB-1 module is the PowerFlex 750 Universal feedback option module. When using the Safety Speed Monitor option module, only the PowerFlex 755 inverter supports the 20-750-UFB-1 module (The Safety Speed monitor option must be used with the 20-750-UFB-1 module or the dual increment encoder with the directory number 20-750-DENC-1). There are two status indicators on the 20-750-UFB-1 module: Indicator 1 shows the status of the 20-750-UFB-1 module board, and indicator 2 shows the status of the DPI communication port. The DIP switch is provided ON the 20-750-UFB-1 module for configuration. When the feedback signal is connected to the main safety channel, the DIP switch is set to S1 ON, S2 OFF and S3 ON. When the feedback signal is connected to the secondary safety channel of the DIP switch, the DIP switch is set to S1 OFF, S2 ON and S3 On. When connecting the feedback signal to the primary and secondary channels of the DIP switch, the Settings will be S1 ON, S2 ON, and S3 ON. When the PowerFlex 755 inverter is used as part of an integrated motion system, the 20-750-UFB-1 module can be used in different combinations. When using 2 feedback options and I/O, the 20-750-UFB-1 module will be used for ports 4 to 6. When using 2 feedback options, 1 safe torque off option and I/O, the 20-750-UFB-1 module is available for ports 4 and 5. When using 2 feedback options, 1 safe speed monitoring option and I/O, the 20-750-UFB-1 module is available for ports 4 and 5.

The 20-750-UFB-1 is Allen-Bradley's universal feedback encoder module. This module is an accessory module that is compatible with PowerFlex 755 inverter and has a Safety speed monitor option module installed. The module can be installed with Allen-Bradley PowerFlex 755, PowerFlex 755TL and PowerFlex 755TR adjustable frequency AC drives.

The 20-750-UFB-1 comes with one (1) input, supports differential or single-ended operation, constant current absorption operation, and is rated at approximately 10 mA. It has a minimum operating voltage of 3.5 volts DC, a maximum DC voltage of 7.5 volts, and a source current of 10 mA. To connect this module to an input source, an acceptable cable length does not exceed 30 meters or 100 feet @ 5 volts DC. In addition, the maximum input frequency of the input signal must not exceed 250 kilohertz.

Encoders supported by the module include Heidenhain (EnDat) with a supply voltage of 5 V and 250 MA; High resolution signal of sine/cosine 1V P-P; Maximum cable length 100 m (328.1 ft); The update rate is 102.4 μs and the maximum input frequency is 163.8 KiloHertz. SSI encoders, Stegmann (Hiperface), BiSS, Stahl (linear) and Temposonics (linear) encoders are also supported.

The 20-750-UFB-1 is equipped with three (3) sets of DIP switches for safe channel selection. To set the primary safe channel, set the S1 slider to ON; The S2 slider becomes OFF and the S3 slider becomes ON. For secondary safety channels, set the S1 slider to OFF; The S2 slider changes to ON and the S3 slider changes to ON. For primary and secondary safety channels, set the S1 slider to ON; The S2 slider changes to ON and the S3 slider changes to ON.

20-750-UFB-1 通用反馈选件模块 安全速度监控器
