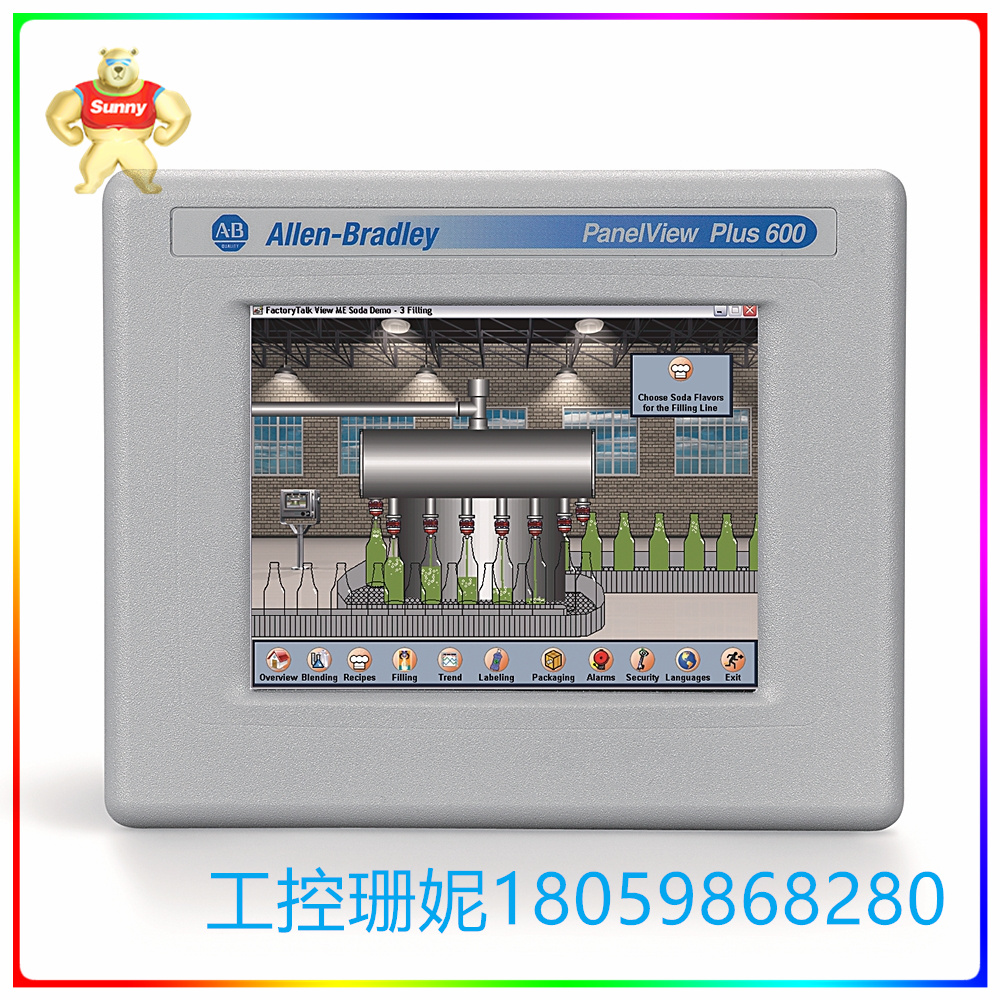

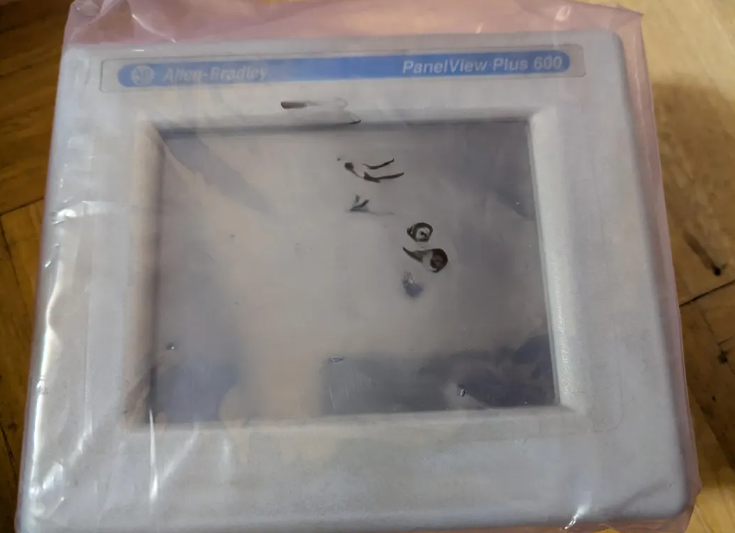

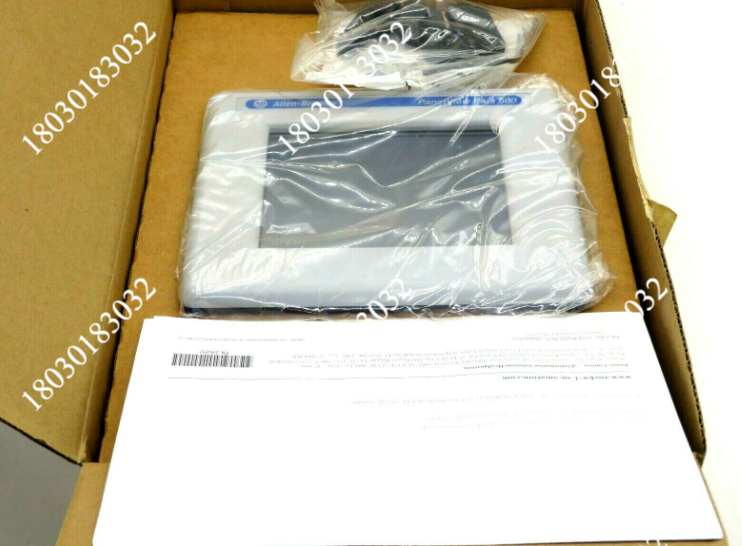

2711P-T6M20D8 单色触摸屏操作终端
【产品详情】
2711P-T6M20D8 的 Allen-Bradley 可视化硬件产品是一款单色触摸屏操作终端。它用作人机界面 (HMI),集成驻留在控制器内存中的机器或过程逻辑,并提供灰度颜色的自定义图形表示。
2711P-T6M20D8 具有 5.7 英寸显示屏,非常适合在简单和小型应用中使用。触摸输入接口通过安装在显示模块内的模拟电阻膜启用。该触摸界面的额定操作次数高达 100 万次。它由外部 24VDC 电源供电,可接受的电压范围为 18-30VDC。
该操作终端具有以太网和 RS232 通信接口。通过以太网 I/P 网络与一个或多个控制器通信时,请使用以太网接口。对于点对点或点对点通信,使用 RS232 接口。该接口支持 Allen-Bradley 专有的 DF1 协议。USB接口用于插入外部外围设备,如鼠标和键盘,作为替代输入接口。还可以连接打印机以及用于可移动存储的外部闪存驱动器。
该操作终端的集成存储器包括 256 MB 随机存取存储器 (RAM) 和 512 MB 非易失性存储器以及 79 MB 可用用户存储器。额外的安全数字 (SD) 卡可以安装到提供的 SD 卡插槽中,以实现热插拔可移动存储。
它还具有测试和调试功能。

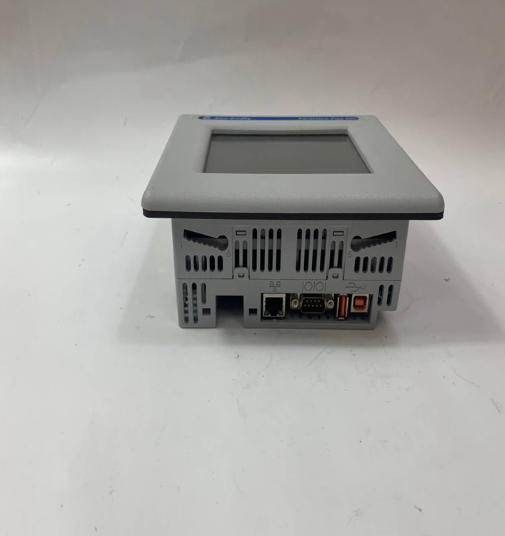

对于通信,2711P-T6M20D8 具有以太网(10/100 Mbps,Auto-MDI/MDI-X)、RS-232 和 2 个 USB 端口(1 个 USB 主机、1 个 USB 设备端口)。2711P-T6M20D8 在 18-30V 直流电压下运行。
它具有 256 MB RAM 和 512 MB 非易失性 (ROM) 的内部存储器。大约运输重量为 6 磅,尺寸为 14 x 11 x 8 英寸。
2711P-T6M20D8 单色触摸屏操作终端
【英文介绍】
The Allen-Bradley visual hardware for the 2711P-T6M20D8 is a monochrome touchscreen operating terminal. It functions as a human-machine interface (HMI), integrates machine or process logic residing in the controller's memory, and provides a custom graphical representation of grayscale colors.
With a 5.7-inch display, the 2711P-T6M20D8 is ideal for use in simple and small applications. The touch input interface is enabled by an analog resistor film installed in the display module. The touch interface is rated for up to 1 million operations. It is powered by an external 24VDC supply with an acceptable voltage range of 18-30VDC.
The operating terminal has Ethernet and RS232 communication interfaces. When communicating with one or more controllers over an Ethernet I/P network, use the Ethernet interface. For point-to-point or point-to-point communication, the RS232 interface is used. The interface supports Allen-Bradley's proprietary DF1 protocol. The USB interface is used to plug in external peripherals, such as mice and keyboards, as an alternative input interface. Printers can also be connected, as well as external flash drives for removable storage.
The integrated memory of the operating terminal includes 256 MB of random access memory (RAM) and 512 MB of non-volatile memory, as well as 79 MB of available user memory. Additional Secure digital (SD) cards can be installed into the provided SD card slot for hot-swappable removable storage.
It also has testing and debugging capabilities.
For communication, the 2711P-T6M20D8 has Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, and 2 USB ports (1 USB host, 1 USB device port). The 2711P-T6M20D8 operates at 18-30V DC voltage.
It has 256 MB of RAM and 512 MB of non-volatile (ROM) internal memory. The approximate shipping weight is 6 pounds and the dimensions are 14 x 11 x 8 inches.
2711P-T6M20D8 单色触摸屏操作终端
