1336F-B030-AN-EN 电机控制驱动器 具有可调频率功能

【产品详情】

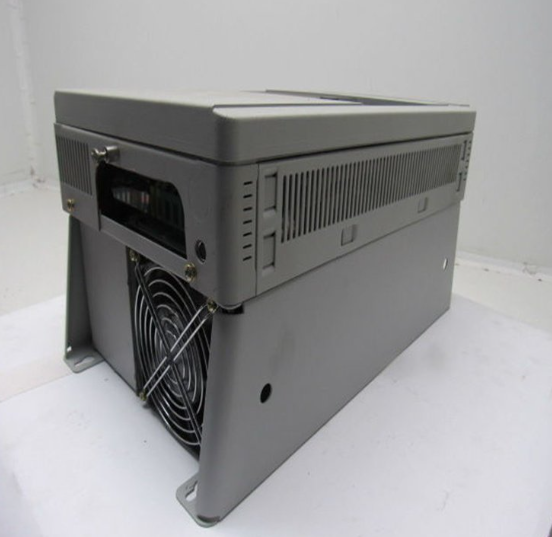

Allen-Bradley 1336F-B030-AN-EN-HASB 驱动器是 Allen-Bradley 电机控制驱动器 1336 PLUS II 系列的空白板电机控制驱动器。它是一种空白板驱动器，因为它在通常由 HMI 或人机界面模块占用的空间中安装了一块空白板。1336F-B030-AN-EN-HASB 电机控制驱动器与多种不同类型的 Allen-Bradley HMI 模块兼容，驱动器的空板可以随时拆卸和更换为这些 HMI 模块之一。但是，如果 1336F-B030-AN-EN-HASB 驱动器上未安装 HMI 模块，则其空白板应保持在原位，以防止灰尘、湿气和其他污染物进入并损坏驱动器，并保护驱动器的用户免受电击。1336F-B030-AN-EN-HASB 驱动器也不附带任何内置控制、通信或模拟 I/O 接口模块，但它与多个可选模块兼容，这些模块可以安装在适当的插槽和适配器上，以扩展驱动器的功能。

虽然 Allen-Bradley 1336F-B030-AN-EN-HASB 1336 PLUS II 系列变频器缺少接口模块，但它具有多种控制模式，以满足不同的电机控制需求。1336F-B030-AN-EN-HASB 变频器在控制大型电机或标准电机时，即使在低速下也需要高扭矩的高级应用中，以无传感器矢量控制模式运行。当在标准应用中控制小型或标准电机时，该驱动器以伏特/赫兹控制模式运行，并且它还具有可调频率功能，可以控制电机的速度和扭矩，摩擦水平较低，并且速度或扭矩额定值不会发生任何突然变化。1336F-B030-AN-EN-HASB 电机控制驱动器设计为使用三相交流输入电压，其工作电压范围为 380 至 480 伏交流电。在具有适当电压的安全运行条件下，1336F-B030-AN-EN-HASB 变频器可实现 97.5% 的运行效率。

1336F-B030-AN-EN 电机控制驱动器 具有可调频率功能

【英文介绍】

The Allen-Bradley 1336F-B030-AN-EN-HASB driver is a blank plate motor control driver for the Allen-Bradley Motor Control Driver 1336 PLUS II series. It is a blank board driver in that it installs a blank board in the space normally occupied by an HMI or HMI module. The 1336F-B030-AN-EN-HASB motor control driver is compatible with many different types of Allen-Bradley HMI modules, and the empty board of the driver can be removed and replaced with one of these HMI modules at any time. However, if no HMI module is installed on the 1336F-B030-AN-EN-HASB drive, its blank plate should be kept in place to prevent dust, moisture, and other contaminants from entering and damaging the drive, and to protect the user of the drive from electric shocks. The 1336F-B030-AN-EN-HASB drive also does not come with any built-in control, communication, or analog I/O interface modules, but it is compatible with multiple optional modules that can be installed on the appropriate slots and adapters to extend the drive's functionality.

Although the Allen-Bradley 1336F-B030-AN-EN-HASB 1336 PLUS II series inverter lacks an interface module, it has a variety of control modes to meet different motor control needs. The 1336F-B030-AN-EN-HASB inverter operates in sensorless vector control mode when controlling large or standard motors in advanced applications where high torque is required even at low speeds. When controlling a small or standard motor in a standard application, the drive operates in a volt/Hertz control mode, and it also has an adjustable frequency function that allows you to control the speed and torque of the motor with low friction levels and without any sudden changes in speed or torque ratings. The 1336F-B030-AN-EN-HASB motor control driver is designed to use a three-phase AC input voltage with an operating voltage range of 380 to 480 volts AC. Under safe operating conditions with appropriate voltage, the 1336F-B030-AN-EN-HASB inverter can achieve an operating efficiency of 97.5%.

1336F-B030-AN-EN 电机控制驱动器 具有可调频率功能
