MPL-B420P-SJ72AA 低惯量系列电机 具有单圈高分辨率编码器反馈

MPL-B420P-SJ72AA低惯量系列电机具有单圈高分辨率编码器反馈【产品详情】AllenBradley的这款永磁旋转伺服电机MPL-B420P-SJ72A

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

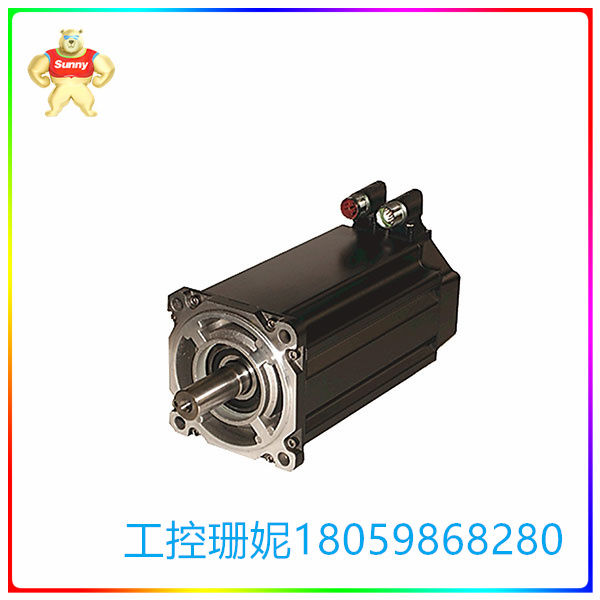

MPL-B420P-SJ72AA 低惯量系列电机 具有单圈高分辨率编码器反馈




【产品详情】





Allen Bradley 的这款永磁旋转伺服电机 MPL-B420P-SJ72AA 属于 MP 系列低惯量系列电机。它的工作电压为 400 伏,额定功率输出为 1.9 kW。它的框架尺寸为 115 毫米,重约 4.3 公斤(9.4 磅)。MPL-B420P-SJ72AA 非常适合包装、物料搬运和其他需要低惯量的运动控制应用。MPL-B420P-SJ72AA 的额定速度、基本速度和最大速度为 5000 RPM,具有单圈高分辨率编码器反馈。它的长度为 190.0 毫米(7.48 英寸),高度为 140.1 毫米(5.52 英寸)。它的轴长为 40.0 毫米(1.575 英寸),公差为 ± 0.7 毫米(± 0.028 英寸),直径为 19.0 毫米(0.748 英寸)。MPL-B420P-SJ72AA 的工作温度为 0 至 40 摄氏度(32 至 104 华氏度)。如果可能,应在 -30 至 70 摄氏度(-22 至 158 华氏度)的温度下、5 至 95% 的相对湿度、非冷凝、非腐蚀性环境中储存。MPL-B420P-SJ72AA 是一款 IP66(防尘、强力水射流、室温水)认证模块。它的径向负载额定值为 45 千克(99 磅),在 5000 RPM 时为 51 千克(112 磅),在 3500 RPM 时为 62 千克(137 磅),在 78 RPM 时为 172 千克(1000 磅)。


其最大径向载荷额定值的轴向载荷在 5000 RPM 时为 18 千克(40 磅),在 3500 RPM 时为 21 千克(46 磅),在 2000 RPM 时为 27 千克(60 磅),在 1000 RPM 时为 36 千克(79 磅)。其零径向载荷额定轴向载荷在 5000 RPM 时为 25 千克(55 磅),在 3500 RPM 时为 30 千克(66 磅),在 2000 RPM 时为 38 千克(84 磅),在 1000 RPM 时为 51 千克(112 磅)。要开始安装电机,建议用户首先提供足够的间隙和空气冷却空间以及散热器质量,以确保电机保持在 0 至 40 摄氏度(32 至 104 华氏度)的理想温度范围内。轴向和径向轴载荷不应超过上述限制。电机的位置应使其连接器朝下。然后,将紧固件插入四个安装孔中并用手拧紧紧固件。使用安装导向孔验证电机在机器上的正确对齐,然后以 0.8 至 1.0 N-m(每英寸 7 至 9 磅)的扭矩拧紧紧固件。要验证电机的电气相位和编码器的正确定位,请旋转轴。安装螺纹 DIN (M4) 电缆插头时,请安装 O 形圈,对于 SpeedTec DIN (M7) 电缆插头,请勿安装 O 形圈 反馈连接器上的 O 形圈是达到最大环境等级所必需的。形成滴水回路,将液体从电机连接处带走。用手拧紧插头上的套环以正确连接。连接电缆插头和连接器时不要用力过猛。如果插头和连接器没有用手轻轻的力配合在一起,请重新对齐平坦的表面。




MPL-B420P-SJ72AA 低惯量系列电机 具有单圈高分辨率编码器反馈



英文介绍





Allen Bradley's permanent magnet rotary servo motor MPL-B420P-SJ72AA belongs to the MP series of low inertia motors. It operates at 400 volts and has a rated power output of 1.9 kW. It has a frame size of 115 mm and weighs about 4.3 kg (9.4 lb). The MPL-B420P-SJ72AA is ideal for packaging, material handling and other motion control applications that require low inertia. The MPL-B420P-SJ72AA has a rated speed, base speed and maximum speed of 5000 RPM with single-turn high-resolution encoder feedback. It measures 190.0 mm (7.48 in) in length and 140.1 mm (5.52 in) in height. It has a shaft length of 40.0 mm (1.575 in) with a tolerance of ± 0.7 mm (± 0.028 in) and a diameter of 19.0 mm (0.748 in). The MPL-B420P-SJ72AA operates at a temperature of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). If possible, it should be stored at a temperature of -30 to 70 degrees Celsius (-22 to 158 degrees Fahrenheit) and in a non-condensing, non-corrosive environment with relative humidity of 5 to 95%. The MPL-B420P-SJ72AA is an IP66 (dust proof, Strong water jet, room temperature water) certified module. It has radial load ratings of 45 kg (99 lb), 51 kg (112 lb) at 5000 RPM, 62 kg (137 lb) at 3500 RPM, and 172 kg (1000 lb) at 78 RPM.




The axial load of its maximum radial load rating is 18 kg (40 lb) at 5000 RPM, 21 kg (46 lb) at 3500 RPM, 27 kg (60 lb) at 2000 RPM, and 36 kg (79 lb) at 1000 RPM. Its zero radial load rating is 25 kg (55 lb) at 5000 RPM, 30 kg (66 lb) at 3500 RPM, 38 kg (84 lb) at 2000 RPM, and 51 kg (112 lb) at 1000 RPM. To begin installing the motor, it is recommended that users first provide sufficient clearance and air cooling space as well as radiator mass to ensure that the motor remains within the ideal temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). Axial and radial axial loads shall not exceed the above limits. The motor should be positioned so that its connector faces down. Then, insert the fasteners into the four mounting holes and tighten the fasteners by hand. Verify the proper alignment of the motor on the machine using the mounting guide holes, then tighten the fasteners with a torque of 0.8 to 1.0 N-m (7 to 9 pounds per inch). To verify the electrical phase of the motor and the correct positioning of the encoder, rotate the shaft. Install O-rings when installing threaded DIN (M4) cable plugs. For SpeedTec DIN (M7) cable plugs, do not install O-rings on the O-ring feedback connector, which is necessary to achieve the maximum environmental grade. A drip loop is formed to carry the liquid away from the motor connection. Hand tighten the collar on the plug for proper connection. Do not exert too much force when connecting cable plugs and connectors. If the plug and connector do not fit together with gentle hand force, re-align the flat surface.
