25B-D010N114 变频驱动器  三相逆变器

【产品详情】

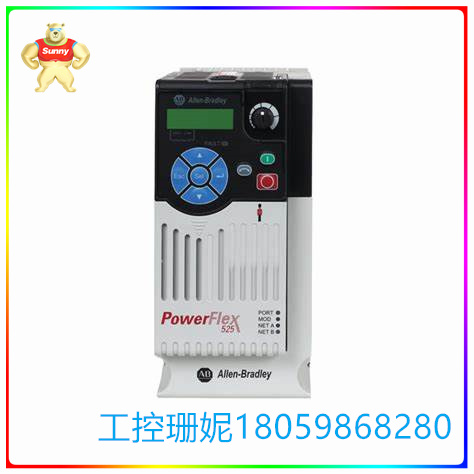

Allen Bradley PowerFlex 525 – 三相逆变器

Allen-Bradley 25B-D010N114是一款PowerFlex 525可调变频器。该装置是一种电机控制设备，主要用于执行基本的电机运行，调节其速度并实现保护和能耗功能。

这种可调频率驱动器通常被其他人员称为变频驱动器 （VFD） 或变速驱动器或变频器。该驱动器通过向电压范围为 380-480VAC、3 相的 ints 输入端子提供电源电压来运行。它向电机提供输出电流和功率，输出额定值包括 0-460VAC，3 相，额定电流为 10.5 A，功率为 4.0 kW （5.0 HP）。

对于基本的电机控制，该驱动器能够命令电机启动/停止;前进/后退/慢跑;。它的输出频率可以改变以调节电机。该驱动器的输出频率范围为 0-500 Hz，完全可编程。它通过多种可选的控制方法实现速度调节，例如伏特/赫兹、无传感器矢量控制 （SVC）、闭环速度矢量控制和永磁电机控制方法。通过这些控制方法，还可以实现扭矩控制。

使用 Allen Bradley 的 PowerFlex 525 三相逆变器，享受多功能、可靠的电机控制和更高的易用性。这些交流控制器是联网机器和系统集成的经济高效的理想解决方案，非常适合传送带、风扇、泵和搅拌机等应用。

创新的 PowerFlex 525 交流设备采用模块化设计，可确保快速简便的安装和配置，从而节省时间和面板空间。它们提供高效的 USB 编程、全面的以太网/IP™ 通信、灵活的安装选项、特定应用的配置和标准安全功能。它们还提供紧凑的尺寸，这些灵活的变频驱动器可以在高温下工作，工作温度高达 70°C （158°F），具有电流下降和控制模块风扇套件。

这些器件的额定功率为 0.4 至 22 kW （0.5 至 30 HP），总电压等级为 100 至 600V，因此支持多种电机控制选项。PowerFlex 525 具有综合人机界面 （HIM） 模块，支持多种语言和描述性功能。它们包括通过 PLD/SIL2 Cat 3 认证的安全扭矩停机功能，此功能无需移除单元功率即可消除发动机旋转功率，从而在安全系统有需求后更快地启动。通过省煤器控制模式和能源控制功能，可以降低能源成本。

特点和优点：

• 使用可选

编码器卡进行闭环反馈• 比 PowerFlex 523

系列更多的 I/O• 借助内置

以太网/IP 端口，简化了通过网络配置、控制和收集设备数据 • 相对于其功率范围和安装方式，尺寸紧凑 具有 50 mm

气流间隙的零堆叠™• 通过对磁电机的永久控制提高效率，有助于降低成本• 带 EMC

滤波器的三相输入

• QuickViewTM、AppViewTM 和 CustomViewTM，便于操作和参数设置

25B-D010N114 变频驱动器  三相逆变器

【英文介绍】

Allen Bradley PowerFlex 525 - Three-phase inverter

The Allen-Bradley 25B-D010N114 is a PowerFlex 525 adjustable frequency converter. The device is a motor control device that is mainly used to perform basic motor operation, regulate its speed and achieve protection and energy consumption functions.

Such adjustable frequency drives are often referred to by others as variable frequency drives (VFDS) or variable speed drives or inverters. The driver operates by providing a power supply voltage to a 3-phase ints input terminal with a voltage range of 380-480VAC. It provides output current and power to the motor, with output ratings ranging from 0-460VAC, 3 phases, current rating of 10.5A, and power of 4.0 kW (5.0 HP).

For basic motor control, the driver can command the motor to start/stop; Forward/backward/jogging; . Its output frequency can be changed to adjust the motor. The driver has an output frequency range of 0-500 Hz and is fully programmable. It achieves speed regulation through a variety of optional control methods, such as volts/Hertz, sensorless vector control (SVC), closed-loop velocity vector control and permanent magnet motor control methods. Through these control methods, torque control can also be achieved.

Enjoy versatile, reliable motor control and increased ease of use with Allen Bradley's PowerFlex 525 three-phase inverter. These AC controllers are the ideal cost-effective solution for networked machine and system integration, ideal for applications such as conveyor belts, fans, pumps and mixers.

The innovative PowerFlex 525 AC device features a modular design that ensures quick and easy installation and configuration, saving time and panel space. They offer efficient USB programming, comprehensive Ethernet /IP™ communication, flexible installation options, application-specific configuration, and standard security features. They also offer compact dimensions, and these flexible variable frequency drivers can operate at high temperatures up to 70°C (158°F), with current drop and control module fan kits.

With power ratings ranging from 0.4 to 22 kW (0.5 to 30 HP) and a total voltage rating of 100 to 600V, these devices support a wide range of motor control options. The PowerFlex 525 features an Integrated Human Machine Interface (HIM) module that supports multiple languages and descriptive functions. They include a safe torque stop feature certified by PLD/SIL2 Cat 3, which eliminates engine rotation power without removing unit power, resulting in faster start-up when the safety system is required. Energy cost can be reduced through economizer control mode and energy control function.

Features and advantages:

• Use optional

Encoder card performs closed-loop feedback • better than PowerFlex 523

Series for more I/O• with built-in help

Ethernet /IP port simplifies configuration, control and collection of device data over the network • Compact size of 50 mm relative to its power range and mounting mode

Zero stacking of airflow gaps ™• Increases efficiency through permanent control of magneto, helping to reduce costs • With EMC

Three phase input of the filter

• QuickViewTM, AppViewTM and CustomViewTM for easy operation and parameter setting
