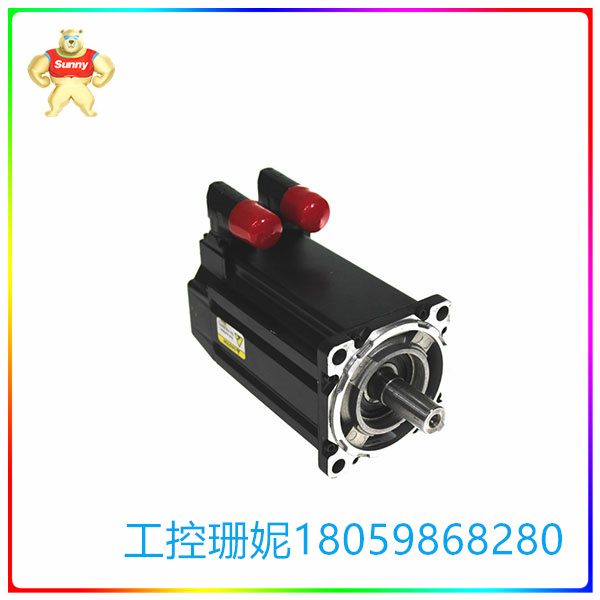

MPL-A4530K-HJ24AA 无刷伺服电机 具有的快速加速功能

【产品详情】

MPL-A4530K-HJ24AA 无刷伺服电机是 Allen-Bradley MP 系列低惯量伺服电机的 130 毫米框架，带有反馈装置。它旨在满足高性能运动系统的严格要求。该伺服电机采用稀土磁铁转子，与传统电机相比具有独特的优势，并且这种优质磁铁转子具有所有 MP 系列伺服电机都具有的快速加速功能。MPL-A4530K-HJ24AA 伺服电机属于 200 伏交流电机系列，在 2.5 千瓦输出和 4000 rpm 的额定电机转速下，峰值扭矩额定值为 180 磅/英寸。该电机拥有先进的智能电机技术，该技术具有板载电机存储器，可保留电机配置文件（速度配置文件），并在启动时将此配置文件传输到系统，从而大大缩短调试时间。

MPL-A4530K-HJ24AA 伺服电机具有 2000 行增量反馈编码器，可提供精确可靠的控制，并且还配备了 24 伏直流弹簧组保持制动器，设计用于在伺服电机失速时保持伺服电机。它具有改进的绕组绝缘性，可增强传热并提高电机性能。MPL-A4530K-HJ24AA 伺服电机具有标准的 3 英寸磁铁堆叠长度，并配有固定型圆形 DIN 连接器。它有一个铝制金属外壳，带有碳钢键轴，并具有 IP 51 环境外壳等级。MPL-A4530K-HJ24AA 伺服电机的工作温度范围为 0 至 40 摄氏度，相对湿度范围为 5% 至 95%，无冷凝。它的平均安装重量为 9.8 千克（带制动器），并具有 CE、UL 和 CSA 认证。

MPL-A4530K-HJ24AA 无刷伺服电机 具有的快速加速功能

【英文介绍】

The MPL-A4530K-HJ24AA brushless servo motor is a 130mm frame of Allen-Bradley MP series low inertia servo motor with feedback device. It is designed to meet the stringent requirements of high-performance motion systems. The servo motor uses a rare earth magnet rotor, which has a unique advantage over conventional motors, and this high-quality magnet rotor has the rapid acceleration feature of all MP series servo motors. The MPL-A4530K-HJ24AA servo motor belongs to the 200 volt AC motor family and has a peak torque rating of 180 LBS/inch at 2.5 kW output and a rated motor speed of 4000 rpm. The motor has advanced smart motor technology with onboard motor memory that retains the motor profile (speed profile) and transfers this profile to the system at startup, greatly reducing commissioning time.

The MPL-A4530K-HJ24AA servo motor features a 2000 row incremental feedback encoder that provides precise and reliable control, and is also equipped with a 24-volt DC spring bank holding brake designed to hold the servo motor in the event of a stall. It has improved winding insulation to enhance heat transfer and improve motor performance. The MPL-A4530K-HJ24AA servo motor has a standard 3-inch magnet stack length with a fixed type circular DIN connector. It has an aluminum metal housing with carbon steel key shafts and has an IP 51 environmental housing rating. The MPL-A4530K-HJ24AA servo motor operates in a temperature range of 0 to 40 degrees Celsius and a relative humidity range of 5 to 95 percent without condensation. It has an average mounting weight of 9.8 kg (with brakes) and is CE, UL and CSA certified.

MPL-A4530K-HJ24AA 无刷伺服电机 具有的快速加速功能
