22D-D6P0N104 变频器 用于工业风扇和泵应用

【产品详情】

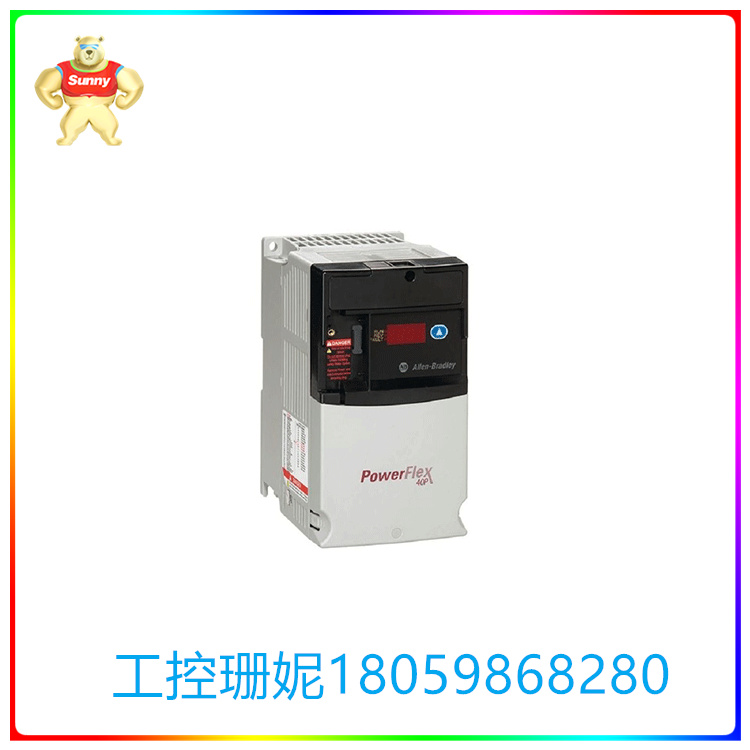

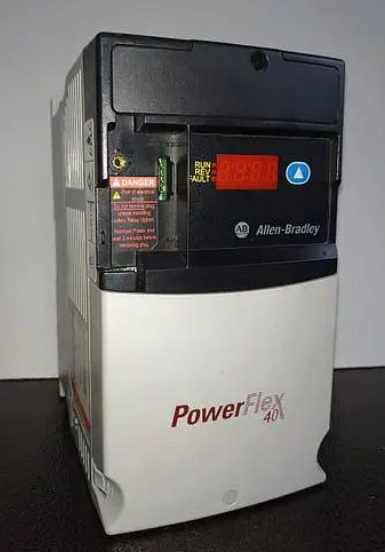

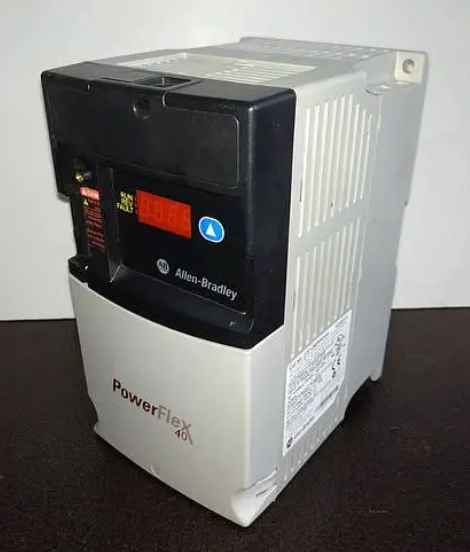

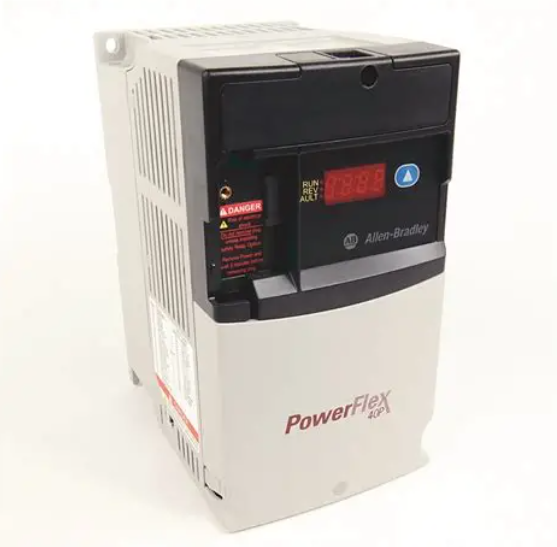

Allen-Bradley 22D-D6P0N104 是一款 PowerFlex 40P 变频器。该驱动器非常适合用于工业风扇和泵应用。它特别适用于饮料和酿造行业、纤维和纺织行业、汽车行业和物料搬运。该驱动器设计用于连接到 380-480VAC 的输入电压源，三相。它能够提供 6.0 A 连续电流和 3.0 HP 或 2.2 kW 功率输出的额定输出。此驱动器是 Frame B 驱动器，支持直接面板安装。

该驱动器设计用于本地和远程操作。允许通过嵌入式人机接口模块 （HIM） 进行本地操作。除了本地操作外，HIM 组件还允许对驱动器进行配置和显示故障排除。通过驱动器提供的 I/O 通道硬连接外部 I/O 接口，可实现远程操作。驱动器有七 （7） 个灌/拉离离式输入;两 （2） 个光电输出和一 （1） 个 C 型触点输出;一 （1） 个模拟输入通道和一 （1） 个模拟输出通道。

此外，22D-D6P0N104 还支持其他通信协议，如 Profibus、ControlNet、DeviceNet、Ethernet、Lonworks 和 Bacnet。

22D-D6P0N104 安装在 B 尺寸框架中，只需毫不费力地安装到 IP20 NEMA 开放式外壳上。您可以使用 22D-D6P0N104 来控制分流器、合成纤维纺纱机、智能输送机和包装机等应用的速度。22D-D6P0N104 的制造商罗克韦尔自动化设计了变频器架构，以满足全球 OEM（原始设备制造商）和最终用户的先进要求。除了非常易于使用之外，它还具有多维灵活性。22D-D6P0N104 的变频功能让您可以选择根据负载要求保持电机的速度。通过这种方式，您可以最大限度地提高变频器的能效，同时提高其产品寿命和生产率。

22D-D6P0N104 变频器 用于工业风扇和泵应用

【英文介绍】

The Allen-Bradley 22D-D6P0N104 is a PowerFlex 40P inverter. The drive is ideal for industrial fan and pump applications. It is particularly suitable for the beverage and brewing industry, the fiber and textile industry, the automotive industry and material handling. The driver is designed to connect to a 380-480VAC input voltage source, three phases. It is capable of delivering a rated output of 6.0A continuous current and 3.0 HP or 2.2 kW power output. This drive is a Frame B drive and supports direct panel mounting.

The drive is designed for both local and remote operation. Allows local operation via an embedded Human Machine interface module (HIM). In addition to local operations, the HIM component allows the drive to be configured and displayed for troubleshooting. The external I/O interface is hardwired through the I/O channel provided by the driver for remote operation. The driver has seven (7) perfusion/pull-away inputs; Two (2) photoelectric outputs and one (1) C-contact outputs; One (1) analog input channel and one (1) analog output channel.

In addition, the 22D-D6P0N104 supports other communication protocols such as Profibus, ControlNet, DeviceNet, Ethernet, Lonworks, and Bacnet.

The 22D-D6P0N104 is installed in a B-size frame and simply needs to be effortlessly mounted onto an IP20 NEMA open housing. You can use the 22D-D6P0N104 to control the speed of applications such as diverters, synthetic fiber spinners, intelligent conveyors and packaging machines. Rockwell Automation, the manufacturer of the 22D-D6P0N104, designed the inverter architecture to meet the advanced requirements of Oems (original equipment manufacturers) and end users worldwide. In addition to being extremely easy to use, it has multi-dimensional flexibility. The frequency conversion function of the 22D-D6P0N104 gives you the option to maintain the speed of the motor according to the load requirements. In this way, you can maximize the energy efficiency of your drives while increasing their product life and productivity.

22D-D6P0N104 变频器 用于工业风扇和泵应用
