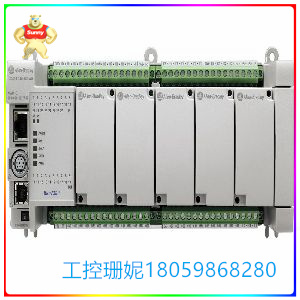

2080-LC50-48QWB 逻辑控制器 安装在DIN导轨
【产品详情】
2080-LC50-48QWB是一款Micro 850逻辑控制器, 由Allen Bradley制造。该装置有 28 个 24 伏直流或交流输入,以及 20 个输出继电器,总共 48 个 I/O,另外还有 6 个 HSC 支持。它消耗大约 33 瓦的功率,应提供约 20.4 至 26.4 伏的直流电(2 类)。该控制器的输入通道在 110 伏交流电压下运行tage 类别,最大为 132 伏交流电(60 赫兹时)。它的关断状态电压最大为 20 伏交流电。其关断状态电流最大为 1.5 mA,而 132 伏交流电时,其导通状态电流最大值为 16 mA。对于信号布线,控制器的线径要求为实心铜线或绞合铜线的 0.2 至 2.5 平方毫米(或 24 至 12 AWG)。其信号、电源和通信端口每个端口不超过两 (2) 根电线,必须严格限制为铜线。其绝缘剥离可达到 7 毫米(或 0.28 英寸)。该装置还符合 IP20 的外壳防护等级,具有 C300、R150 飞行员额定值。本机可承受 65 摄氏度(149 华氏度)的最高周围空气温度。为避免冷凝,请将本机保持在 5% 到 95% 之间的相对湿度区域,并且不要在高于 65 摄氏度或低于 -20(149 和 -4 华氏度)的温度下操作模块。同样,存放时,本机不应保持在 -40 至 85 摄氏度(-40 至 185 华氏度)以外的温度下。本机可能有一些对静电放电敏感的部件(缩写为 ESD)。它不受高达 4 kV 的接触放电和 8 kV 的空气放电的影响。在 10 到 500 赫兹的频率下,2080-LC50-48QWB 的振动可能高达 2 G,冲击可能高达 25。2080-LC50-48QWB 系列控制器 Micro 850 包含一个 USB 接口,允许将标准 USB 电缆应用于模块并用作编程电缆。该控制器还包含一个 10/100 Base-T 端口,用于以太网网络连接。该端口嵌入了黄色和绿色的 LED 灯,用作指示灯,在进行传输或接收状态(例如模块状态或网络状态)时通知用户。该模块包含许多附加功能,包括运行模式更改 (RMC) 和运行模式配置更改 (RMCC) 功能,可实现内存存储和提高生产力。2080-LC50-48QWB 控制器重约 1.60 磅(0.725 千克),尺寸约为 3.54 x 9.37 x 3.15 英寸(或 90 x 238 x 80 毫米)。
Allen-Bradley 2080-LC50-48QWB 是 Micro 850 系列的可编程逻辑控制器 (PLC)。该控制器系列是一系列紧凑、经济高效的控制器,非常适合微型和小型自动化要求。该控制器可安装在DIN导轨上,并支持通过提供的安装孔直接进行面板安装。

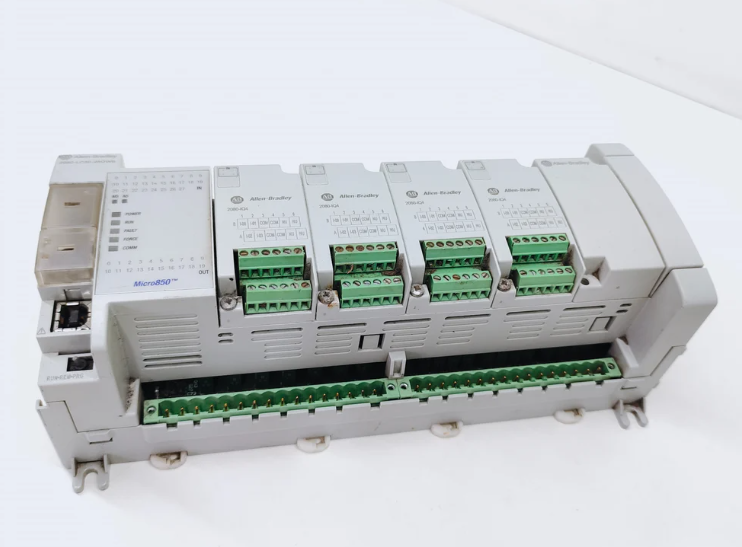

2080-LC50-48QWB 逻辑控制器 安装在DIN导轨
【英文介绍】
The 2080-LC50-48QWB is a Micro 850 logic controller manufactured by Allen Bradley. The unit has 28 24-volt DC or AC inputs, as well as 20 output relays for a total of 48 I/ OS, plus 6 HSC supports. It consumes about 33 watts of power and should provide about 20.4 to 26.4 volts of direct current (Class 2). The controller's input channel runs the tage category at 110 volts AC, up to 132 volts AC (at 60 Hz). It has a maximum off state voltage of 20 volts AC. It has a maximum off current of 1.5 mA and a maximum on current of 16 mA at 132 volts AC. For signal wiring, the wire diameter of the controller is required to be 0.2 to 2.5 square millimeters (or 24 to 12 AWG) of solid or stranded copper wire. Its signal, power and communication ports do not exceed two (2) wires per port and must be strictly limited to copper wires. The insulation can be stripped up to 7 mm (or 0.28 inches). The device also meets the IP20 housing protection rating and has C300, R150 pilot ratings. The unit can withstand a maximum ambient air temperature of 65 degrees Celsius (149 degrees Fahrenheit). To avoid condensation, keep the unit in a relative humidity zone between 5% and 95%, and do not operate the module at temperatures higher than 65 degrees Celsius or lower than -20 (149 and -4 degrees Fahrenheit). Similarly, the unit should not be kept at temperatures other than -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) when stored. The unit may have some components that are sensitive to electrostatic discharge (abbreviated ESD). It is not affected by contact discharges up to 4 kV and air discharges up to 8 kV. At frequencies of 10 to 500 Hz, the 2080-LC50-48QWB May vibrate up to 2 G and shock up to 25 g. The 2080-LC50-48QWB Series controller Micro 850 includes a USB interface that allows a standard USB cable to be applied to the module and used as a programming cable. The controller also includes a 10/100 Base-T port for Ethernet networking. The port is embedded with yellow and green LED lights that serve as indicators to inform the user when a transmission or receiving state, such as module or network status, is being made. The module contains a number of additional features, including Run Mode Change (RMC) and Run Mode Configuration Change (RMCC) capabilities, enabling memory storage and increased productivity. The 2080-LC50-48QWB controller weighs approximately 1.60 pounds (0.725 kg) and measures approximately 3.54 x 9.37 x 3.15 inches (or 90 x 238 x 80 mm).
The Allen-Bradley 2080-LC50-48QWB is a programmable logic controller (PLC) in the Micro 850 family. The controller family is a range of compact, cost-effective controllers ideal for micro and small automation requirements. The controller can be mounted on a DIN rail and supports direct panel mounting through the provided mounting holes.

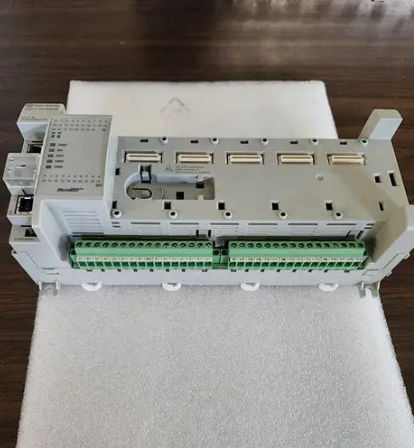

2080-LC50-48QWB 逻辑控制器 安装在DIN导轨
