MPL-B430P-MK74AA 同步伺服电机 伺服驱动器
【产品详情】

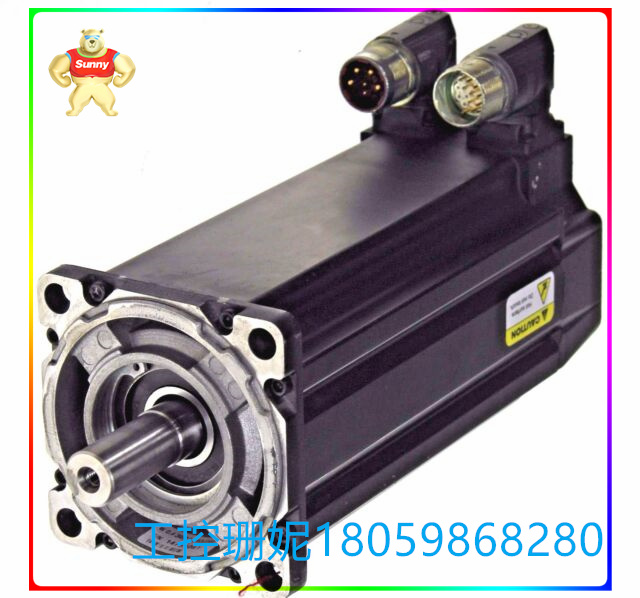

Allen-Bradley MPL-B430P-MK74AA 是 Allen-Bradley 的 Kinetix 旋转运动产品的一部分。它是一款 400 V 级无刷交流同步伺服电机,通常与伺服驱动器配对以接收要实现的运动命令。该伺服电机的框架尺寸为 115 mm,磁体堆叠长度为 76.2 mm(3.0 英寸),额定转速为 5000 rpm。它配备了一个多圈、1024 正弦/余弦、绝对编码器(Hiperface 协议),用作连接到伺服驱动器以提供运动反馈的反馈设备。此外,MPL-B430P-MK74AA 具有用于动态制动的集成 24 V 直流制动单元,这是实现精确运动控制的基本功能。该伺服电机没有轴键,也没有预涂轴封。MPL-B430P-MK74AA 专门设计用于各种 Kinetix 伺服驱动器,例如 Kinetix 5500、Kinetix 6200/6500、Kinetix 6000、Kinetix 300/350、Kinetix 2000、Kinetix 7000 和 Ultra3000。它专门设计用于包装、加工、物料搬运、电子装配、汽车和金属成型应用。伺服电机外壳的防护等级最低为IP50,不带轴封,但通过使用环境密封电缆和轴封,可以提高到IP66。适用于该伺服电机的轴封是 MPL-SSN-A4B4。轴封应根据电机的使用情况每 12 个月或每 3 个月维修一次。MPL-B430P-MK74AA 的连续失速扭矩为 6.55 N-m (58 lb-in),峰值失速扭矩为 19.8 N-m (175 lb-in),电机额定输出功率为 2.2 kW,转子惯量为 0.00038 kg-m2 (0.00033 lb-in-s2)。
Allen-Bradley MPL-B430P-MK74AA 是一款低惯量、高输出无刷电机,采用创新设计功能,在提供高扭矩的同时最大限度地减小电机尺寸。该系列伺服电机属于 MP 系列高性能机器。该系列设计具有各种高性价比和高性能功能,以满足高性能运动系统的高要求。MPL-B430P-MK74AA 是一款可调可变驱动器,通常与同一制造商的 Ultra 3000 伺服、Kinetix 7000、Kinetix 6000 和 Kinetix 3000 驱动器系列结合使用。Allen-Bradley MPL-B430P-MK74AA 具有 0.26-163 Nm (2.3-1440 lb-in.) 的连续失速扭矩、0.77-278 Nm (6.8-2460 lb-in.) 的峰值扭矩,以及集成的 24V 断路选项。它配有薄型和现场可逆电机连接器,可减少电机对机器设计的影响。它有一个DIN连接器,支持连接器的灵活方向,以及与MP系列电机的所有其他产品一起使用单个电缆系列。MPL-B430P-MK74AA 适用于各种低惯量伺服电机,用于包装、加工、金属成型、汽车、物料搬运和电气装配应用。它是一款低惯量无刷伺服电机,电压功率为 460 V,框架尺寸为 4 个,尺寸为 115 毫米(4.53 英寸),堆叠长度为 30-76.2 毫米(3 英寸)。此外,它还配备了一个多圈高分辨率编码器,可实现绝对响应和高达 5000 RPM 的转速。MPL-B430P-MK74AA 配有无键轴延长件、SpeedTEC BIN 连接器、直角、IEC 公制、自由安装孔、180 度可旋转以提供快速连接和 24V 直流制动器。
MPL-B430P-MK74AA 同步伺服电机 伺服驱动器
【英文介绍】
Allen-Bradley MPL-B430P-MK74AA is part of Allen-Bradley's Kinetix Rotary motion products. It is a 400 V class brushless AC synchronous servo motor, usually paired with a servo drive to receive the motion commands to be achieved. The servo motor has a frame size of 115 mm, a magnet stack length of 76.2 mm (3.0 in) and a rated speed of 5,000 rpm. It is equipped with a multi-turn, 1024 sine/cosine, absolute encoder (Hiperface protocol) used as a feedback device connected to a servo drive to provide motion feedback. In addition, the MPL-B430P-MK74AA has an integrated 24 V DC brake unit for dynamic braking, which is an essential function for precise motion control. The servo motor has no shaft key and no pre-coated shaft seal. The MPL-B430P-MK74AA is specifically designed for use with various Kinetix servo drives, Examples include Kinetix 5500, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 and Ultra3000. It is specifically designed for packaging, processing, material handling, electronic assembly, automotive and metal forming applications. The servo motor housing has a minimum protection rating of IP50 without shaft seals, but this can be increased to IP66 by using environmentally sealed cables and shaft seals. The shaft seal suitable for this servo motor is MPL-SSN-A4B4. The shaft seal should be repaired every 12 months or every 3 months depending on the use of the motor. The MPL-B430P-MK74AA has a continuous stall torque of 6.55 N-m (58 lb-in), a peak stall torque of 19.8 N-m (175 lb-in), and a rated motor output of 2.2 kW. The rotor inertia is 0.00038 kg-m2 (0.00033 lb-in-s2).
The Allen-Bradley MPL-B430P-MK74AA is a low-inertia, high-output brushless motor with innovative design features that provide high torque while minimizing motor size. This series of servo motor belongs to MP series high performance machine. The series is designed with a variety of cost-effective and high-performance features to meet the high requirements of high-performance motion systems. The MPL-B430P-MK74AA is an adjustable variable drive that is typically used in combination with the same manufacturer's Ultra 3000 servo, Kinetix 7000, Kinetix 6000, and Kinetix 3000 drive families. Allen-Bradley MPL-B430P-MK74AA has a continuous stall torque of 0.26-163 Nm (2.3-1440 lb-in.), a peak torque of 0.77-278 Nm (6.8-2460 lb-in.), And an integrated 24V break option. It is equipped with thin and field reversible motor connectors that reduce the impact of motors on machine design. It has a DIN connector, supports flexible orientation of the connector, and uses a single cable family with all other products of the MP series motor. The MPL-B430P-MK74AA is suitable for a wide range of low inertia servo motors for packaging, processing, metal forming, automotive, material handling and electrical assembly applications. It is a low-inertia brushless servo motor with a voltage power of 460 V, a frame size of 4, a size of 115 mm (4.53 in), and a stack length of 30-76.2 mm (3 in). In addition, it is equipped with a multi-turn high-resolution encoder for absolute response and speeds up to 5000 RPM. The MPL-B430P-MK74AA is equipped with keyless shaft extensions, SpeedTEC BIN connectors, right angles, IEC metric, free mounting holes, 180 degrees rotable for fast connections and 24V DC brakes.
MPL-B430P-MK74AA 同步伺服电机 伺服驱动器
