1794-IRT8 热电偶和 RTD 模块 端子底座和电源适配器
【产品详情】

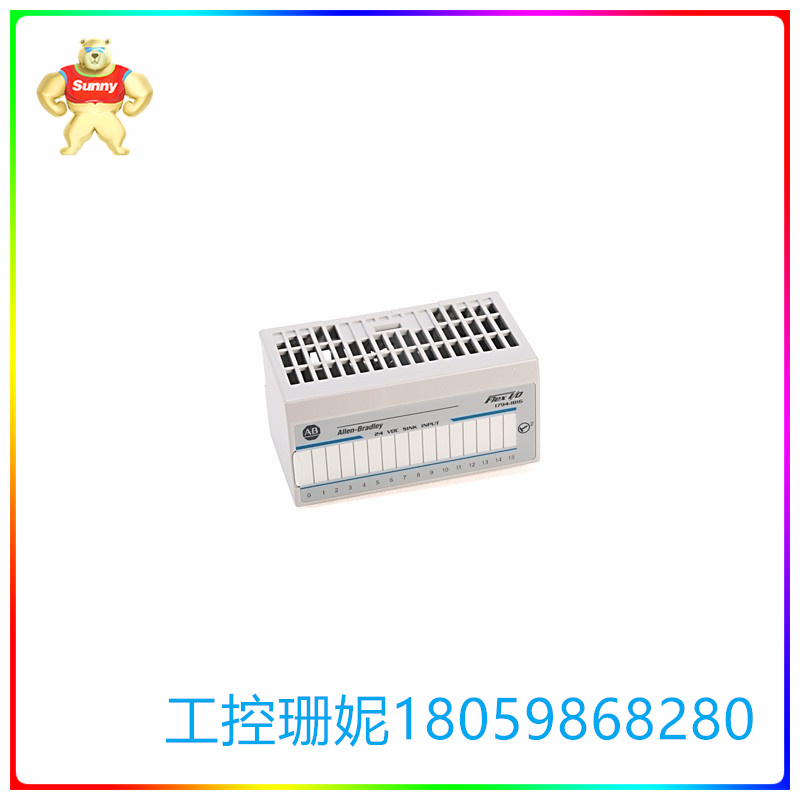

1794-IRT8 模块是 Allen-Bradley FLEX I/O 毫伏、热电偶和 RTD 模块。在 FLEX I/O 系统中,1794-IRT8 模块连接到端子底座和电源适配器。
Allen-Bradley 1794-IRT8 随附 2 个冷端补偿器。该冷端补偿器提高了热电偶模式下模块的精度。1794-IRT8 模块的额定电压为 24 伏直流和 8 个模拟输入。它可以连接到多达 8 个 RTD 或热电偶输入。1794-IRT8 模块的前面板有一个标识模块的铭牌、一个用户可以自定义的可拆卸标签、一个按键开关位置指示灯和 LED 状态指示灯。
该模块兼容的 RTD 传感器是 2 线、3 线和 4 线 RTD,例如 100 ?铂?= 0.00385 欧元 -200...870 摄氏度 (-328...1598 华氏度) 200 ?铂?= 0.00385 欧元 -200...400 摄氏度 (-328...752 °F) 100 ?铂?= 0.003916 美国 -200...630 °C (-328...1166 华氏度) 100 ?铂?= 0.003916 美国 -200...400 摄氏度 (-328...752 °F) 100 ?镍-60...250 °C (-76...482 华氏度) 200 ?镍-60...200 °C (-76...362) 华氏度) 120 ?镍-80...320 °C (-112...608 °F) 10 ?铜-200...260 °C (-328...470°F)。该模块支持的热电偶传感器有 B、E、J、K、TXK/XK(L)、N、R、S 和 T 型热电偶。
该模块的分辨率为 14 位,具有可选的数据格式,例如 °C(隐含小数点 XXX.X)、°F(隐含小数点 XXX.X)、°K(隐含小数点 XXX.X)-32767...32767 0...65535 0...5000 欧姆模式(隐含小数点 XXX.X)-4000...+10000 毫伏模式(隐含小数点 XXX.XX)。
1794-IRT8 具有嵌入式诊断功能,包括开路检测,其中模块读数在 RTD 和热电偶模式下升级或默认为最大值。它还具有 2 次扫描的开路输入检测时间,在 25 °C 下连续具有 15V DC 的过压能力。 接线信号接线时,推荐的电线是 TC 制造商指定的热电偶线和用于毫伏信号的 Belden 8761。
1794-IRT8 热电偶和 RTD 模块 端子底座和电源适配器
【英文介绍】
The 1794-IRT8 module is an Allen-Bradley FLEX I/O millivolt, thermocouple, and RTD module. In the FLEX I/O system, the 1794-IRT8 module is connected to the terminal base and power adapter.
Allen-Bradley 1794-IRT8 comes with 2 cold end compensators. The cold-end compensator improves the precision of the module in thermocouple mode. The 1794-IRT8 module has a rated voltage of 24 volts DC and 8 analog inputs. It can be connected to up to 8 RTD or thermocouple inputs. The front panel of the 1794-IRT8 module has a nameplate identifying the module, a user customizable detachable label, a key switch position indicator and an LED status indicator.
The RTD sensors compatible with this module are 2-wire, 3-wire and 4-wire RTDS, such as 100? Platinum? = 0.00385 euros -200... 870 degrees Celsius (-328... 1598 degrees Fahrenheit) 200? Platinum? = 0.00385 euros -200... 400 degrees Celsius (-328... 752 °F) 100? Platinum? = 0.003916 United States -200... 630 °C (-328... 1166 degrees Fahrenheit) 100? Platinum? = 0.003916 United States -200... 400 degrees Celsius (-328... 752 °F) 100? Nickel-60... 250 °C (-76... 482 degrees Fahrenheit) 200? Nickel-60... 200 °C (-76... 362) Fahrenheit) 120? Nickel-80... 320 °C (-112... 608 °F) 10? Copper -200... 260 °C (-328... 470°F). The thermocouple sensors supported by this module are B, E, J, K, TXK/XK (L), N, R, S and T thermocouples.
The module has a resolution of 14 bits and has optional data formats such as °C (hidden decimal point XXX.X), °F (hidden decimal point XXX.X), °K (hidden decimal point XXX.X) -32767... 32767 0... 65535 0... 5000 ohm pattern (implied decimal point XXX.X) -4000... +10000 millivolt mode (implied decimal point XXX.XX).
The 1794-IRT8 features embedded diagnostics, including open circuit detection, where module readings are upgraded or default to maximum values in RTD and thermocouple modes. It also has an open input detection time for 2 scans and an overvoltage capability of 15V DC continuously at 25 °C. When wiring signals, the recommended wires are TC manufacturer specified thermocouple wires and Belden 8761 for millivolt signals.
