2198-H015-ERS 伺服驱动器 建立在集成架构中端系统
【产品详情】

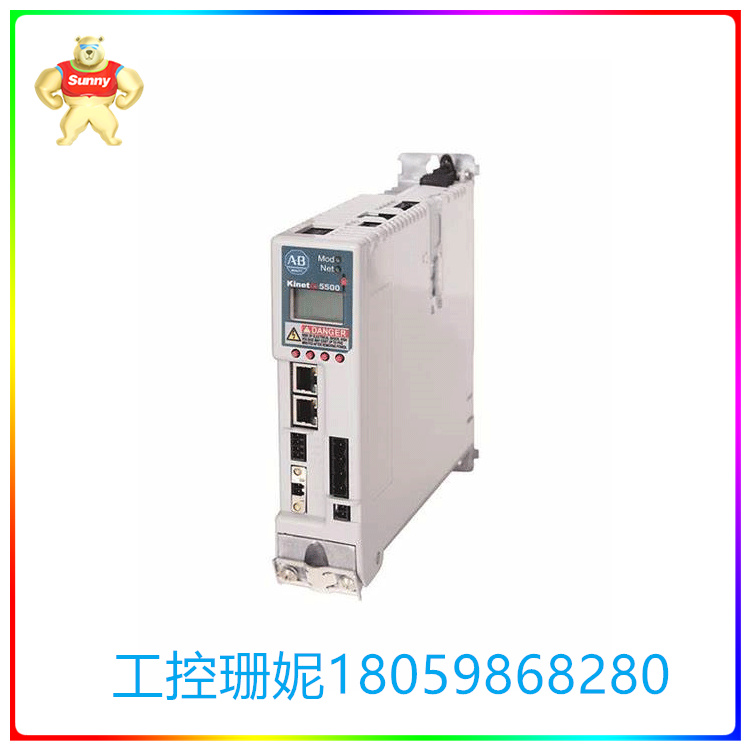

Allen-Bradley 2198-H015-ERS 是一款 Kinetix 5500 伺服驱动器。该驱动器建立在集成架构中端系统之上。Kinetix 5500 伺服驱动器产品系列(包括 2198-H015-ERS)通过以太网 I/P 集成了安全和运动功能,能够驱动伺服电机和感应电机,以及用于系统实时监控和性能评估的数字反馈。
2198-H015-ERS 设计用于在各种输入电源电压范围内运行,例如 195-264V rms、标称电压为 240VAC 的 1 相、195-264V rms、标称电压为 240VAC 的 3 相和 324...528V rms,三相,标称电压 480VAC。它在 324-528Vrms 三相电源时的输入电流要求为 5.2A,在 195-264VAC、1 相电压下为 3.4A 时。该伺服驱动器的短路额定电流为 200,000 A 对称。
2198-H015-ERS 的输出特性包括 4kHz 的 PWM 频率、300 Hz 的最大速度环路和 1000 Hz 的电流环路。伺服驱动器的连续输出电流 (rms) 为 5.0 A,连续输出电流 (0-pk) 为 7.1 A,峰值输出电流 (rms 为 12.5 A,峰值输出电流 (0-pk) 为 17.7 A。2198-H015-ERS 在 195...264V rms,单相;1.5 KW 时为 195...264V rms,三相和 3.2 kW,324...528V rms,三相。
可以使用内置的双以太网通信接口完成集成,该接口可用于线性和环形拓扑结构。这些以太网端口还允许实施集成的安全和运动控制。
2198-H015-ERS 驱动器是一种伺服电机设备,是 Allen-Bradley 制造的 Kinetix 5500 伺服驱动器的一部分。伺服电机驱动器是满足工业应用需求的电子放大器设备。伺服电机驱动器有助于监控反馈信号并进行调整以继续系统中的偏差。它从控制系统获取输入信号,放大信号,然后将电流传输到伺服电机,以产生与指令信号成正比的运动。2198-H015-ERS 驱动器的机身尺寸为 2,出于安全目的,它完全硬接线。伺服电机装置配有反馈装置,用于将有关系统运行状况和状态的实时信息传递给用户。伺服电机的输入电压支持 190 至 264 伏 RMS 的单相操作和 324 至 528 V RMS 的三相操作。伺服电机装置的峰值输出电流为 12.5 安培。它还可以在 0 到峰值电流的连续输出电流下工作,电流为 7.1 安培。标称驱动电压使用 240 伏单相电压和 240 至 480 伏电压和三相电流。
2198-H015-ERS 驱动器配有两 (2) 个以太网通信端口,可用于线性和设备级环网 (DLR) 拓扑。电机设备的尺寸为 2.16 英寸 x 8.90 英寸 x 10.43 英寸。电机装置的紧凑尺寸使得伺服电机易于在小型工厂位置安装。伺服电机重 5 磅,由控制器、电机、驱动器和反馈系统组成。电流。
2198-H015-ERS 采用经济高效的设计,功耗低于其他伺服电机驱动器。2198-H015-ERS 变频器必须封装在接地结构外壳中,该外壳应提供 IEC 529 标准要求的防护等级。外壳还有助于驱动器符合 UL 和 CE 要求。
2198-H015-ERS 伺服驱动器 建立在集成架构中端系统
【英文介绍】
Allen-Bradley 2198-H015-ERS is a Kinetix 5500 servo drive. The driver is built on top of a mid-end system in an integrated architecture. The Kinetix 5500 servo drive product family, including 2198-H015-ERS, integrates safety and motion functions via Ethernet I/P, the ability to drive servo and induction motors, and digital feedback for real-time system monitoring and performance evaluation.
The 2198-H015-ERS is designed to operate in a variety of input supply voltage ranges, such as 195-264V rms, 1 phase with a nominal voltage of 240VAC, 195-264V rms, 3 phase with a nominal voltage of 240VAC, and 324... 528V rms, three phase, nominal voltage 480VAC. Its input current requirements are 5.2A at 324-528Vrms three-phase power supply and 3.4A at 195-264VAC, 1-phase voltage. The servo driver has A symmetrical short circuit current rating of 200,000 A.
The output characteristics of the 2198-H015-ERS include a PWM frequency of 4kHz, a maximum speed loop of 300 Hz, and a current loop of 1000 Hz. The servo driver has continuous output current (rms) of 5.0A, continuous output current (0-pk) of 7.1A, peak output current (rms of 12.5A, peak output current (0-pk) of 17.7A. 2198-H015-ERS in 195... 264V rms, single phase; 195 at 1.5KW... 264V rms, three-phase and 3.2kW, 324... 528V rms, three-phase.
Integration can be accomplished using the built-in dual Ethernet communication interface, which can be used for both linear and ring topologies. These Ethernet ports also allow for integrated security and motion control.
The 2198-H015-ERS drive is a servo motor device that is part of the Kinetix 5500 servo drive manufactured by Allen-Bradley. Servo motor drivers are electronic amplifiers that meet the needs of industrial applications. Servo motor drivers help monitor feedback signals and make adjustments to continue deviations in the system. It takes the input signal from the control system, amplifies the signal, and then transmits the current to the servo motor to produce a motion proportional to the command signal. The body size of the 2198-H015-ERS driver is 2 and it is completely hardwired for safety purposes. The servo motor unit is equipped with a feedback device that transmits real-time information about the health and status of the system to the user. The input voltage of the servo motor supports single-phase operation of 190 to 264 V RMS and three-phase operation of 324 to 528 V RMS. The peak output current of the servo motor unit is 12.5 amps. It can also operate at a continuous output current from 0 to peak current, with a current of 7.1 amps. The nominal drive voltage uses 240 volts single-phase voltage and 240 to 480 volts and three-phase current.
The 2198-H015-ERS driver is equipped with two (2) Ethernet communication ports for linear and device-level ring network (DLR) topologies. The dimensions of the motor equipment are 2.16 inches x 8.90 inches x 10.43 inches. The compact size of the motor unit makes servo motors easy to install in small factory locations. The servo motor weighs 5 pounds and consists of a controller, motor, drive and feedback system. Electricity.
The 2198-H015-ERS features a cost-effective design with lower power consumption than other servo motor drivers. The 2198-H015-ERS frequency converter must be enclosed in a grounded structural housing that provides the level of protection required by the IEC 529 standard. The housing also helps the drive comply with UL and CE requirements.
