2711P-T15C4D8 操作终端 人机界面 (HMI) 设备
【产品详情】
2711P-T15C4D8的技术参数
输入电压范围: 18-30伏直流电
操作员输入: 触摸
产品类型: PanelView Plus 6 1500 操作终端
产品系列: PanelView Plus 6 操作终端
制造者: 罗克韦尔自动化
生命周期状态: 生命周期结束

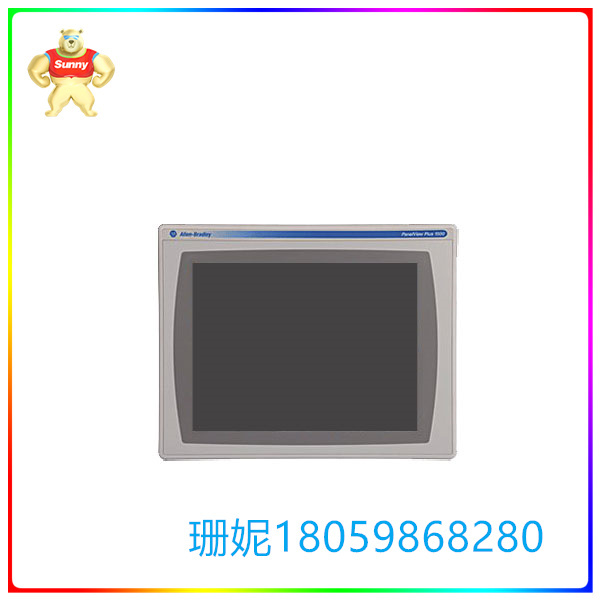

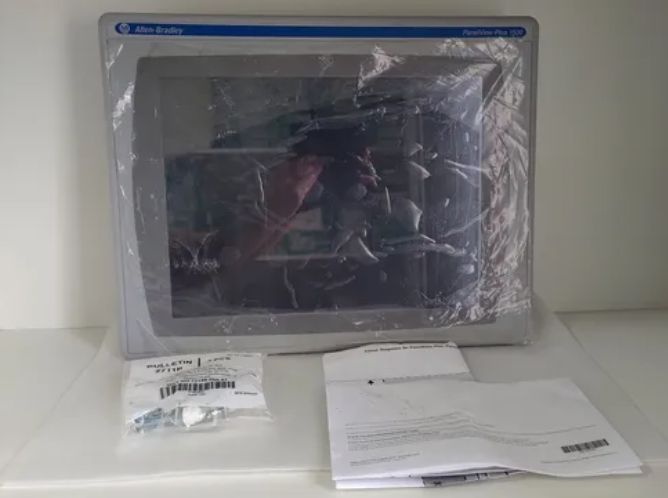

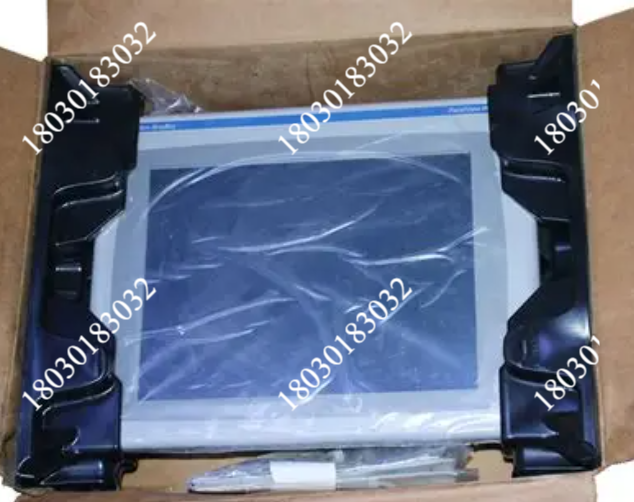

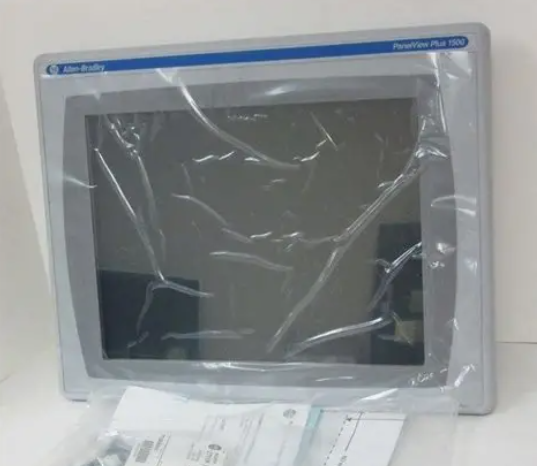

目录号为 2711P-T15C4D8 的 PanelView Plus 6 操作终端是 Allen-Bradley 制造的可视化硬件。该操作终端特别属于 PanelView Plus 6 1500 子类别。
2711P-T15C4D8通常称为人机界面 (HMI) 设备。通过模拟电阻式触摸屏,驱动寿命为 100 万次按压。该触摸界面允许交互和发起表彰,而无需使用 HMI 键盘。
15 英寸屏幕,分辨率为 1024 x 768,采用 18 位彩色图形,有效可视区域为 304 x 228 毫米(12.0 x 9.0 英寸)。该屏幕配有可现场更换的背光,在 25 °C (77 °F) 下的预期使用寿命为 50,000 小时。
2711P-T15C4D8 设计用于标识为 I 类 2 分区 A、B、C 和 D 组、II 类 2 分区 F 和 G 组以及 III 类危险场所的安装。该操作终端齐平安装在具有 NEMA/UL 12、13、4X 型(仅限室内使用)和 IEC IP54、IP65 防护等级的外壳的外壳上的外壳上。创建一个尺寸为 154 (6.08) H x 220 (8.67) W 的面板切口,
用户可以通过触摸屏控制操作员界面以输入信息和数据。本机使用 18 至 32 伏直流电源输入供电。该 2711P-T15C4D8 单元具有 512 MB RAM 和 512 MB 非易失性内部存储器。该装置的大约运输重量和尺寸为 13 磅和 20 x 14 x 8 英寸。
该操作终端有一个以太网端口,可连接到以太网/IP 网络上的控制器。此端口也可以用于应用程序传输和打印。Ethernet/IP 屏幕显示并允许用户修改 PanelView 终端的某些 Ethernet/IP 通信设置。
2711P-T15C4D8 操作终端 人机界面 (HMI) 设备
【英文介绍】
Technical parameters of 2711P-T15C4D8
Input voltage range: 18-30 volts DC
Operator input: Touch
Product type: PanelView Plus 6 1500 Operation terminal
Product Series: PanelView Plus 6 Operation terminal
Manufacturer: Rockwell Automation
Life cycle status: The life cycle ends
The PanelView Plus 6 operating terminal, catalog number 2711P-T15C4D8, is a visualization hardware manufactured by Allen-Bradley. This operation terminal falls specifically into the PanelView Plus 6 1500 subcategory.
The 2711P-T15C4D8 is commonly referred to as a Human Machine interface (HMI) device. With a simulated resistive touch screen, the drive life is 1 million presses. The touch interface allows interaction and initiation of recognition without the need for an HMI keyboard.
A 15-inch screen with a resolution of 1024 x 768 and 18-bit color graphics with an effective viewing area of 304 x 228 mm (12.0 x 9.0 inches). The screen has a field replaceable backlight and an expected service life of 50,000 hours at 25 °C (77 °F).
2711P-T15C4D8 is designed to identify installations in Class I 2 Zones A, B, C and D, Class II 2 Zones F and G, and Class III hazardous sites. The operating terminal is mounted flush on a housing with enclosures of NEMA/UL Type 12, 13, 4X (for indoor use only) and IEC IP54, IP65 protection grades. Create a panel notch with dimensions 154 (6.08) H x 220 (8.67) W,
The user can control the operator interface through the touch screen to enter information and data. The unit uses 18 to 32 volts DC power input. The 2711P-T15C4D8 unit has 512 MB of RAM and 512 MB of non-volatile internal memory. The approximate shipping weight and dimensions of the unit are 13 pounds and 20 x 14 x 8 inches.
The operating terminal has an Ethernet port that connects to the controller on the Ethernet /IP network. This port can also be used for application transfer and printing. The Ethernet/IP screen displays and allows the user to modify some Ethernet/IP communication Settings for the PanelView terminal.
