25B-D2P3N114 变频驱动器 可调速驱动器

【产品详情】

25B-D2P3N114的技术参数

品牌 艾伦-布拉德利

输入电压： 323-528 伏交流电

内置通讯端口： 以太网 I/P / RS485

集成安全： 安全转矩关闭 （STO） 功能

PointStop 技术： 综合

控制方法： 伏特/赫兹 （V/Hz）、无传感器矢量控制 （SVC）、闭环速度矢量控制和永磁电机控制。

外壳防护等级： IP20 / NEMA UL 型开放

零堆叠： 支持

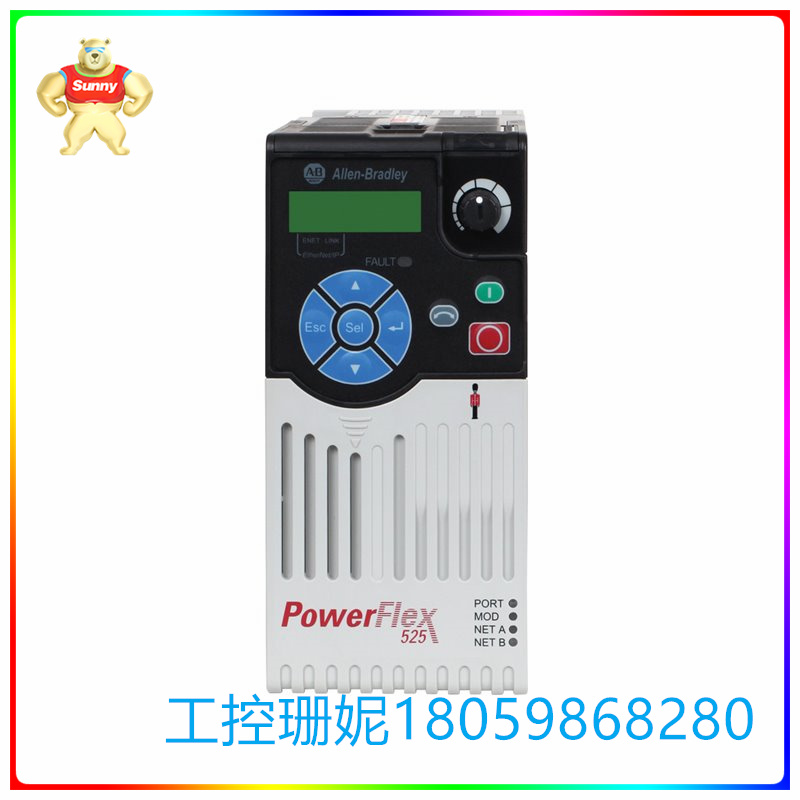

Allen-Bradley 25B-D2P3N114是Allen-Bradley公司的变频驱动器（VFD）。该变频器是 PowerFlex 525 变频器产品系列中专门的一部分，该产品系列适用于工业应用，可满足现代集成和连接要求，以实现操作灵活性和效率。

其他工厂人员将该设备称为变速驱动器 （VFD）、可调速驱动器、变频器、变频器或简称为电机驱动器。所有这些术语都是指这种实现基本电机控制以及交流电机调速控制的电子设备。该驱动器在 480VAC 的输入电源电压下工作，在 47-63Hz 的输入频率范围内为三相。它提供 0.75 kW 或 1.0 HP、2.3 A 的输出功率和 0-500 Hz 的完全可编程频率。 对于变频器配置，它提供了一个集成的人机接口模块（HI），带有LCD显示屏和嵌入式按键，允许在发生错误时对变频器进行本地操作、配置和故障排除。

该驱动器的其他内置功能包括集成 EMC 滤波器、内置 I/O 端子，由七 （7） 个灌/拉离离输入、一 （1） 个常开、一 （1） 个常开触点继电器触点输出、两 （2） 个数字/光耦合器输出、两 （2） 个 0-10VDC 组成;0-20mA 模拟输入，一 （1） 个 0-10VDC;0-20mA模拟输出和电位器端子。

它具有 CustomView、AppView、MainsFree 和 QuickView 编程和配置工具，并结合了广泛的通信和电机控制选项，使其成为不同行业不同应用的理想选择。其紧凑的设计和在 0 至 45 摄氏度大气温度下的零堆叠能力有助于在安装过程中最大限度地利用面板空间。25B-D2P3N114 PowerFlex 变频器的可拆卸控制模块可通过 USB 电缆连接到 PC，以便通过 MainsFree 配置快速上传和下载变频器数据和配置，并且该变频器支持同时使用多达 2 个附件卡，而不会改变其占用空间。为了在未接地的配电系统中实现无故障运行，25B-D2P3N114 PowerFlex 变频器利用其连接到地面的可拆卸金属氧化物压敏电阻 （MOV） 的电源。它还集成了一些其他保护功能，包括总线欠压跳闸、总线过压跳闸、100毫秒功率穿越、电机过载保护、过流保护以及驱动输出端的相间和相位接地保护。25B-D2P3N114 PowerFlex 变频器提供四 （4） 个独立可编程的加速和减速时间，可配置为 0 到 600 秒之间的任何设置。该驱动器具有 A 型机架尺寸，安装在 IP20 NEMA 外壳中，适合在不同环境中使用，前提是它不暴露在腐蚀性气体、蒸汽或直接雨中和阳光下。

25B-D2P3N114 变频驱动器 可调速驱动器

【英文介绍】

Technical specifications of 25B-D2P3N114

Brand Allen Bradley

Input voltage: 323-528 volts AC

Built-in communication port: Ethernet I/P/RS485

Integrated Safety: Safe Torque Off (STO) function

PointStop Technology: Integrated

Control methods: Volt/Hertz (V/Hz), sensorless vector control (SVC), closed-loop velocity vector control and permanent magnet motor control.

Enclosure protection class: IP20 / NEMA UL type open

Zero stack: Supported

The Allen-Bradley 25B-D2P3N114 is a variable-frequency drive (VFD) from Allen-Bradley. The drive is a dedicated part of the PowerFlex 525 drive product family for industrial applications that meets modern integration and connectivity requirements for operational flexibility and efficiency.

Other plant personnel refer to the device as a variable speed drive (VFD), a variable speed drive, a frequency converter, a frequency converter, or simply a motor drive. All of these terms refer to this electronic device that enables basic motor control as well as AC motor speed control. The driver operates at an input supply voltage of 480VAC and is three-phase in the input frequency range of 47-63Hz. It offers 0.75 kW or 1.0 HP, 2.3 A output power, and a fully programmable frequency of 0-500 Hz. For the inverter configuration, it offers an integrated Human Machine interface module (HI) with LCD display and embedded keys that allow local operation, configuration and troubleshooting of the inverter in the event of an error.

Additional built-in features of the driver include an integrated EMC filter, built-in I/O terminals, consisting of seven (7) perfusion/pull away inputs, one (1) normally open, one (1) normally open contact relay contact outputs, two (2) digital/optical coupler outputs, and two (2) 0-10VDC; 0-20mA analog input, one (1) 0-10VDC; 0-20mA analog output and potentiometer terminals.

It has CustomView, AppView, MainsFree and QuickView programming and configuration tools combined with a wide range of communication and motor control options, making it ideal for different applications in different industries. Its compact design and zero stacking capability at atmospheric temperatures of 0 to 45 degrees Celsius help to maximize the use of panel space during installation. The detachable control module of the 25B-D2P3N114 PowerFlex drives can be connected to a PC via a USB cable for quick upload and download of drive data and configurations via the MainsFree configuration, and the drives support the simultaneous use of up to 2 accessory cards without changing their footprint. To achieve trouble-free operation in an ungrounded distribution system, the 25B-D2P3N114 PowerFlex inverter utilizes its power supply from a removable metal oxide varistor (MOV) connected to the ground. It also integrates a number of other protection features, including bus undervoltage trip, bus overvoltage trip, 100 ms power crossing, motor overload protection, overcurrent protection, and phase to phase ground protection at the drive output. The 25B-D2P3N114 PowerFlex drives offer four (4) individually programmable acceleration and deceleration times that can be configured for any setting between 0 and 600 seconds. The drive has A Type A frame size and is mounted in an IP20 NEMA housing, making it suitable for use in different environments, provided it is not exposed to corrosive gases, steam or direct rain and sunlight.
