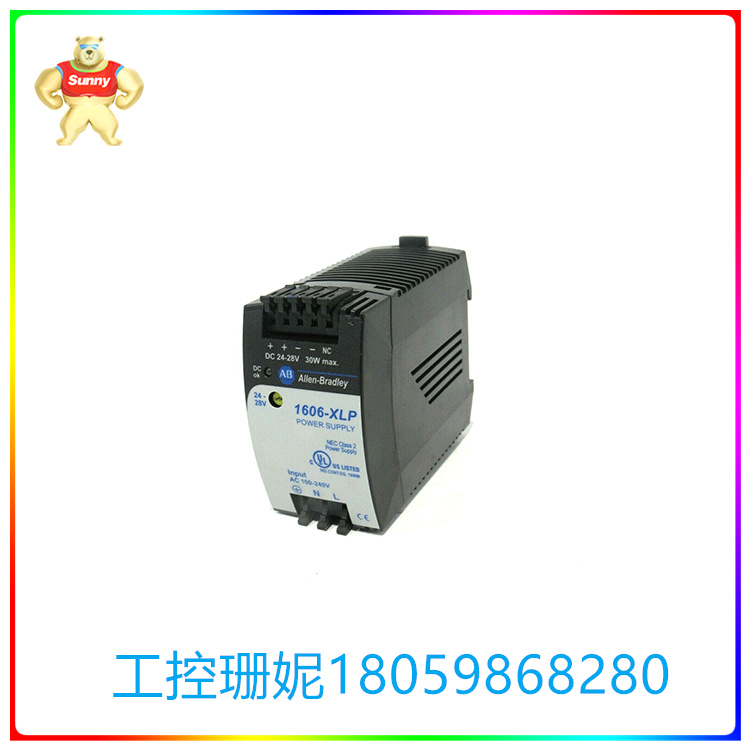

1606-XLP30E 弹簧夹紧电源模块  具有输出噪声抑制功能

【产品详情】

1606-XLP30E 的技术参数

制造者 罗克韦尔自动化

品牌 艾伦-布拉德利

零件编号 1606-XLP30E型

产品类型 开关电源

输入电压 100-240V 交流电

输出功率 004

输出电流 1.3安培

终端 螺丝/弹簧夹

信号 DC-OK （直流就绪）

输出电压 可调

大小 紧凑的

发热 极小

刚果爱国者联盟 10662073044205

联合国和平与合作委员会 39121004

关于1606-XLP30E

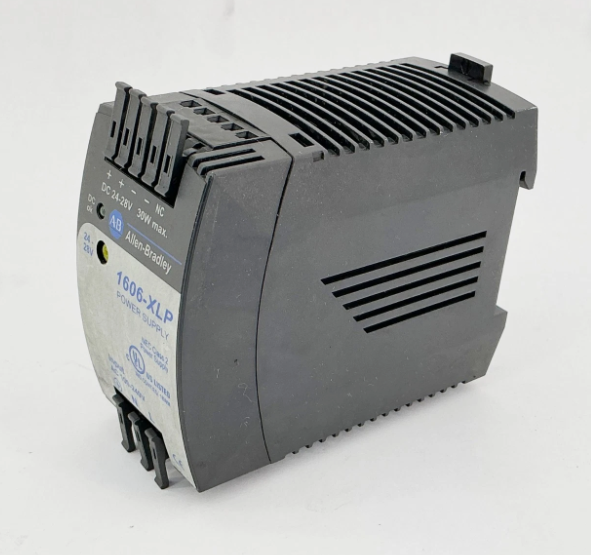

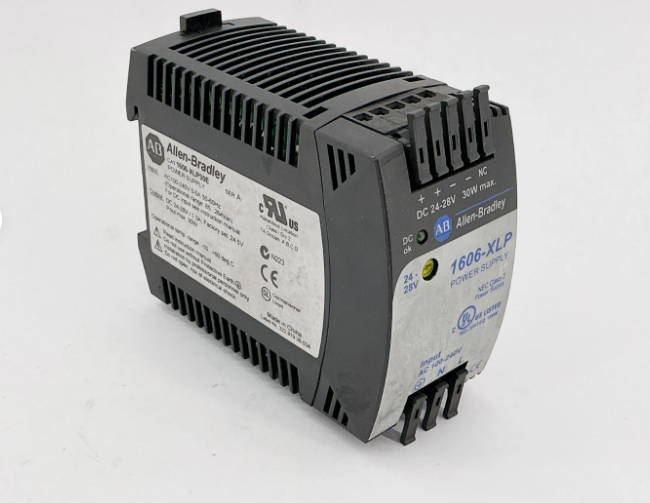

1606-XLP30E 模块是 Allen-Bradley/Rockwell Automation 的螺钉/弹簧夹紧电源模块。模块正常运行的额定功率输出为 30 瓦。该模块的输入电压范围为 100 至 240 伏交流电。该器件的额定输出电流为 1.3 安培。模块接受“DC OK”信号，并具有输出电压，可根据操作员的需要进行调整。该模块的发热量保持在最低限度。1606-XLP30E 模块不防水，只能在室内使用。该装置的额定效率为 87.5%，被认为是可靠的设备。根据 Siemensnorm SN 29500 标准，该模块的 MTBF 额定值为 650,000 小时。可以使用DIN导轨安装完成安装。它易于安装。该模块具有 35 伏的回电抗扰度。它还支持并行操作。

1606-XLP30E 模块具有输出噪声抑制功能。辐射 EMI 值保持在 EN50081-I 标准以下，采用非屏蔽输出电缆。模块的运行通过位于模块前面的运行指示灯显示。模块的工作温度在 -10 到 70 摄氏度之间，储存/运输温度在 -25 到 85 摄氏度之间。模块的安装区域应具有 95% 的最大额定湿度。1606-XLP30E 模块符合 CE 和 cUS 标准。该模块的尺寸为 45 x 75 x 91 毫米。该模块具有出色的过载设计，可支持高达 1.5 倍的正常负载，无需关断和标称电流。模块不应暴露在腐蚀性气体和蒸气中。

1606-XLP30E 弹簧夹紧电源模块  具有输出噪声抑制功能

【英文介绍】

Technical parameters of 1606-XLP30E

Manufacturer Rockwell Automation

Brand Allen Bradley

Part number Model 1606-XLP30E

Product Type Switching power supply

Input voltage 100-240V AC

Output power 004

Output current 1.3 amps

Terminal screw/spring clamp

Signal DC-OK (DC ready)

The output voltage is adjustable

compact

Minimal heating

Union of Congolese Patriots 10662073044205

United Nations Peace and Cooperation Council 39121004

About 1606-XLP30E

The 1606-XLP30E module is a screw/spring clamp power module from Allen-Bradley/Rockwell Automation. The module has a rated power output of 30 watts for normal operation. The input voltage range of the module is 100 to 240 volts AC. The device has a rated output current of 1.3 amps. The module accepts the "DC OK" signal and has an output voltage that can be adjusted according to the needs of the operator. The heat generation of the module is kept to a minimum. The 1606-XLP30E module is not waterproof and can only be used indoors. The unit has a rated efficiency of 87.5% and is considered a reliable device. According to Siemensnorm SN 29500, the module has an MTBF rating of 650,000 hours. Installation can be done using DIN rail mounting. It is easy to install. The module has a return immunity of 35 volts. It also supports parallel operations.

The 1606-XLP30E module has output noise suppression function. The radiated EMI value is kept below the EN50081-I standard, and an unshielded output cable is used. The operation of the module is indicated by the operation indicator located on the front of the module. Modules operate at temperatures between -10 and 70 degrees Celsius and storage/transport temperatures between -25 and 85 degrees Celsius. The installation area of the module shall have a maximum rated humidity of 95%. The 1606-XLP30E module complies with CE and cUS standards. The module measures 45 x 75 x 91 mm. The module has an excellent overload design and can support up to 1.5 times normal loads without switching off and nominal current. Modules should not be exposed to corrosive gases and vapors.
