2094-BC01-M01-M 多轴伺服驱动器 集成轴(电源)模块
【产品详情】
技术参数 2094-BC01-M01-M
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
重量 12.5磅(5.67公斤)
尺寸 4.9 x 11.9 x 13.2 英寸(125 x 302 x 336 毫米)
工作温度 32-122 F (0-50 摄氏度)
输出电流 9 安培
瓦特数 3.9 kWatts
最大总线电容 4585 微法拉
电源模块 集成轴模块
额定电压 460 伏 (AC)
Nom 驱动电压 360-480 伏(3 相)
零件号/目录号 编号:2094-BC01-M01-M
关于2094-BC01-M01-M

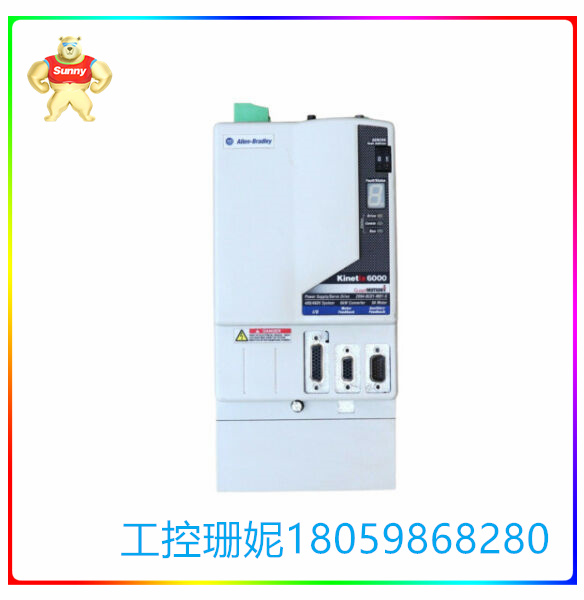

Allen-Bradley 2094-BC01-M01-M 是一款 Kinetix 6200 模块化多轴伺服驱动器。它是一款集成轴(电源)模块 (IAM),带有安全速度监控器和 460V AC 三相输入电源。它包含一个 6 kW 转换器和 9 A 逆变器部分。它需要一个控制模块,尺寸为 4.9 x 11.9 x 13.2 英寸。重量为 12.5 磅
。2094-BC01-M01-M 驱动器旨在为电机或驱动器应用提供集成运动功能
。变频器可以轻松地从安全转矩关闭过渡到安全速度监控器,并从 SERCOS 接口过渡到 EtherNet/IP 网络。它与 Kinetix 6000 伺服驱动器兼容,可在需要时轻松迁移。2094-BC01-M01-M 的嵌入式安全功能消除了对外部安全监视器的额外面板空间和接线的需求。安全速度监控功能允许在不完全停止机器或监控其速度的情况下进行维护工作。
2094-BC01-M01-M 变频器采用模块化设计和嵌入式安全功能,易于维护,具有更大的灵活性。它还简化了布线,减少了备件库存,并且可以通过先进的技术进行修改。它减少了停机时间、能源和生产浪费,并通过安全速度功能提高了运营效率。其嵌入式高级安全功能也有助于保护人员。它不会不必要的启动和停止,从而减少电机的磨损和维护成本。其他安全功能包括安全最大速度、安全最大加速度监控、安全方向监控、零速监控、启用开关控制以及门监控和控制。2094-BC01-M01-M 具有增强的诊断功能,可通过显示错误消息来判断故障的性质。
2094-BC01-M01-M 多轴伺服驱动器 集成轴(电源)模块
【英文介绍】
Technical parameters 2094-BC01-M01-M
Manufacturer Rockwell Automation
Brand Allen Bradley
Weight 12.5 lb (5.67 kg)
Dimensions 4.9 x 11.9 x 13.2 inches (125 x 302 x 336 mm)
Operating temperature 32-122 F (0-50 C)
Output current 9 amps
Watts 3.9 kWatts
Maximum bus capacitance 4585 microfarads
Power module Integrated shaft module
Rated voltage 460 volts (AC)
Nom Drive voltage 360-480 volts (3 phases)
Part Number/Catalog Number: 2094-BC01-M01-M
About 2094-BC01-M01-M
Allen-Bradley 2094-BC01-M01-M is a Kinetix 6200 modular multi-axis servo drive. It is an integrated shaft (Power supply) module (IAM) with a safety speed monitor and a 460V AC three-phase input power supply. It contains A 6 kW converter and a 9 A inverter section. It requires a control module that measures 4.9 x 11.9 x 13.2 inches. It weighs 12.5 pounds
. The 2094-BC01-M01-M drive is designed to provide integrated motion functionality for motor or drive applications
. Inverters can easily transition from safe torque off to safe speed monitor and from SERCOS interface to EtherNet/IP network. It is compatible with Kinetix 6000 servo drives for easy migration when needed. The embedded security features of the 2094-BC01-M01-M eliminate the need for additional panel space and wiring for external security monitors. The safe speed monitoring feature allows maintenance work to be done without completely stopping the machine or monitoring its speed.
The 2094-BC01-M01-M inverter features a modular design and embedded safety features for easy maintenance and greater flexibility. It also simplifies wiring, reduces spare parts inventory, and can be modified with advanced technology. It reduces downtime, energy and production waste, and improves operational efficiency through safe speed features. Its embedded advanced security features also help protect people. It does not start and stop unnecessarily, thus reducing motor wear and maintenance costs. Additional safety features include safe maximum speed, safe maximum acceleration monitoring, safe direction monitoring, zero speed monitoring, enable switch control, and door monitoring and control. The 2094-BC01-M01-M features enhanced diagnostics to determine the nature of the fault by displaying error messages.
