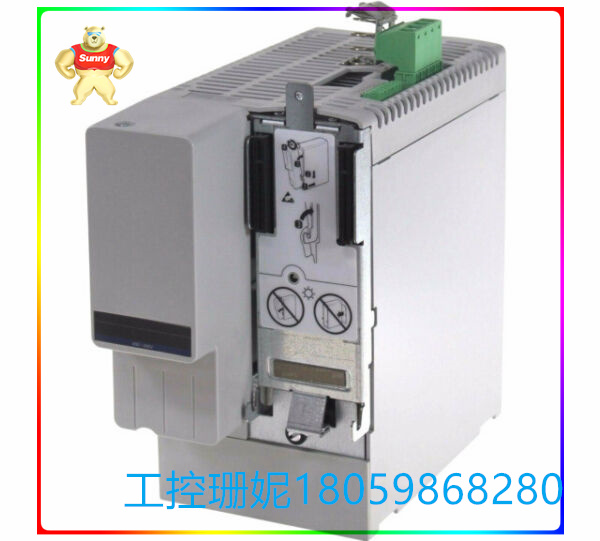

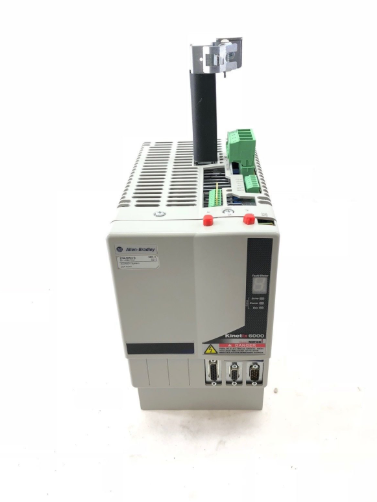

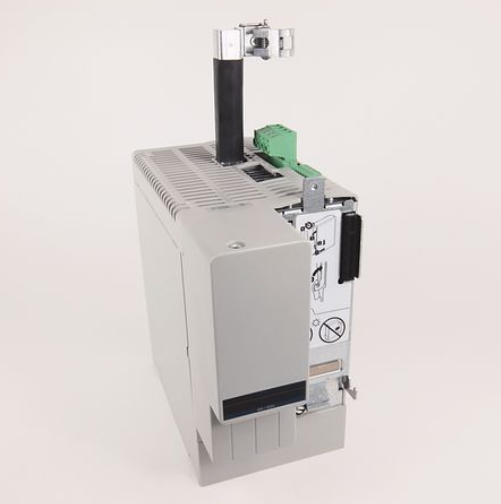

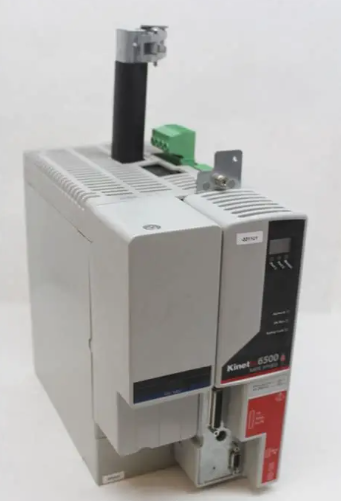

2094-BM03-M 多轴伺服驱动系统组件 集成轴模块




【产品详情】





2094-BM03-M是一款Kinetix 6000多轴伺服驱动系统组件。该组件是属于400VAC级轴模块的轴模块,连续电流为21.2 A,峰值电流为53.0 A。 2904-BM03-M 轴模块通过反馈电缆为旋转电机和衬板电机等运动控制设备提供接口。


该轴模块还提供控制模块的安装,其中集成了来自系统的控制信号,与设备的精确控制有关。该轴模块与集成轴模块、轴模块、分流模块和槽填充模块一起安装在电源轨上。根据系统的控制要求,构成功能性 Kinetix 驱动系统的模块可能会有所不同。


2904-BM03-M 兼容 Kinetix MPL 电机,如 MPL-B540K、MPL-B560F、MPL-B580F、MPL-B640F、MPL-B680D、Kinetix MPM 电机,包括 MPM-B1153T、MPM-B1302T、MPM-B1304M、MPM-B1304M、MPM-B1651F、MPM-B1651M、MPM-B1652E、MPM-B1653C、MPM-B1653E、MPM-B2152C、MPM-B2153B、Kinetix,如 MPF 电机 MPF-B540K 和目录号为 MPS-B560F 的 Kinetix MPS 电机。


它还与LDC-C100600-DHT、LDC-C150400-DHT和LDC-C150600-DHT等直线电机兼容。


2094-BM03-M 的逆变器连续输出额定值为 13.5 kW 和 30 A。它还安装了内分流电阻器和内分流电阻器。它的额定效率为 98%,容能吸附为 840 ?F。 2094-BM03-M 在 20% 负载时具有 94 瓦的连续功耗,在 40% 负载时为 130 瓦,在 60% 负载时为 169 瓦,在 80% 负载时为 211 瓦,在 100% 负载时为 255 瓦。




2094-BM03-M 多轴伺服驱动系统组件 集成轴模块



英文介绍





The 2094-BM03-M is a Kinetix 6000 multi-axis servo drive system component. This assembly is A shaft module belonging to the 400VAC class shaft module with A continuous current of 21.2 A and a peak current of 53.0 A. The 2904-BM03-M shaft module provides interfaces for motion control devices such as rotary motors and liner motors via feedback cables.


The shaft module also provides for the installation of the control module, which integrates the control signals from the system, related to the precise control of the equipment. The shaft module is mounted on the power rail together with the integrated shaft module, shaft module, shunt module and slot filling module. The modules that make up the functional Kinetix drive system may vary depending on the control requirements of the system.


The 2904-BM03-M is compatible with Kinetix MPL motors such as MPL-B540K, MPL-B560F, MPL-B580F, MPL-B640F, MPL-B680D, Kinetix MPM motors, include MPM-B1153T, MPM-B1302T, MPM-B1304M, MPM-B1304M, MPM-B1651F, MPM-B1651M, MPM-B1652E, MPM-B1653C, MPM-B1653E, MPM-B2152C, MPM-B2153B Kinetix, such as the MPF motor MPF-B540K and Kinetix MPS motors with catalog number MPS-B560F.


It is also compatible with linear motors such as LDC-C100600-DHT, LDC-C150400-DHT and LDC-C150600-DHT.


The inverter for the 2094-BM03-M has A continuous output rating of 13.5 kW and 30 A. It is also fitted with an internal shunt resistor and an internal shunt resistor. It has a rated efficiency of 98% and a capacity of 840? F. The 2094-BM03-M has a continuous power consumption of 94 watts at 20% load, 130 watts at 40% load, 169 watts at 60% load, 211 watts at 80% load, and 255 watts at 100% load.
