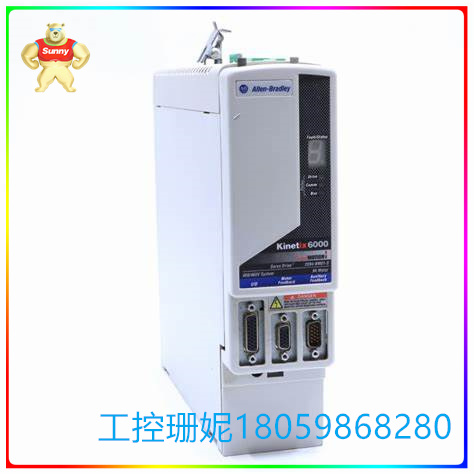

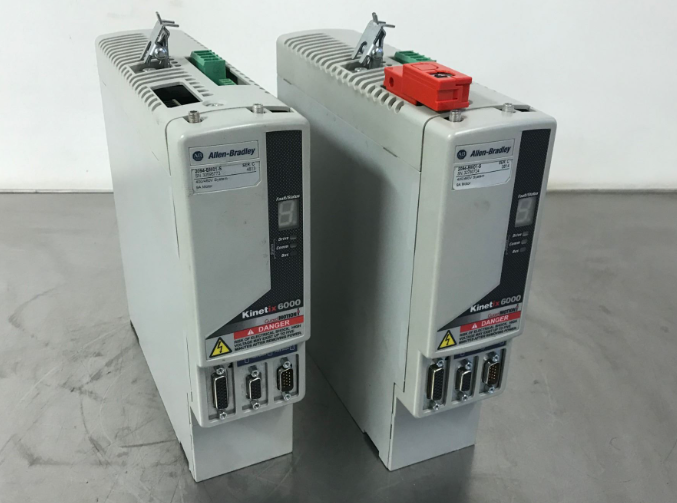

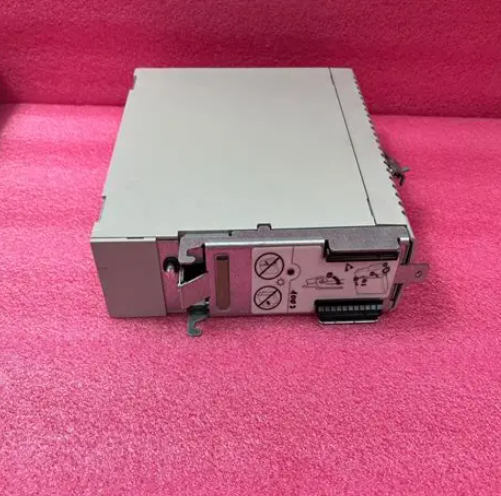

2094-BM01-I Kinetix 6000 轴模块   驱动器的峰值电流输出




【产品详情】



技术参数 2094-BM01

制造者 罗克韦尔自动化

电容 150 ?F

内部分流连续电源 604

Nom 驱动电压 360-480 伏(3 相)

电压等级 400伏

内部分流电阻器 115欧姆

Allen-Bradley 2094-BM01 是一款 Kinetix 6000 轴模块。该轴模块提供 A、B 和 C 系列,与驱动器的峰值电流输出、rms 和 0-pk 输出存在差异。具体来说,A 系列 2094-BM01 的峰值电流 (rms) 为 9.2 安培,峰值输出电流 (0-pk) 为 12.9 安培,而 B 系列和 C 系列驱动器的峰值电流 (rms) 为 15.3 安培,峰值输出电流 (0-pk) 为 21.6 安培。


2094-BM01 的输入电压为 324-528V rms,三相,而标称电压电平为 360 / 480V。速度环路带宽频率为500 Hz,电流环路带宽频率为1300 Hz,脉宽调制(PWM)频率为8 kHz。除了上述额定输出电流外,2094-BM01 的连续输出功率为 3.9 kW。


2094-BM01 带有一个额定值为 115 的内部关闭电阻器。它的效率为98%,电容为150?F,电容能量吸收为19 J,短路电流额定值为200,000 A(rms)对称。


安装此轴模块时,必须遵循所需的最小间隙。具体来说,驱动器下方的间隙为 50.8 英寸(2.0 英寸),用于气流和安装,285 毫米或 11.2 英寸。上面的间隙也用于气流和安装。不需要侧面间隙。安装柜的最小深度必须为 272 毫米或 10.7 英寸。为了降低电气噪声,可以应用高频 (HF) 键合。这种做法基本上是连接金属机箱、组件、框架、屏蔽和外壳,以减轻电磁干扰 (EMI) 的影响。


任何已配置的 Kinetix 6000 系统的基本配置都包括一个公共直流母线电源和多个通过直流母线连接的 Bulletin 2094 轴模块。2094-BM01 具有紧凑的外壳,特别适合用于小型机器。该模块由650伏直流电供电,输出侧可产生3.9 kW的功率。它能够交换额定电压为 230 伏交流电的数字信号。Allen-Bradley 2094-BM01 设计有以太网和 SERCOS 通信插槽,可快速连接到集中式自动化系统。它们与 PLC 交互,为包装机和其他类型的机器提供强大的工具,在这些机器中,通常需要大量的驱动器才能为机器系统带来显着优势。驱动器的外壳防护等级为 IP20,并由内部风扇冷却。安装在外壳内部的热敏电阻如果感应到温度高于 50 摄氏度,将发出温度警报。该热敏电阻将停止模块和与其连接的电机。Allen-Bradley 2094-BM01 模块的近似重量为 2.49 千克(5.5 磅)。其连续额定电流为 6.1 安培,峰值电流为 8.6 安培。这些额定电流是在高速运行中实现的。对于恒速运行,这些电流值会降低。






2094-BM01-I Kinetix 6000 轴模块   驱动器的峰值电流输出



英文介绍





Technical specifications 2094-BM01

Manufacturer Rockwell Automation

Capacity 150? F

Internal shunt continuous power supply 604

Nom Drive voltage 360-480 volts (3 phases)

Voltage class 400 volts

Internal shunt resistor 115 ohms

The Allen-Bradley 2094-BM01 is a Kinetix 6000 axis module. This shaft module is available in the A, B, and C series and differs from the driver's peak current output, rms, and 0-pk output. Specifically, the A Series 2094-BM01 has a peak current (rms) of 9.2 amps and a peak output current (0-pk) of 12.9 amps, while the B Series and C Series drivers have a peak current (rms) of 15.3 amps. The peak output current (0-pk) is 21.6 amps.


The input voltage of the 2094-BM01 is 324-528V rms, three-phase, while the nominal voltage level is 360/480V. The speed loop bandwidth frequency is 500 Hz, the current loop bandwidth frequency is 1300 Hz, and the pulse width modulation (PWM) frequency is 8 kHz. In addition to the above rated output current, the 2094-BM01 has a continuous output power of 3.9 kW.


The 2094-BM01 comes with an internal shutdown resistor rated 115. It has an efficiency of 98% and a capacitance of 150? F, capacitor energy absorption is 19 J, short circuit current rating is 200,000 A (rms) symmetric.


When installing this shaft module, the required minimum clearance must be followed. Specifically, the gap below the drive is 50.8 inches (2.0 inches) for airflow and mounting, 285 mm or 11.2 inches. The upper clearance is also used for airflow and installation. No side clearance required. The minimum depth of the mounting cabinet must be 272 mm or 10.7 inches. To reduce electrical noise, high frequency (HF) bonding can be applied. This practice is basically connecting metal cases, components, frames, shields, and housings to mitigate the effects of electromagnetic interference (EMI).


The basic configuration of any configured Kinetix 6000 system consists of a common DC bus power supply and multiple Bulletin 2094 shaft modules connected via DC buses. The 2094-BM01 has a compact housing that is particularly suitable for small machines. The module is powered by 650 volts of direct current and produces 3.9 kW on the output side. It is capable of exchanging digital signals with a rated voltage of 230 volts AC. The Allen-Bradley 2094-BM01 is designed with Ethernet and SERCOS communication slots for quick connection to centralized automation systems. They interact with PLCS to provide powerful tools for packaging machines and other types of machines, where a large number of drives are often required to bring significant advantages to machine systems. The driver's enclosure is IP20 protected and cooled by an internal fan. The thermistor installed inside the housing will sound a temperature alarm if it senses a temperature above 50 degrees Celsius. The thermistor will stop the module and the motor connected to it. The Allen-Bradley 2094-BM01 module has an approximate weight of 2.49 kg (5.5 lb). The continuous current rating is 6.1 amps and the peak current is 8.6 amps. These current ratings are achieved at high speeds. For constant speed operation, these current values are reduced.
