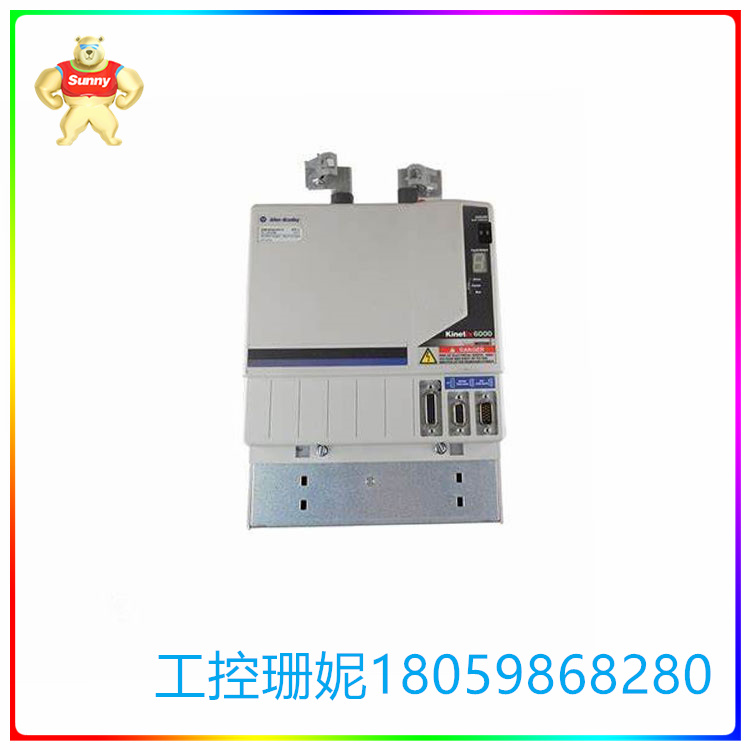

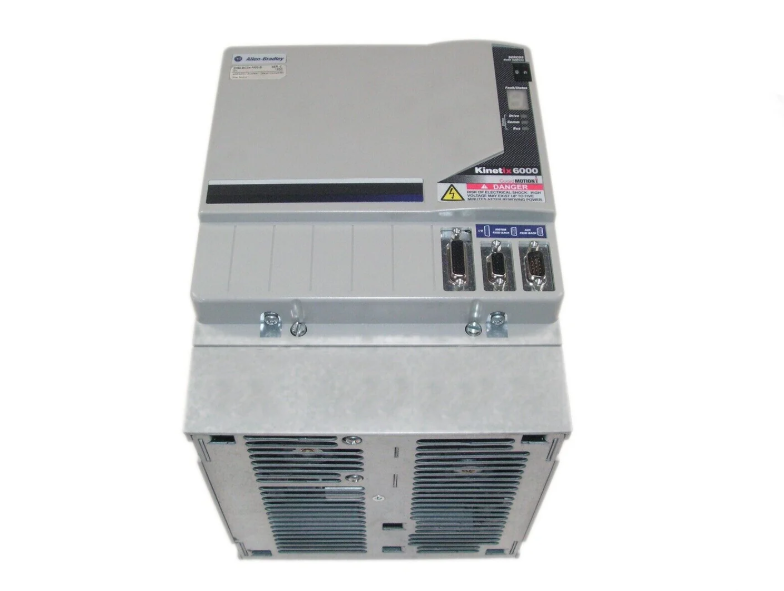

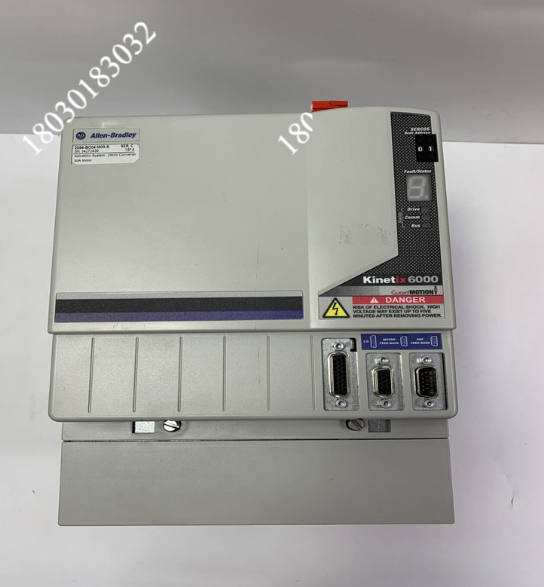

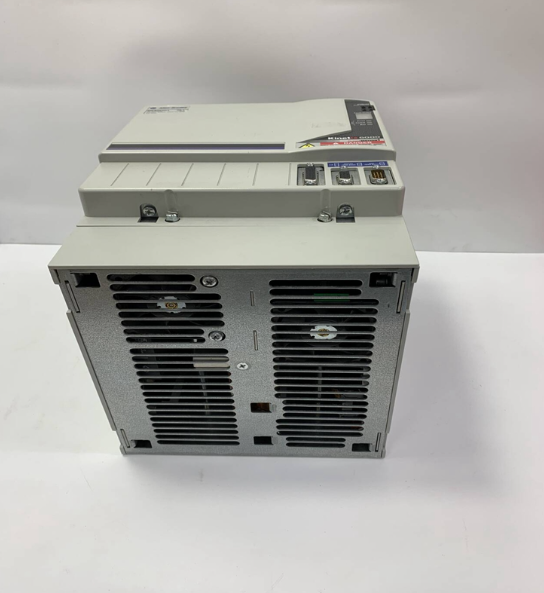

2094-BC04-M03-S/C 驱动系统模块 用作逆变器的集成轴模块

2094-BC04-M03-S/C驱动系统模块用作逆变器的集成轴模块【产品详情】技术参数2094-BC04-M03-S品牌艾伦-布拉德利模块位置电源轨的最左侧内

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

2094-BC04-M03-S/C 驱动系统模块 用作逆变器的集成轴模块






【产品详情】





技术参数 2094-BC04-M03-S

品牌 艾伦-布拉德利

模块位置 电源轨的最左侧

内部分流峰值功率 22.5 千瓦

内部分流连续电源 200瓦

PWM频率 4 赫兹

带宽 速度环路:500 Hz 电流环路:1300 Hz

输入电压范围 400/460伏交流电

逆变器部分输出电流 30 安培

转换器部分输出 28 千瓦

功耗 94-255 瓦


2094-BC04-M03-S 是一款 Kinetix 6000 驱动系统模块。该组件由 Allen-Bradley 制造,旨在用作逆变器的集成轴模块。该模块的额定输出功率为 20% 负载时为 53 瓦,40% 负载时为 72 瓦,60% 负载时为 93 瓦,80% 负载时为 116 瓦,100% 负载时为 142 瓦。


该模块具有转换器和逆变器部分。转换器部分的额定输出功率为 28kW,逆变器的输出电流为 30 安培。该模块也称为AM电源模块。它附带一个用于电机功率 (MP) 和电机/电阻制动功率 (BC) 的接线插头连接器套件。连接器套件 此模块不提供目录号为 2090-K6CK-D44M 和 2090-K6CK-D44S0 的输入和输出接口、安全和辅助反馈信号以及目录号为 2090-K6CK-D15M 的电机反馈。


使用此模块时,并不总是需要接地跳线设置。但是,未接地或高阻抗电源配置需要接地跳线设置。要设置接地跳线设置,请从电源轨上移除集成接入模块 (IAM),打开电源模块并将跳线位置修改到适当的位置。默认情况下,模块设置为接地位置,其中 P16 和 P17 短路,而不接地配置的 P18 和 P19 端子短路。


安装 2094-BC04-M03-S 时,首先安装集成轴模块,然后安装集成轴模块,然后安装插孔模块、轴模块、分流模块和槽填充模块。IAM 必须安装在电源轨的最左侧。其他模块位于 IAM 的右侧。


该模块旨在为您的驱动器、电机和执行器应用提供 Kinetix 集成运动控制解决方案。


2094-BC04-M03-S 具有安全转矩关闭功能,具有 200V 或 400V 级交流输入电源。它包含一个逆变器和一个转换器部分。峰值增强功能适用于 400V 级(B 和 C 系列)2094-BC04-M03-S IAM 模块。2094-BC04-M03-S 驱动器可以连接到接地跳线。


2094-BC04-M03-S 的功耗(以瓦特为单位)取决于给定时间其功率输出的百分比。例如,2094-BC04-M03-S 在额定功率输出的 20% 时功耗为 94 W,在驱动器额定功率输出的 100% 时功耗为 255 W。2094-BC04-M03-S 有 3 个系列(A、B 和 C),这些系列具有不同的峰值电流额定值。A 系列 2094-BC04-M03-S 驱动器的峰值额定电流为 150%,而 B 系列和 C 系列 2094-BC04-M03-S 驱动器的峰值电流额定值为 250%。




2094-BC04-M03-S/C 驱动系统模块 用作逆变器的集成轴模块



英文介绍





Technical parameters 2094-BC04-M03-S

Brand Allen Bradley

Module position The leftmost part of the power rail

Internal shunt peak power 22.5 kW

Internal shunt continuous power supply 200W

PWM frequency 4 Hz

Bandwidth Speed loop: 500 Hz Current loop: 1300 Hz

Input voltage range 400/460 volts AC

Inverter part output current 30 amps

The converter section outputs 28 kW

Power consumption 94-255 watts


The 2094-BC04-M03-S is a Kinetix 6000 drive system module. The component is manufactured by Allen-Bradley and is intended to be used as an integrated shaft module for inverters. The module's rated output power is 53 watts at 20% load, 72 watts at 40% load, 93 watts at 60% load, 116 watts at 80% load, and 142 watts at 100% load.


The module has a converter and an inverter section. The rated output power of the converter section is 28kW and the output current of the inverter is 30 amps. This module is also called an AM power module. It comes with a plug connector kit for motor power (MP) and motor/resistance braking power (BC). Connector Kit This module does not provide input and output interfaces with catalog numbers 2090-K6CK-D44M and 2090-K6CK-D44S0, safety and auxiliary feedback signals, and motor feedback with catalog number 2090-K6CK-D15M.


When using this module, it is not always necessary to ground jumper Settings. However, ungrounded or high-impedance power supply configurations require ground jumper Settings. To set the ground jumper Settings, remove the Integrated Access Module (IAM) from the power rail, turn on the power module and change the jumper position to the appropriate position. By default, the module is set to the grounded position, where P16 and P17 are short-circuited, while the ungrounded P18 and P19 terminals are short-circuited.


When installing 2094-BC04-M03-S, first install the integrated shaft module, then install the integrated shaft module, then install the jack module, shaft module, shunt module and slot filling module. The IAM must be installed on the leftmost side of the power rail. Other modules are on the right of IAM.


This module is designed to provide Kinetix integrated motion control solutions for your drive, motor and actuator applications.


The 2094-BC04-M03-S features a safe torque shutdown feature with a 200V or 400V class AC input power supply. It contains an inverter and a converter section. The peak enhancement feature is available for 400V class (B and C series) 2094-BC04-M03-S IAM modules. The 2094-BC04-M03-S driver can be connected to a ground jumper.


The power consumption (in watts) of the 2094-BC04-M03-S depends on the percentage of its power output at a given time. For example, the 2094-BC04-M03-S consumes 94 W at 20% of its rated power output and 255 W at 100% of the driver's rated power output. The 2094-BC04-M03-S is available in 3 series (A, B, and C) with different peak current ratings. The A Series 2094-BC04-M03-S drivers are rated at 150% peak current, while the B Series and C Series 2094-BC04-M03-S drivers are rated at 250% peak current.
