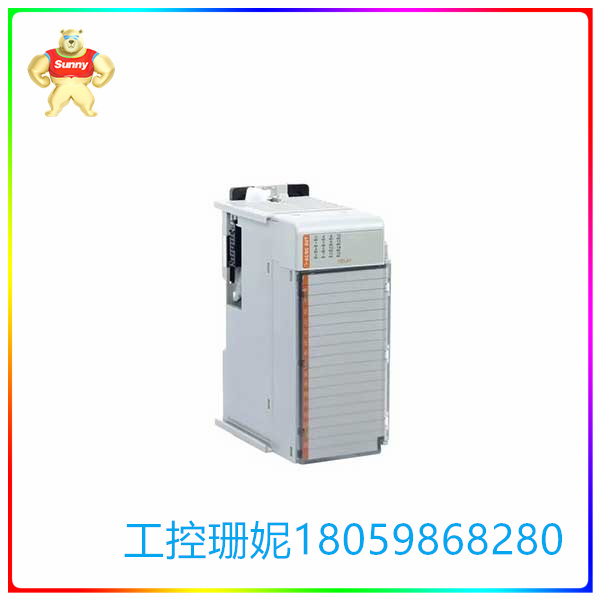

1769-OW16 离散输出模块 紧凑型 I/O




【产品详情】





1769-OW16 的技术参数

制造者 罗克韦尔自动化 / Allen-Bradley

品牌 艾伦-布拉德利

产品系列: 紧凑型 I/O

零件号/目录号 1769-OW16型

产品类型: 离散输出模块

产品线 CompactLogix的

模块类型 继电器输出模块

不。输出数量: 十六 (16)

工作电压 5 至 265 伏交流电或 5 至 125 伏直流电

Allen-Bradley 1769-OW16 是一款CompactLogix数字AC/DC继电器触点I/O模块。该输出模块有十六 (16) 个常开触点,每组有八 (8) 个点。


该模块的触点额定值为 0.22 A(125 伏直流电,28VA)和 7.5 A(240 伏交流电,1800VA 用于制造)和 0.75 安培(240 伏交流电,180VA 断开)。其工作电压范围为 5 至 265 伏交流电和 5 至 125 伏直流电。该模块的电流消耗在 24 V 时为 180 mA,在 5.1 V 时为 205 mA。它还具有每个模块的最大电流为 20A,每个点的最大电流为 2.5A。1769-OW16 模块的最大功耗为 4.75 瓦,最大关断状态泄漏为 0 mA,最小导通电流为 10 mA(5 伏直流)。它的工作温度范围为 0 至 60 摄氏度,非冷凝相对湿度范围为 5 至 95%。

1769-OW16 模块的工作冲击约为 30G,在运行时,它可以承受大约 2G 的振动。请注意,此模块在打开和关闭状态下都有 10 毫秒的延迟。1769-OW16 具有灵活性,可与各种应用兼容,例如 CompactLogix 控制器。此外,1769-OW16 可用作 MicroLogix 1500 控制器组件和带有 1769-ADN DeviceNet 或 1769-AENTR 以太网适配器的组件中的扩展 I/O。

1769-OW16 I/O 设备需要自己的电源,除非连接到 MicroLogix 1500 底座。22 至 14 AWG 实心电缆或 22 至 16 AWG 绞合连接电缆可用于 1769-OW16 模块。它的电源距离额定值为 8 个模块。与此模块兼容的唯一电源是 1769-PA2、1769-PB2、1769-PA4 和 1769-B4,并且只能使用面板或 DIN 导轨安装。1769-OW16 模块的近似尺寸为 4.65 x 2.07 x 3.43 英寸,使用 5.43 毫米安装片时,高度增加到 138 英寸。该模块的重量约为 2 磅。


1769-OW16 是一款十六 (16) 通道继电器输出模块。该模块由 Allen-Bradley 为 1769 CompactLogix 产品系列制造。该模块有两 (2) 组,每组八 (8) 个通道。该输入组是单独隔离的,允许该组在不同或相似的电压类别下工作。


该模块有十六 (16) 个 A 型干触点,每个通道每点可提供高达 2.5A 的电流。这使得该模块能够以更高的额定电流驱动电气和电感负载。该模块也适用于在不同电压类别下运行的系统。

1769-OW16 连接到 MicroLogix 或 CompactLogix 通信总线。将此模块安装到控制器组合件中的任何相邻模块。通信总线还承载为紧凑型 I/O 模块供电的电源电压。它在任一控制器系统的机箱中占据一个插槽。


当与 MicroLogix 1500 一起用作扩展 I/O 时,该模块安装在基本单元之后或任何相邻的紧凑型 I/O 上。MicroLogix 1500 仅支持紧凑型 I/O 模块。如果与 CompactLogix 系统一起使用,则该模块将作为本地或扩展 I/O 安装。通过安装到相邻的 I/O 模块并锁定总线杆,将其插入到通信中。


这些参数包括模块抑制、数据包间隔、时隙分配和修订号。通过访问模块的输入数据文件来执行详细配置。数据文件存储输入地址的状态以及模块诊断。




1769-OW16 离散输出模块 紧凑型 I/O



英文介绍





Technical parameters of 1769-OW16

Manufacturer Rockwell Automation/Allen-Bradley

Brand Allen Bradley

Product line: Compact I/O

Part number/Catalog number Model 1769-OW16

Product type: Discrete output module

Product line CompactLogix

Module type Relay output module

Nooooo. Output quantity: 16 (16)

Operating voltage 5 to 265 volts AC or 5 to 125 volts DC

Allen-Bradley 1769-OW16 is a CompactLogix digital AC/DC relay contact I/O module. The output module has sixteen (16) normally open contacts with eight (8) points in each group.


The module has contact ratings of 0.22A (125 volts DC, 28VA) and 7.5A (240 volts AC, 1800VA for manufacturing) and 0.75 amps (240 volts AC, 180VA off). Its operating voltage ranges from 5 to 265 volts AC and 5 to 125 volts DC. The current consumption of this module is 180 mA at 24 V and 205 mA at 5.1 V. It also has a maximum current of 20A per module and 2.5A per point. The 1769-OW16 module has a maximum power consumption of 4.75 watts, a maximum turn-off leakage of 0 mA, and a minimum conduction current of 10 mA (5 volts DC). It operates in a temperature range of 0 to 60 degrees Celsius and a non-condensing relative humidity range of 5 to 95%.

The 1769-OW16 module has an operating shock of about 30G, and when in operation, it can withstand vibrations of about 2G. Note that this module has a 10 millisecond delay both on and off. The 1769-OW16 is flexible and compatible with a variety of applications, such as CompactLogix controllers. In addition, the 1769-OW16 can be used as extended I/O in MicroLogix 1500 controller components and components with 1769-ADN DeviceNet or 1769-AENTR Ethernet adapters.

1769-OW16 I/O devices require their own power supply unless connected to a MicroLogix 1500 dock. 22 to 14 AWG solid cables or 22 to 16 AWG stranded connection cables are available for 1769-OW16 modules. It has a power distance rating of 8 modules. The only power supplies compatible with this module are 1769-PA2, 1769-PB2, 1769-PA4, and 1769-B4, and can only be mounted using a panel or DIN rail. The 1769-OW16 module has an approximate size of 4.65 x 2.07 x 3.43 inches, with the height increasing to 138 inches when using a 5.43 mm mounting piece. The module weighs about 2 pounds.


The 1769-OW16 is a sixteen (16) channel relay output module. The module was manufactured by Allen-Bradley for the 1769 CompactLogix product family. The module has two (2) groups of eight (8) channels each. The input group is individually isolated, allowing the group to operate under different or similar voltage classes.


The module has sixteen (16) A-type dry contacts that provide up to 2.5A of current per point per channel. This allows the module to drive electrical and inductive loads at higher current ratings. The module is also suitable for systems operating in different voltage classes.

1769-OW16 connects to the MicroLogix or CompactLogix communication bus. Install this module to any adjacent modules in the controller assembly. The communication bus also carries the power supply voltage that powers the compact I/O module. It occupies a slot in the chassis of either controller system.


When used as extended I/O with the MicroLogix 1500, this module is installed after the base unit or on any adjacent compact I/O. The MicroLogix 1500 supports only compact I/O modules. If used with a CompactLogix system, the module will be installed as local or extended I/O. Plug it into the communication by mounting it into the adjacent I/O module and locking the bus pole.


These parameters include module suppression, packet spacing, slot assignment, and revision number. Detailed configuration is performed by accessing the module's input data file. The data file stores the status of the input address as well as module diagnostics.
