1794-PS13 电源模块  支持电源输出的菊花链

【产品详情】

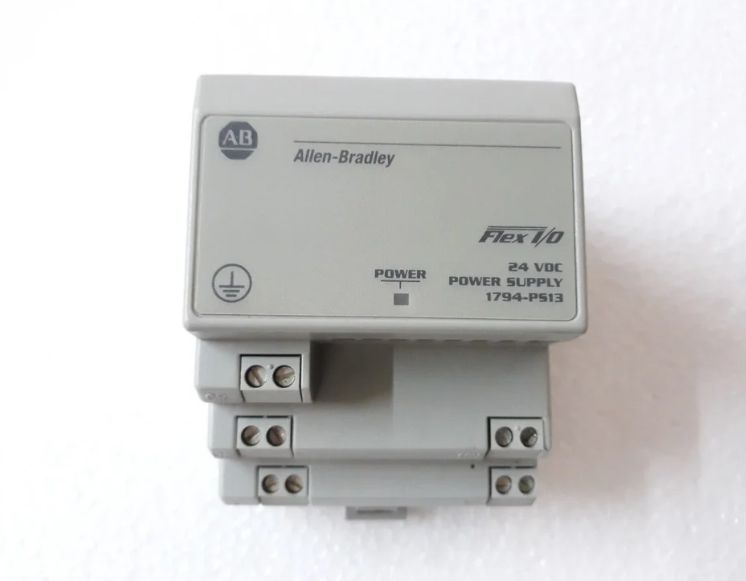

Allen-Bradley 1794-PS13 是 PowerFlex I/O 产品系列中的电源模块。此电源的电涌足以为多达四 （4） 个适配器供电。它的电压输入范围为 85-264VAC、47-63 Hz，并提供 24VDC 的标称输出电压。

1794-PS13 支持整个 PowerFlex I/O 系统的安装方法。它支持电源输出的菊花链，为支持的适配器供电，也可以与交流和直流模块结合使用。该电源具有内置指示灯，当输出电压大于 20.4V DC 但小于 28V DC 时通电绿色，并在电源未通电、输出电压tage 超过 35V DC 时保持关闭状态tage 保护关闭设备且输出电流高于 1.4 A。

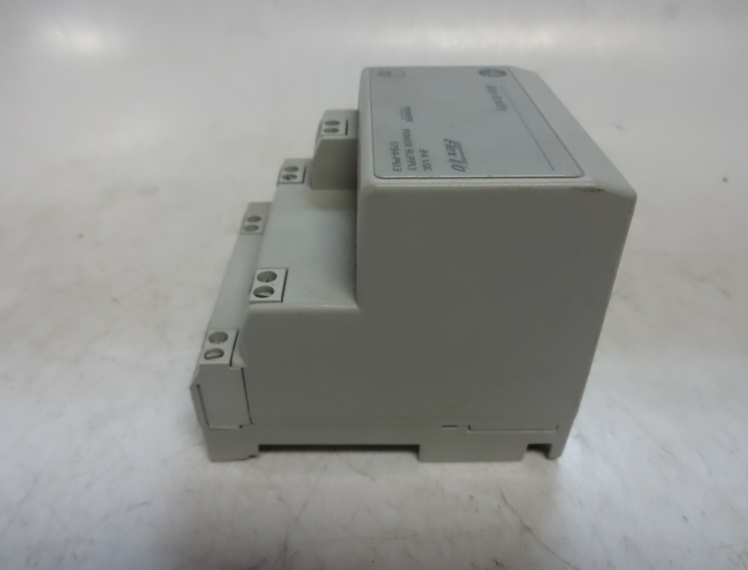

1794-PS13 的物理尺寸为 87 （H） x 69 （W） x 69 （D） mm 3.4 （H） x 2.7 （W）x 2.7 （D） 英寸。它采用开放式外壳，要求电线尺寸为 0.34-2.5 mm2 （22-12 AWG） 实心或绞合铜线，绝缘等级为 75 °C （167 °F） 或更高，最大绝缘厚度为 1.2 毫米（3/64 英寸）。该模块的接线类别为 2，需要施加 0.8 Nm （7 lbs-in.）拧紧连接的扭矩。

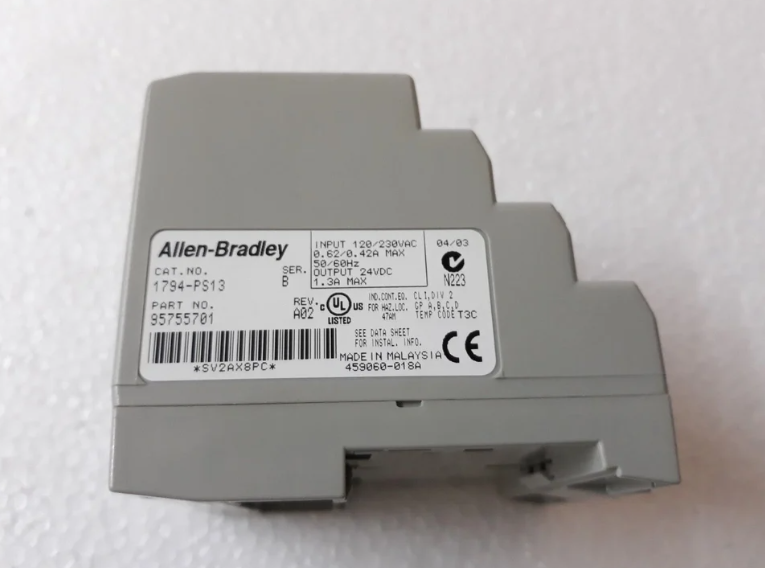

1794-PS13 的输出电压范围为 20.4-27.6 VDC，包括噪声和 5% 的交流纹波。它的输出电流为 1.3 A，输出功率为 31.2 W，输出纹波峰峰值为 1200 mV。

1794-PS13 模块的过压保护在内部限制为 40 伏直流电。1794-PS13 带有一个电源指示灯，当它打开时变为绿色，输出电压大于 20.4 伏直流电但小于 28 伏直流电。此指示灯在关闭时不亮。整个模块尺寸为 3.4 x 2.7 x 2.7 英寸，采用开放式外壳。该模块需要在交流输入端子和直流输出端子之间进行隔离，隔离电压要求为 2500 伏直流，持续 1 秒。该模块的标称输出为 +24 伏直流电，其输出电压调节为 20.4 至 27.6 伏直流电，+/- 15%，包括噪声和 5% 交流纹波。该模块的输出功率为 31.2 W，最大输出纹波为 +/-5% 1200 mV 峰峰值，最大输出电流为 1.3 安培。其功耗为 7 W，散热为 23.9 BTU/小时。1794-PS13 的工作温度为 0 至 55 摄氏度，存储温度为 -40 至 85 摄氏度，相对湿度为 5% 至 95%（非冷凝）。该模块在 10 至 100 赫兹时的工作振动为 5 g，工作冲击为 30 g，非工作冲击为 50 g。

1794-PS13 电源模块  支持电源输出的菊花链

【英文介绍】

The Allen-Bradley 1794-PS13 is a power module in the PowerFlex I/O product family. The surge of this power supply is sufficient to power up to four (4) adapters. It has a voltage input range of 85-264VAC, 47-63 Hz, and offers a nominal output voltage of 24VDC.

1794-PS13 supports the installation method of the entire PowerFlex I/O system. It supports a Daisy chain of power output, powering supported adapters, and can also be used in combination with AC and DC modules. The power supply has a built-in indicator light that turns green when the output voltage is greater than 20.4V DC but less than 28V DC, and remains off when the power supply is not powered on and the output voltage tage exceeds 35V DC. tage protects the shutdown device and the output current is greater than 1.4A.

The 1794-PS13 has physical dimensions of 87 (H) x 69 (W) x 69 (D) mm 3.4 (H) x 2.7 (W) x 2.7 (D) inches. It has an open housing and requires a wire size of 0.34-2.5 mm2 (22-12 AWG) solid or stranded copper wire with an insulation rating of 75 °C (167 °F) or higher and a maximum insulation thickness of 1.2 mm (3/64 inch). The module is wired in class 2 and requires 0.8 Nm (7 lbs-in.) torque to tighten the connection.

The 1794-PS13 has an output voltage range of 20.4-27.6 VDC, including noise and 5% AC ripple. It has an output current of 1.3A, an output power of 31.2W, and an output ripple peak of 1200 mV.

The 1794-PS13 module's overvoltage protection is internally limited to 40 volts DC. The 1794-PS13 has a power indicator that turns green when it is turned on, and the output voltage is greater than 20.4 VDC but less than 28 VDC. This indicator does not light when it is turned off. The entire module measures 3.4 x 2.7 x 2.7 inches and has an open housing. The module needs to be isolated between the AC input terminal and the DC output terminal, and the isolation voltage is required to be 2500 volts DC for 1 second. The module has a nominal output of +24 volts DC and its output voltage is regulated to 20.4 to 27.6 volts DC, +/- 15% including noise and 5% AC ripple. The module has an output power of 31.2 W, a maximum output ripple of +/-5% 1200 mV peak-peak value, and a maximum output current of 1.3 amps. Its power consumption is 7 W and its heat dissipation is 23.9 BTU/ hour. The 1794-PS13 has an operating temperature of 0 to 55 degrees Celsius, a storage temperature of -40 to 85 degrees Celsius, and a relative humidity of 5 to 95 percent (non-condensing). The module has an operating vibration of 5 g at 10 to 100 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.
