1794-IB16 24VDC 离散输入模块 由安装的终端底座决定
【产品详情】
1794-IB16 的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
工作温度: 0 至 55 C(32 至 131 F)
线径: 由安装的终端底座决定
安装: DIN导轨
指标: 16 黄色状态指示灯
ON 状态电压,标称值: 24 伏直流电

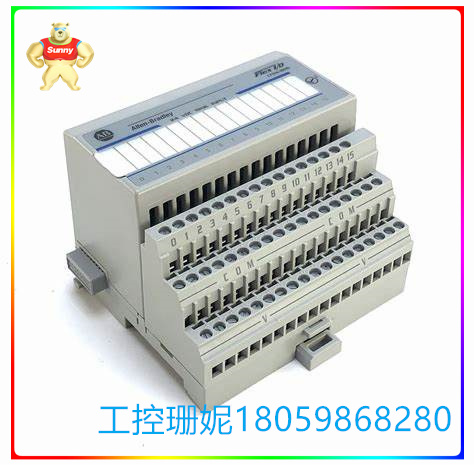

Allen-Bradley 1794-IB16 是一款十六 (16) 通道 24VDC 离散输入模块。该模块是 1794 Flex IO 产品系列的一部分,主要用于实现分布式 IO 解决方案。在分布式 I/O 架构中,I/O 模块可以安装在信号源或驱动负载附近。这大大减少了电缆的铺设,从而降低了总体安装成本。它还简化了维护,并有助于全面增加控制系统的正常运行时间。
1794-IB16 支持标准 DIN 导轨安装或直接面板安装。该模块与端子底座一起使用,其中端接信号线。兼容的端子底座为 1794-TB3、1794-TB3S、1794-TB3K、1794-TB3SK、1794-TBKD、1794-TB37DS。此外,1794-IB16 需要使用通信适配器将 I/O 数据传输到合作伙伴扫描器模块或控制器。兼容的通信适配器包括目录号为 1794-ADN 的 DeviceNet 通信适配器、目录号为 1794-ASB 的远程 I/O 通信适配器、目录号为 1794-AENT 的以太网通信适配器、目录号为 1794-APB 的 Profibus 通信适配器和目录号为 1794-ACN 的 ControlNet 通信适配器。
1794-IB16 的电流消耗为 30 mA @ 5V DC。各个输入通道的额定电压为 10 至 31.2 VDC,标称输入电压为 24VDC,支持灌电流接线配置。每个通道的最小导通状态电压为 10VDC,最大为 31.2VDC,而最大关断状态电压为 20VDAC。它的功耗为 3.5 W @ 31.2V DC,散热为 11.9 BTU/hr @ 31.2V DC。
1794-IB16 24VDC 离散输入模块 由安装的终端底座决定
【英文介绍】
Technical parameters of 1794-IB16
Manufacturer Rockwell Automation
Brand Allen Bradley
Operating temperature: 0 to 55 C (32 to 131 F)
Wire diameter: determined by the terminal base installed
Mounting: DIN rail
Indicator: 16 Yellow Status indicator
ON state voltage, nominal value: 24 volts DC
The Allen-Bradley 1794-IB16 is a sixteen (16) channel 24VDC discrete input module. The module is part of the 1794 Flex IO product family and is primarily used to implement distributed IO solutions. In distributed I/O architectures, I/O modules can be installed near the signal source or driver load. This greatly reduces the laying of cables, thus reducing the overall installation cost. It also simplifies maintenance and helps to increase the uptime of the control system overall.
The 1794-IB16 supports standard DIN rail mounting or direct panel mounting. The module is used with the terminal base, where the signal cable is terminated. Compatible terminal bases are 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, and 1794-TB37DS. In addition, the 1794-IB16 requires the use of a communication adapter to transfer I/O data to a partner scanner module or controller. Compatible communication adapters include DeviceNet communication adapter with directory number 1794-ADN, remote I/O communication adapter with directory number 1794-ASB, Ethernet communication adapter with directory number 1794-AENT, and Profibus with directory number 1794-APB Communication adapter and ControlNet communication adapter with directory number 1794-ACN.
The current consumption of 1794-IB16 is 30 mA @ 5V DC. The rated voltage of each input channel is from 10 to 31.2 VDC, and the nominal input voltage is 24VDC. The minimum on-state voltage for each channel is 10VDC, the maximum is 31.2VDC, and the maximum off state voltage is 20VDAC. It has a power consumption of 3.5W@31.2V DC and a heat dissipation of 11.9BTU/hr@31.2V DC.
