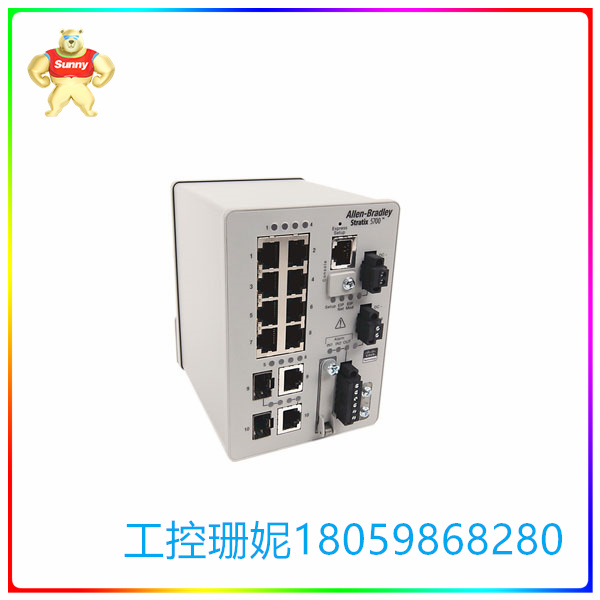

1783-BMS10CGL 管理型以太网交换机 组合端口支持千兆以太网

【产品详情】

1783-BMS10CGL的技术参数

品牌 Allen-Bradley / 罗克韦尔自动化

系列 Stratix 5700系列

零件编号 1783-BMS10CGL

产品类型 管理型以太网交换机

港口 10

Allen-Bradley Stratix 5700 系列 1783-BMS10CGL 交换机是一款以太网交换机。1783-BMS10CGL交换机是具有 10 个端口的可配置和管理型交换机。1783-BMS10CGL交换机上有 8 个铜质端口和 2 个组合端口。铜缆端口支持快速以太网。组合端口支持千兆以太网。

1783-BMS10CGL开关的输入电压范围为 12 至 48 V DC。输入电流范围为 0.5 至 2 安培。电源输入应由 2 类或 SELV 电源供电。1783-BMS10CGL 交换机的额定最大功耗为 17 瓦。额定功耗也为 17 瓦。额定绝缘电压为 50 伏。以太网端口之间以及控制台端口与系统之间没有绝缘。以太网连接的推荐电线是 2 / 4 对 5e 类电缆。推荐用于直流电源的电线是 20 至 18 AWG 实心/绞合铜线。报警连接的推荐电线是额定值为 20 至 18 AWG 的实心或绞合铜线。开放式开关外壳的尺寸为 129.5 x 91.4 x 116.7 毫米。1783-BMS10CGL开关的重量约为 1.25 千克。

1783-BMS10CGL 管理型以太网交换机 组合端口支持千兆以太网

【英文介绍】

Technical parameters of 1783-BMS10CGL

Brand Allen-Bradley/Rockwell Automation

Series Stratix 5700 Series

Part number 1783-BMS10CGL

Product Type Managed Ethernet switch

Port 10

The Allen-Bradley Stratix 5700 Series 1783-BMS10CGL switch is an Ethernet switch. The 1783-BMS10CGL switch is a configurable and managed switch with 10 ports. The 1783-BMS10CGL switch has eight copper ports and two combination ports. Copper cable port supports fast Ethernet. The combined port supports Gigabit Ethernet.

The 1783-BMS10CGL switch has an input voltage range of 12 to 48 V DC. Input current ranges from 0.5 to 2 amps. The power input should be powered by a Class 2 or SELV power supply. The 1783-BMS10CGL switch is rated for a maximum power consumption of 17 watts. Power consumption is also rated at 17 watts. The rated insulation voltage is 50 volts. There is no insulation between Ethernet ports and between console ports and the system. The recommended wire for Ethernet connections is a 2/4-to-5E class cable. The recommended wire for DC power is 20 to 18 AWG solid/stranded copper wire. The recommended wire for alarm connections is solid or stranded copper wire rated 20 to 18 AWG. The open switch housing measures 129.5 x 91.4 x 116.7 mm. The 1783-BMS10CGL switch weighs about 1.25 kg.

1783-BMS10CGL 管理型以太网交换机 组合端口支持千兆以太网
