1783-US16T 以太网非网管交换机 提供紧凑型解决方案
【产品详情】
1783-US16T 的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 1783-US16吨
系列 Stratix 2000 系列
最大功耗 8.0 瓦
最大电流 900 毫安直流;1800 毫安交流
电源端子螺丝扭矩 每磅 8.05 英寸
最大接地端子螺钉扭矩 开放式/无

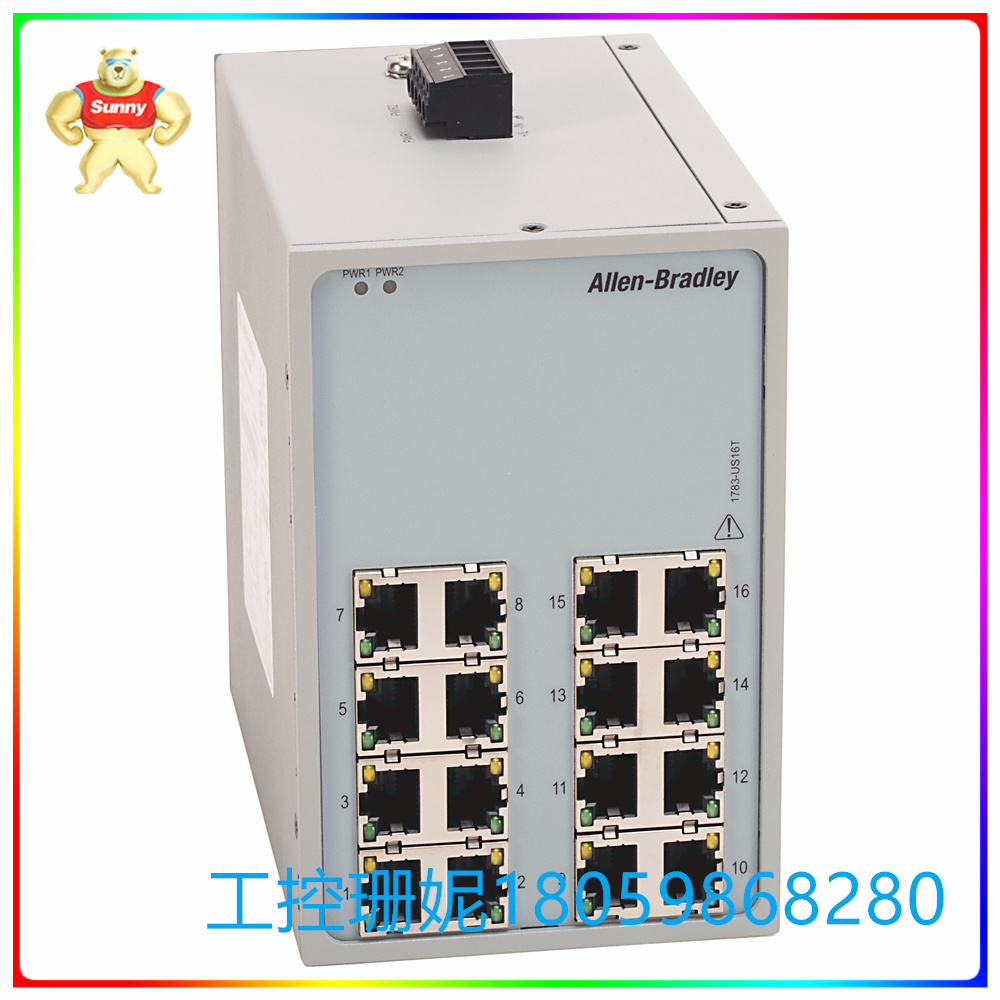

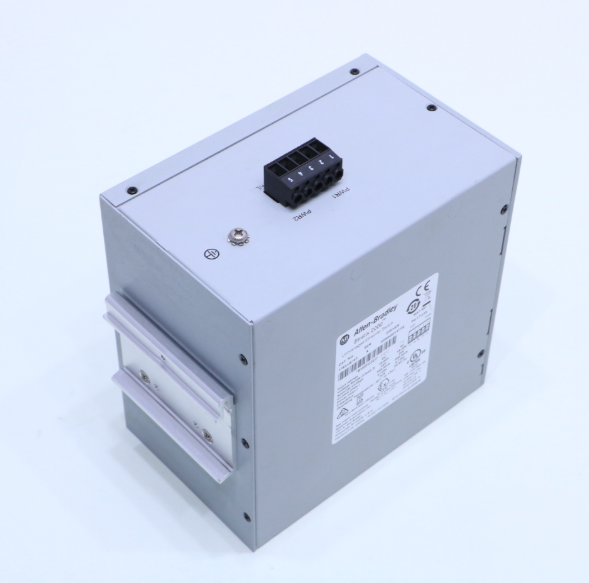

Allen-Bradley 的 1783-US16T Stratix 2000 以太网非网管交换机是一种电子设备,可为大多数需要可靠网络连接的工业应用提供紧凑型解决方案。它需要双 2 类或 SELV 16 至 60 伏直流电或 18 至 30 伏交流电,输入电压范围为 50 至 60 赫兹,标称输入为 24 伏,最大输入电流为 555.5 mA,启动时浪涌电流为 4.72 A。1783-US16T 在运行时可散发 6.72 的最大热量,并在电源到网络通道之间提供 30 伏直流电压隔离,使用基本绝缘,在 500 伏交流电下测试 60 秒。它使用 IEC 级 RJ-45 连接器,带有 16 个快速以太网端口 (FE) 用于以太网连接,并使用 14 AWG 铜线和 1.82 N-m(8 英寸/磅)螺钉扭矩进行接地连接。1783-US16T 最多支持 8K MAC 地址,但不支持 SFP 模块。
它采用开放式外壳,符合 T4 北美和 IEC 温度规范。1783-US16T 的工作温度范围很广,介于 -40 至 70 摄氏度(-40 至 158 华氏度)和 5% 至 95% 的非冷凝相对湿度下,可适应各种应用。它储存在 -40 至 85 摄氏度(-40 至 185 华氏度)的 IEC 额定温度范围内。它设计用于在非工作模式下承受 15G 和 30G 的运行冲击,并且可以承受 2G 到 10 赫兹的 150G 运行振动。它具有CISPR11 A 级发射,并具有 IP20 环境等级,可防止固体物体。1783-US16T 的尺寸为 88 x 135 x 146.30 毫米(3.46 x 5.31 x 5.76 英寸),通过了 c-UL-us、CE、KC、RCM 和 Ex 认证。
1783-US16T 以太网非网管交换机 提供紧凑型解决方案
【英文介绍】
Technical parameters of 1783-US16T
Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog number 1783-US16 tons
Series Stratix 2000 series
Maximum power consumption 8.0 watts
Maximum current 900 MA DC; 1800 mah AC
Power terminal screw torque 8.05 inches per pound
Maximum ground terminal screw torque open/none
Allen-Bradley's 1783-US16T Stratix 2000 Ethernet unmanaged switch is an electronic device that provides a compact solution for most industrial applications that require reliable network connectivity. It requires dual Class 2 or SELV 16 to 60 volts DC or 18 to 30 volts AC with an input voltage range of 50 to 60 Hz, A nominal input of 24 volts, a maximum input current of 555.5 mA, and a surge current of 4.72 A at start-up. The 1783-US16T emits a maximum heat of 6.72 when in operation and provides 30 volts DC voltage isolation between the power supply and the network channel, using basic insulation, testing for 60 seconds at 500 volts AC. It uses IEC grade RJ-45 connectors with 16 fast Ethernet ports (FE) for Ethernet connections and ground connections using 14 AWG copper wire and 1.82 N-m (8 "/ lb) screw torque. The 1783-US16T supports up to 8K MAC addresses, but does not support SFP modules.
It features an open housing that complies with T4 North American and IEC temperature specifications. The 1783-US16T operates at a wide temperature range of -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit) and 5% to 95% non-condensing relative humidity, making it suitable for a variety of applications. It is stored within the IEC temperature rating range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It is designed to withstand 15G and 30G operating shocks in non-operating mode, and can withstand 150G operating vibrations from 2G to 10 Hz. It has CISPR11 Class A emission and has an IP20 environmental rating to protect against solid objects. The 1783-US16T measures 88 x 135 x 146.30 mm (3.46 x 5.31 x 5.76 inches) and is c-UL-us, CE, KC, RCM and Ex certified.
1783-US16T 以太网非网管交换机 提供紧凑型解决方案
