22C-D038A103
22C-D038A103

22C-D038A103 变频器 变频器特别适用于工业风扇和泵应用

22C-D038A103变频器变频器特别适用于工业风扇和泵应用【产品详情】22C-D038A103的技术参数输入相位:三相可选通信协议:BacNet的;朗沃克;

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

22C-D038A103 变频器 变频器特别适用于工业风扇和泵应用




【产品详情】





22C-D038A103的技术参数

输入相位: 三相

可选通信协议: BacNet的;朗沃克;ProfiBus的;以太网;设备网;控制网

内置通讯端口: RS485串口

外壳防护等级: IP20 / NEMA UL 开放型

安装: 面板安装

嵌入式 I/O: 离散输入:七 (7) 个灌/拉离 离散输出:一 (1) 个开路输出;两 (2) 个 C 型触点 模拟输入:两(2)个模拟输入0-10VDC;0- 20毫安 模拟量输出:两(2)个模拟量输入0-10VDC;0- 20毫安

控制方法: V/Hz、滑差补偿、过程PID

适用电机额定值: 25 马力 (18.5 KW)

输出电流: 38 安培

输出电压: 0-460伏交流电

输入电流: 40 安培

制造者: 罗克韦尔自动化 / Allen-Bradley

品牌 艾伦-布拉德利

输入电压 342-528伏交流电

零件号/目录号 22C-D038A103

产品线 Powerflex 400 系列

驱动器类型 风扇和泵

马力 25

阶段 三相

外壳 面板安装 - IP30,NEMA/UL 类型 1

安培数 38 安培

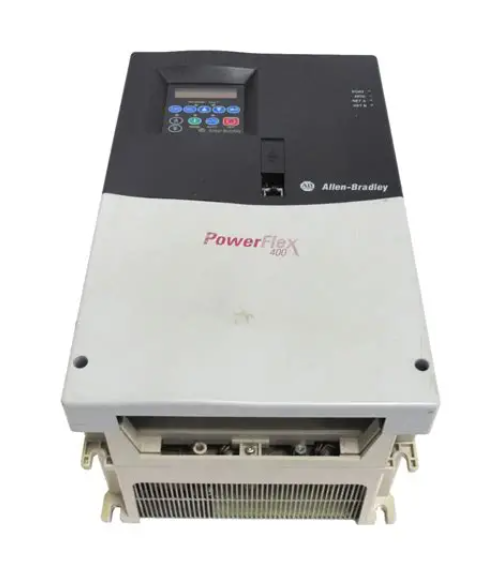

关于22C-D038A103

Allen Bradley 的 22C-D038A103 AC Powerflex 400 Drive 在 25 马力下额定输出功率为 18.5 kW,安培数为 38,在 45 至 50 摄氏度之间的 5 度温度变化范围内保持一致。推荐的电机电路保护为 140M-F8E-C45,带 100-C60 接触器,最小外壳体积为 9086 平方英寸。它的功耗约为 606 个 IP20 瓦开路,并有 50 个保险丝。


22C-D038A103 是一款 Frame D 驱动器, 外壳防护等级为 IP30, NEMA/UL Type 1, 无法兰安装。将 I/O 信号端接到驱动器时,最大线径为 33.6 mm sq.(或 2 AWG)。(电线不能小于 8.4 平方毫米,或 8 AWG)。接线扭矩为 5.1 N-m,或 45 磅到一英寸。


本机有一个一体式 LCD 键盘,两行,每行 16 个字符和 5 个 LED 指示灯。这个集成键盘允许本地监视和控制,例如启动和速度命令。通过该装置的特色辅助电机控制系统,最多可以控制三个额外的线路启动电机与中央电机并排控制,中央电机将由 22C-D038A103 Powerflex 驱动器直接控制。使用该系统可以产生高达 400% 的输出,其中驱动控制电机和所有三个附加电机都以最大速度运行。该系统也可以是自动化的,一旦需求增加超过第一台电机的能力,额外的电机就会开始运行。


该串行 (RS485) 驱动器支持 FLN、DSI、Modbus RTU 和 Metasys N2 作为标准通信协议。它还支持多种可选协议,包括 ControlNet、LonWorks、Ethernet/IP 和 Device Net。


22C-D088A103适用于额定功率为18.5kW或25.0 HP的交流电机。这种可调频率交流变频器的输入电压要求为 340-528VAC,三相,输入电流为 40 安培,频率范围为 48-63 Hz。该驱动器支持外壳内的面板安装应用,可提供足够的保护,防止常见污染物,如腐蚀性空气或气体、水、灰尘、油和油脂。该变频器还需要外部保护装置,如直流母线扼流圈、EMC滤波器、交流线路电抗器、谐波滤波器、保险丝和其他电气保护装置,以最大限度地延长变频器的使用寿命。


具体来说,推荐用于 22C-D088A103 的 Allen-Bradley 滤波器的目录号为 22-RFD100,电机电缆连接不超过 50 米。适用的保险丝额定值为 125 安培,而推荐的电机接触器为 100-D110。




22C-D038A103 变频器 变频器特别适用于工业风扇和泵应用



英文介绍





Technical specifications of 22C-D038A103

Input phase: three phases

Optional communication protocol: BacNet; Langwerk; ProfiBus; Ethernet; Equipment network; Control network

Built-in communication port: RS485 serial port

Enclosure protection class: IP20 / NEMA UL Open

Installation: Panel installation

Embedded I/O: Discrete inputs: seven (7) perfusion/pull away discrete outputs: one (1) open circuit outputs; Two (2) C-contact analog inputs: Two (2) analog inputs 0-10VDC; 0-20 mA analog output: Two (2) analog inputs 0-10VDC; 0-20 MA

Control method: V/Hz, slip compensation, process PID

Applicable motor rating: 25 HP (18.5 KW)

Output current: 38 amps

Output voltage: 0-460 volts AC

Input current: 40 amps

Manufacturer: Rockwell Automation/Allen-Bradley

Brand Allen Bradley

Input voltage 342-528 volts AC

Part number/Catalog number 22C-D038A103

Product line Powerflex 400 series

Drive type fan and pump

Horsepower 25

Phase three phase

Housing panel mounting - IP30, NEMA/UL Type 1

Amperage 38 amperes


About 22C-D038A103

Allen Bradley's 22C-D038A103 AC Powerflex 400 Drive has a rated output of 18.5 kW at 25 HP with 38 amps, consistent over a 5 degree temperature range between 45 and 50 degrees Celsius. The recommended motor circuit protection is 140M-F8E-C45 with 100-C60 contactors and a minimum housing volume of 9086 square inches. It has a power consumption of about 606 IP20 watts open circuit and has 50 fuses.


The 22C-D038A103 is a Frame D driver with IP30 housing protection, NEMA/UL Type 1 and flangeless mounting. When connecting the I/O signal end to the driver, the maximum wire diameter is 33.6 mm sq. (or 2 AWG). (Wires cannot be smaller than 8.4 square millimeters, or 8 AWG). Wiring torque is 5.1 N-m, or 45 pounds to an inch.


The unit has an integrated LCD keyboard with two lines of 16 characters each and 5 LED indicators. This integrated keyboard allows local monitoring and control, such as startup and speed commands. With the unit's featured auxiliary motor control system, up to three additional line-starting motors can be controlled side-by-side with the central motor, which will be directly controlled by the 22C-D038A103 Powerflex drive. Up to 400% output can be generated using this system, in which the drive control motor and all three additional motors operate at maximum speed. The system can also be automated, with additional motors coming into operation as soon as demand increases beyond the capacity of the first motor.


The serial (RS485) driver supports FLN, DSI, Modbus RTU, and Metasys N2 as standard communication protocols. It also supports several optional protocols, including ControlNet, LonWorks, Ethernet/IP, and Device Net.


The 22C-D088A103 is suitable for AC motors rated at 18.5kW or 25.0 HP. The input voltage requirements of this adjustable frequency AC converter are 340-528VAC, three-phase, input current is 40 amps, and frequency range is 48-63 Hz. The driver supports panel mounted applications within the housing and provides adequate protection against common contaminants such as corrosive air or gases, water, dust, oil and grease. The inverter also requires external protection devices such as DC bus choke, EMC filters, AC line reactors, harmonic filters, fuses and other electrical protection devices to maximize the service life of the inverter.


Specifically, the recommended Allen-Bradley filter for 22C-D088A103 has the catalog number 22-RFD100, and the motor cable connection does not exceed 50 meters. The applicable fuse rating is 125 amps, while the recommended motor contactor is 100-D110.




22C-D038A103 变频器 变频器特别适用于工业风扇和泵应用
