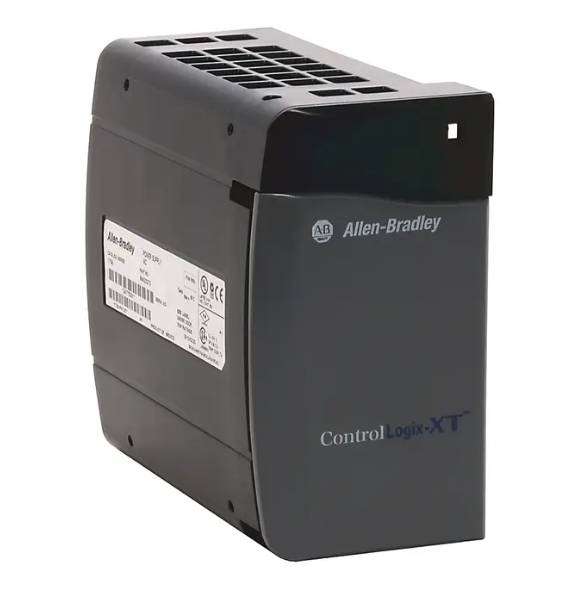

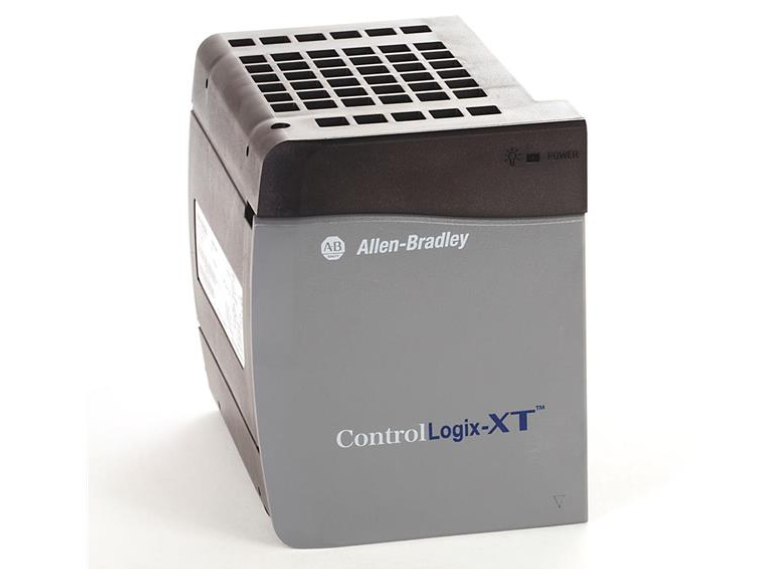

1756-PA30XT 交流电源 提供完整的控制和通信系统
【产品详情】
1756-PA30XT的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 型号:1756-PA30XT
系列 ControlLogix
模块类型 ControlLogix-XT 电源
Nom 输入电压 24 伏直流电
输入电压范围 18-32 伏直流电
隔离电压 250 伏连续电压
最大浪涌电流 30 安培
当前容量 1.2 V 时为 1.5 A,3.3 V 时为 2 A,5.1 V 时为 6 A,24 V 时为 1.25 A
最大输入功率 50 瓦
最大输出功率 30 瓦
位置 1756 机箱左侧
尺寸 5.51 x 3.07 x 5.71 英寸(14.0 x 7.8 x 14.5 厘米)
重量 1.7磅(0.77公斤)
关于1756-PA30XT
Allen-Bradley 1756-PA30XT 是一款 1756 ControlLogix-XT 交流电源。ControlLogix-XT 产品与 FlexLogix I/O XT 产品相结合,提供完整的控制和通信系统,可在温度范围为 -4 -158 °F 的极端环境中使用。 ControlLogix-XT 系统独立使用时,可承受 -13-158 °F
的温度。1756-PA30XT 模块的输入电压范围为 85 – 265V AC,标称输入电压为 120-240V AC。它的输入频率范围为 47 - 63 Hz,最大输入功率为 60VA 50W,在 -13-158 °F 时的最大输出功率为 30W。 它在 1.2V DC 时的电流容量为 1.5A,在 3.3V DC 时为 2A,在 5.1V DC 时为 6A,在 24V DC 时为 1.25A。它的尺寸为 5.51 x 3.07 x 5.71 英寸。重 1.7 磅。它具有 250V(连续)隔离电压和 20A 的最大浪涌电流。它安装在 1756 ControlLogix 机箱的左侧插槽上,带有开放式机柜或无机柜。它与 1756-A4LXT/B、1756-A5XT/B、1756-A7LXT/B、1756-A7XT/B、1756-A7XT/C 和 1756-A10XT/C 机箱兼容。对于接线,使用 2.5 ̧–mm〗^2 (14 AWG) 绞合或实心铜线,额定温度为 194 °F 或更高,最大绝缘为 1.2 毫米(3/64 英寸)。
1756-PA30XT 电源适用于具有 30g 工作冲击和 5 - 95% 非冷凝相对湿度的工业环境。
1756-PA30XT 交流电源 提供完整的控制和通信系统
【英文介绍】
Technical parameters of 1756-PA30XT
Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog Number Model: 1756-PA30XT
Series ControlLogix
Module Type ControlLogix-XT Power supply
Nom Input voltage 24 volts DC
Input voltage range 18-32 volts DC
Isolation voltage 250 V continuous voltage
Maximum surge current 30 amps
The current capacity is 1.5A at 1.2V, 2A at 3.3V, 6A at 5.1V, and 1.25A at 24 V
Maximum input power 50 watts
Maximum output power 30 watts
Position 1756 Left side of the chassis
Dimensions 5.51 x 3.07 x 5.71 inches (14.0 x 7.8 x 14.5 cm)
Weight 1.7 lb (0.77 kg)
About 1756-PA30XT
The Allen-Bradley 1756-PA30XT is a 1756 ControlLogix-XT AC power supply. The ControlLogix-XT products, in combination with the FlexLogix I/O XT products, provide a complete control and communication system for use in extreme environments in the temperature range -4-158 °F. The ControlLogix-XT system can withstand -13 to 158 °F when used alone
The temperature of... The 1756-PA30XT module has an input voltage range of 85-265V AC and a nominal input voltage of 120-240V AC. It has an input frequency range of 47-63 Hz, a maximum input power of 60VA 50W, and a maximum output power of 30W at -13-158 °F. It has a current capacity of 1.5A at 1.2V DC, 2A at 3.3V DC, 6A at 5.1V DC, and 1.25A at 24V DC. It measures 5.51 x 3.07 x 5.71 inches. It weighs 1.7 pounds. It has a 250V (continuous) isolation voltage and a maximum surge current of 20A. It is installed in the left slot of the 1756 ControlLogix chassis with open cabinets or no cabinets. It is compatible with the 1756-A4LXT/B, 1756-A5XT/B, 1756-A7LXT/B, 1756-A7XT/C, and 1756-A10XT/C chassis. For wiring, use 2.5 ̧ -- mma €-- ^2 (14 AWG) stranded or solid copper wire rated at 194 °F or higher with a maximum insulation of 1.2 mm (3/64 in).
The 1756-PA30XT power supply is suitable for industrial environments with 30g operating shock and 5-95% non-condensing relative humidity.
