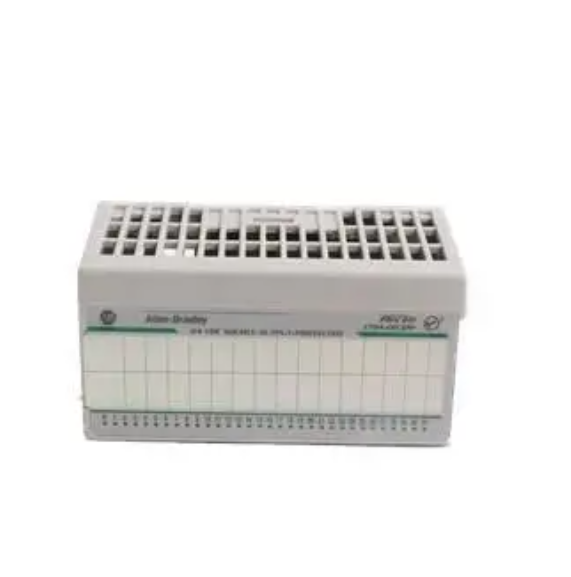

1756-OX81 隔离继电器输出模块 触点输出模块

1756-OX81隔离继电器输出模块触点输出模块【产品详情】1756-OX8I的技术参数制造者罗克韦尔自动化品牌艾伦-布拉德利零件号/目录号1756-OX8I型

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

1756-OX81 隔离继电器输出模块 触点输出模块




【产品详情】





1756-OX8I 的技术参数

制造者 罗克韦尔自动化

品牌 艾伦-布拉德利

零件号/目录号 1756-OX8I型

系列 ControlLogix

模块类型 隔离继电器输出模块

输出 8 点独立隔离

输出电流 2、0.5、0.25 安培

触点输出 C型触点

工作电压 10-265 伏交流电,5-150 伏直流电

初始接触电阻 100米?@ 6V 1 安

最大开关频率 1 次操作/3 秒(额定负载时为 0.3 Hz)

平均跳出时间 1.2 毫秒

可拆卸接线端子 1756-TBCH、1756-TBS6H

预期触点寿命 300 kHz 电阻;100 kHz 电感式

最大输出延迟时间 13 毫秒

功耗(最大值) 60 摄氏度时为 3.1 瓦

5 V 时的背板电流 100毫安

刚果爱国者联盟 10612598171474

联合国和平与合作委员会 32151705

隔离电压 250V(连续)、基本绝缘型、输出到背板和输出到输出

外壳 没有


关于1756-OX8I

1756-OX8I 是 Allen-Bradley 产品,旨在与 ControlLogix 平台配合使用。该模块是一个继电器输出模块,由八 (8) 个常开 (N.O) 和八 (8) 个常闭 (N.C) 单独隔离触点组成。


由于这是一个触点输出模块,因此每个触点都可以单独接线,交流电压范围为 10 - 240 VAC 或直流电压tage 范围为 5 至 125VDC。这使得该模块能够为在不同电压类别下运行的输出设备供电。输出设备,如接触器、电机启动器、变频驱动器、指示灯、信号器面板、探测装置、电机和设备是可以连接到此模块的一些负载。


该模块的输出通道是单独隔离的,但也可以作为非隔离继电器输出模块接线。这是通过使用 1756-JMPR 或第三方跳线导体将可拆卸接线端子 (RTB) 的 L1 连接短接即可完成的。


与继电器输出模块一起使用的兼容 RTB 是 1756-TBCH 和 1756-TBS6H。这些模块需单独购买。通过使用 RTB,输出端接实现了模块化,简化了模块安装、故障排除和更换。RTB 可防止重新接线或输出信号终止。


每个模块的最大初始接触电阻为100μm?此外,每个触点输出的预期触点寿命为300 kHz(阻性负载)和100 kHz(感性负载)。该器件的开关频率为 1 次操作/3 s(额定负载时为 0.3 Hz),平均跳动时间为 1.2 ms。




1756-OX81 隔离继电器输出模块 触点输出模块



英文介绍





Technical parameters of 1756-OX8I

Manufacturer Rockwell Automation

Brand Allen Bradley

Part number/Catalog number Type 1756-OX8I

Series ControlLogix

Module Type Isolated relay output module

Output 8 points independent isolation

Output current 2, 0.5, 0.25 amps

Contact Output C-type contact

Operating voltage 10-265 volts AC, 5-150 volts DC

Initial contact resistance 100 m? @ 6V 1 amp

Max switching frequency 1 operation /3 seconds (0.3Hz at rated load)

The average exit time is 1.2 milliseconds

Detachable terminal 1756-TBCH, 1756-TBS6H

Expected contact life 300 kHz resistance; 100 kHz inductive type

The maximum output delay time is 13 ms

Power consumption (Max) is 3.1 watts at 60 degrees Celsius

Backplane current 100 mA at 5 V

Union of Congolese Patriots 10612598171474

United Nations Peace and Cooperation Council 32151705

Isolation voltage 250V (continuous), basic insulation type, output to backplane and output to output

Shell no


About 1756-OX8I

The 1756-OX8I is an Allen-Bradley product designed to work with the ControlLogix platform. The module is a relay output module consisting of eight (8) normally open (N.O) and eight (8) normally closed (N.C) individual isolating contacts.


Since this is a contact output module, each contact can be wired individually, with AC voltages ranging from 10-240 VAC or DC voltage tage ranges from 5 to 125VDC. This enables the module to power output devices operating in different voltage classes. Output devices such as contactors, motor starters, variable frequency drivers, indicators, signaler panels, detection devices, motors and devices are some of the loads that can be connected to this module.


The output channel of the module is isolated separately, but can also be wired as a non-isolated relay output module. This is done by shorting the L1 connection of the detachable terminal (RTB) using the 1756-JMPR or a third party jumper conductor.


Compatible RTBS used with relay output modules are 1756-TBCH and 1756-TBS6H. These modules must be purchased separately. By using RTB, output terminations are modular, simplifying module installation, troubleshooting, and replacement. RTB prevents rewiring or output signal termination.


The maximum initial contact resistance per module is 100μm. In addition, the expected contact life of each contact output is 300 kHz (resistive load) and 100 kHz (inductive load). The device has a switching frequency of 1 operation /3 s (0.3 Hz at rated load) and an average runout time of 1.2 ms.
