1756-OW16IK 保形涂层隔离触点模块  独立隔离输出

【产品详情】

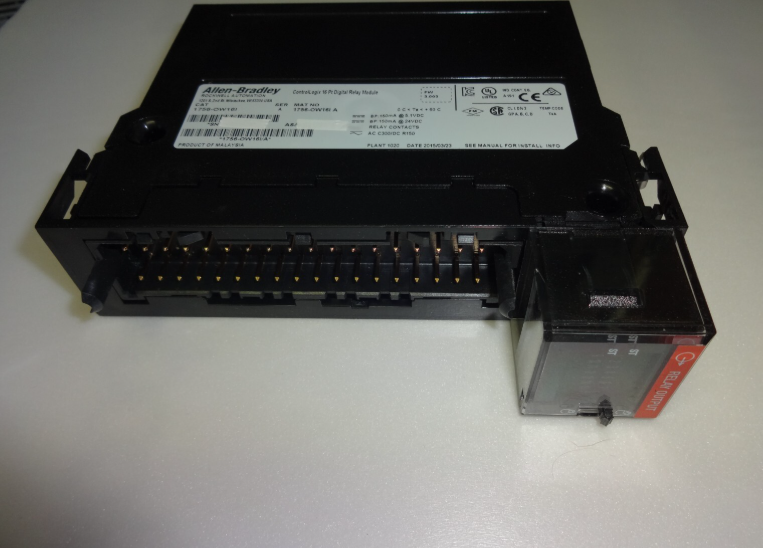

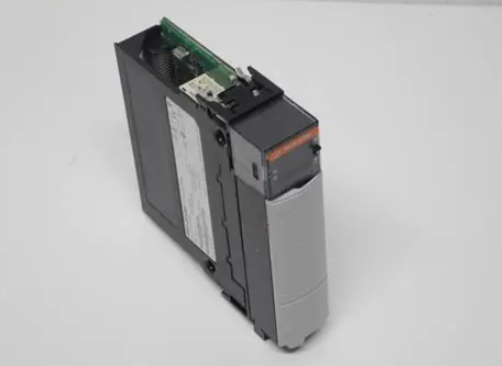

Allen-Bradley 1756-OW16IK 模块是用于 Allen-Bradley ControlLogix 5580 可编程控制器的保形涂层隔离触点模块。1756-OW16IK 模块具有 16 个常开独立隔离输出。飞行员职责是 C300/R150 飞行员职责。工作电压范围为 5 至 125 伏直流电和 10 至 240 伏交流电。输出电压范围取决于负载：在 1 安培时，输出电压范围为 5 至 30 伏直流电，在 0.5 安培时，输出为 48 伏直流电，在 0.22 安培时，输出为 125 伏直流电，在 1.5 安培时，输出为 120 伏交流电（50 至 60 赫兹），在 0.75 安培时， 输出电压为 240 伏交流电（50 至 60 赫兹）。

1756-OW16IK 模块在 5.1 伏和 24 伏电压下的电流消耗为 150 毫安。机箱背板的功耗为 4.4 瓦，峰值功耗为 4.5 瓦。模块散热为每小时 15.35 BTU。每个点的最小负载电流为 10 毫安。初始接触电阻为 100 毫欧姆，电压为 6 伏和 1 安培。预期触点寿命为300千赫兹电阻和100千赫兹电感。1756-OW16IK 模块可与可拆卸接线端子配合使用，包括 1756-TBCH 和 1756-TBS6H 可拆卸接线端子。模块安装需要机架中的一个插槽。1756-OW16IK 模块的工作温度范围为 0 至 60 摄氏度。连续隔离电压额定值为 250 伏。该模块可以在施加机箱电源时安装。但是，不建议这样做，因为在模块插入或移除过程中可能会发生电弧，这可能导致危险场所发生爆炸。

1756-OW16IK 保形涂层隔离触点模块  独立隔离输出

【英文介绍】

The Allen-Bradley 1756-OW16IK module is a conform-coated isolated contact module for the Allen-Bradley ControlLogix 5580 programmable controller. The 1756-OW16IK module has 16 normally open independent isolated outputs. Pilot duties are C300/R150 pilot duties. The operating voltage range is 5 to 125 volts DC and 10 to 240 volts AC. The output voltage range depends on the load: At 1 amp, the output voltage ranges from 5 to 30 volts DC, at 0.5 amps, the output is 48 volts DC, at 0.22 amps, the output is 125 volts DC, at 1.5 amps, the output is 120 volts AC (50 to 60 Hz), and at 0.75 amps. The output voltage is 240 volts AC (50 to 60 Hz).

The 1756-OW16IK module has a current consumption of 150 mA at 5.1 and 24 volts. The chassis backplane consumes 4.4 watts of power and 4.5 watts of peak power. Module heat dissipation is 15.35 BTU per hour. The minimum load current at each point is 10 mA. The initial contact resistance is 100 milliohm and the voltage is 6 volts and 1 amp. The expected contact life is 300 KHZ resistor and 100 KHZ inductor. The 1756-OW16IK module can be used with detachable terminals, including the 1756-TBCH and 1756-TBS6H detachable terminals. Module installation requires a slot in the rack. The 1756-OW16IK module operates in a temperature range of 0 to 60 degrees Celsius. The continuous isolation voltage is rated at 250 volts. The module can be installed when the chassis power supply is applied. However, this is not recommended, as arcing may occur during module insertion or removal, which may result in an explosion in a dangerous location.
