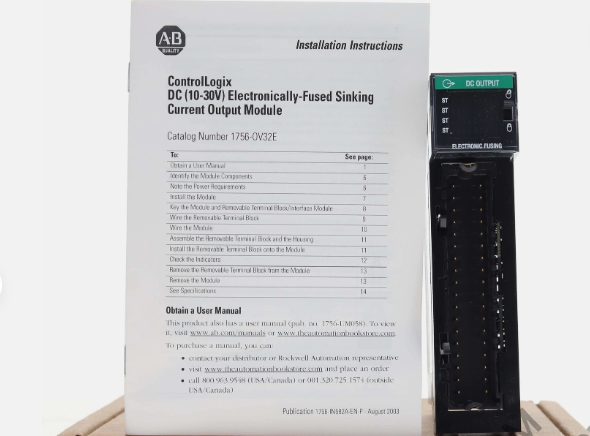

1756-OV32E 直流电子熔断式灌电流输出模块
【产品详情】
1756-OV32E 的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 ¥1756-OV32E
系列 ControlLogix
模块类型 电子熔丝灌电流输出模块
输出 32 点电子熔断器
电压 12-24 伏直流电
工作电压范围 10-30 伏直流电
最大输出电流额定点 50 摄氏度时为 0.5 安培,60 摄氏度时为 0.35 安培
最大输出电流额定值-模块 50 摄氏度时为 16 安培,60 摄氏度时为 10 安培
功耗(最大值) 60 摄氏度时为 5.88 瓦
5 V 时的背板电流 390毫安
可拆卸接线端子 1756-TBCH、1756-TBS6H
隔离电压 50 伏连续电压
外壳 没有
关于1756-OV32E
Allen-Bradley 的 1756-OV32E ControlLogix 直流电子熔断式灌电流输出模块是一款位于机箱式的输出模块,具有 32 个电子熔断和灌电流输出。它的工作电压范围为 10-30V DC,OFF 到 ON 的最大信号时间延迟为 300μs,ON 到 OFF 的最大信号时间延迟为 1ms。1756-OV32E在5.1V时消耗390mA电流,在24V时消耗2mA电流,背板上的总输出额定值为2.04W。运行时,1756-OV32E 的散热为 20.1 BTU/hr,每个输出点的电流泄漏为 1mA。在ON状态下,电路在0.5A时会损失350mV DC,在50°C时每个点上的最大电流为0.5A,在50°C时整个模块上总共为16A。
每个输出点的最小负载为 2mA,每个输出点的浪涌为 2A,持续 10ms,每 2 秒重复一次。每个输出信号都以 16.7 秒的速度进行调度和同步,并参考协调的系统时间 (CST)。1756-OV32E 具有 250V 的隔离电压,基本绝缘类型。它具有工厂指定的 T4 北美和 IEC 温度代码,并具有开放式外壳。1756-OV32E 的功能湿度范围为 5% 至 95%,无冷凝,工作温度范围为 0-60 °C。
1756-OV32E 直流电子熔断式灌电流输出模块
【英文介绍】
Technical parameters of 1756-OV32E
Manufacturer Rockwell Automation
Brand Allen Bradley
Part number/Catalog number ¥1756-OV32E
Series ControlLogix
Module Type Electronic fuse filling current output module
Output 32 point electronic fuse
Voltage 12-24 volts DC
Operating voltage range 10-30 volts DC
The maximum output current is rated at 0.5 amps at 50 degrees Celsius and 0.35 amps at 60 degrees Celsius
Maximum output current ratings - 16 amps at 50 degrees Celsius for the module and 10 amps at 60 degrees Celsius
Power consumption (Max) is 5.88 watts at 60 degrees Celsius
The backplane current at 5 V is 390 mA
Detachable terminal 1756-TBCH, 1756-TBS6H
Isolation voltage 50 V continuous voltage
Shell no
About 1756-OV32E
Allen-Bradley's 1756-OV32E ControlLogix DC electronic fusing feed current output module is a chassis based output module with 32 electronic fusing and feed current outputs. It operates in a voltage range of 10-30V DC, with a maximum signal time delay of 300μs from OFF to ON and 1ms from ON to OFF. The 1756-OV32E consumes 390mA at 5.1V and 2mA at 24V, with a total output rating of 2.04W on the backplane. In operation, the 1756-OV32E has a heat dissipation of 20.1 BTU/hr and a current leakage of 1mA per output point. In the ON state, the circuit loses 350mV DC at 0.5A, with A maximum current of 0.5A at each point at 50°C and a total of 16A over the entire module at 50°C.
The minimum load per output point is 2mA and the surge per output point is 2A for 10ms and repeated every 2 seconds. Each output signal is scheduled and synchronized at a rate of 16.7 seconds with reference to the coordinated System Time (CST). The 1756-OV32E has an isolation voltage of 250V, basic insulation type. It has factory specified T4 North American and IEC temperature codes and has an open housing. The 1756-OV32E has a functional humidity range of 5% to 95%, no condensation, and an operating temperature range of 0-60 °C.
