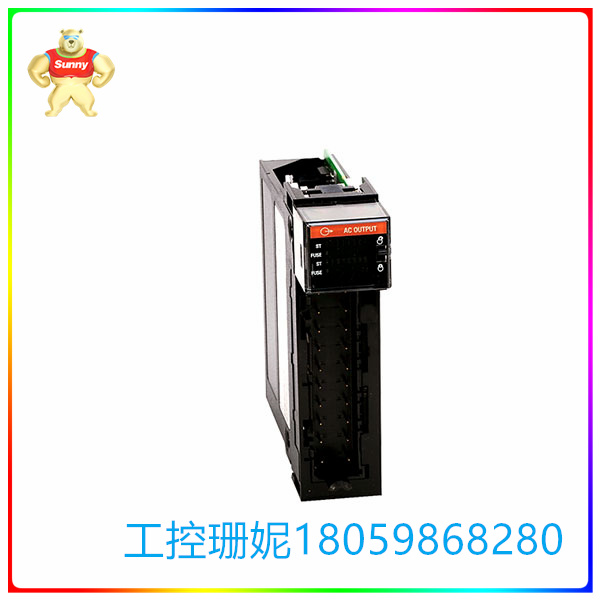

1756-OH81 隔离输出模块 数字输出模块
【产品详情】
1756-OH8I 的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 1756-OH8I型
系列 ControlLogix
模块类型 隔离输出模块
输出 8 点独立隔离
电压 120 V 直流灌电流源
工作电压范围 90-146 伏直流电
最大输出电流额定点 60 摄氏度时为 2 安培
最大输出电流额定值-模块 60 摄氏度时为 8 安培
功耗(最大值) 60 摄氏度时为 3.3 瓦
5 V 时的背板电流 210毫安
可拆卸接线端子 1756-TBCH、1756-TBS6H
隔离电压 50 伏连续电压
外壳 没有
刚果爱国者联盟 10612598171443
关于1756-OH8I
Allen-Bradley 的 1756-OH8I ControlLogix 直流数字输出模块是一款数字输出模块,在 ControlLogix 设备的机箱上具有 8 个隔离的 120V 直流灌电流/拉电流输出。它的电压范围为 90-146V DC,ON 到 OFF 和 OFF 到 ON 的最大输出信号延迟时间为 2ms。1756-OH8I 在 24V 时具有 2mA 的背板消耗电流,在 5.1V 时具有 210mA 的背板消耗电流,总背板功率为 1.1W。运行时,它在 60 °C (140 °F) 时可散发 3.3W (11.25 BTU/hr) 的热量,并且每点具有 1mA 的关断状态泄漏电流。在导通状态下,1756-OH8I 在 2A 时具有 2V DC 的压降,每个输出点上保留的最大电流为 2A。 每个点的最小电流负载为 2mA,每个点的浪涌为 4A,1756-OH8I 模块在 60 °C (140 °F) 时可以承受的最大电流为 8A。
其输出到背板和输出到输出之间的隔离电压为 250V,基本绝缘类型在 1350V AC 下测试了 2 秒。1756-OH8I 具有工厂指定的 T4A 北美温度代码,并配有开放式外壳。它在 5-95% 相对湿度环境下具有 0-60 °C (32-140 °F) 的工作温度范围。1756-OH8I 设计用于在 10-500Hz 下承受 2G 的工作振动和高达 20G 的冲击等级。
1756-OH81 隔离输出模块 数字输出模块
【英文介绍】
Technical specifications of 1756-OH8I
Manufacturer Rockwell Automation
Brand Allen Bradley
Part number/Catalog number 1756-OH8I
Series ControlLogix
Module Type Isolated output module
Output 8 points independent isolation
Voltage 120 V DC irrigation current source
Operating voltage range 90-146 volts DC
The maximum output current is 2 amps at the rated point of 60 degrees Celsius
Maximum output current rating - 8 amps at 60 degrees Celsius for the module
Power consumption (Max) is 3.3 watts at 60 degrees Celsius
The backplane current at 5 V is 210 mA
Detachable terminal 1756-TBCH, 1756-TBS6H
Isolation voltage 50 V continuous voltage
Shell no
Union of Congolese Patriots 10612598171443
About 1756-OH8I
Allen-Bradley's 1756-OH8I ControlLogix DC digital Output module is a digital output module with eight isolated 120V DC feed/pull current outputs on the chassis of ControlLogix devices. It has a voltage range of 90-146V DC and a maximum output signal delay time of 2ms ON to OFF and OFF to ON. The 1756-OH8I has a backplane current consumption of 2mA at 24V and 210mA at 5.1V for a total backplane power of 1.1W. In operation, it emits 3.3W (11.25 BTU/hr) of heat at 60 °C (140 °F) and has a turn-off leakage current of 1mA per point. In the on-state, the 1756-OH8I has a voltage drop of 2V DC at 2A, and the maximum current retained at each output point is 2A. With a minimum current load of 2mA per point and a surge of 4A per point, the 1756-OH8I module can withstand a maximum current of 8A at 60 °C (140 °F).
Its isolation voltage between output to backplane and output to output is 250V, and the basic insulation type was tested for 2 seconds at 1350V AC. The 1756-OH8I has a factory specified T4A North American temperature code and comes with an open housing. It has an operating temperature range of 0-60 °C (32-140 °F) at 5-95% relative humidity. The 1756-OH8I is designed to withstand operating vibrations of 2G at 10-500Hz and shock ratings of up to 20G.
