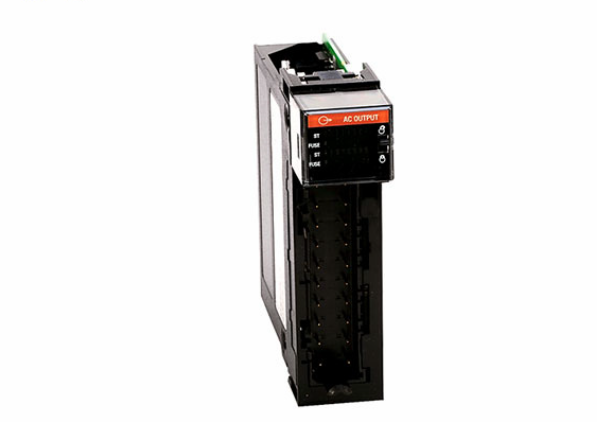

1756-OG16 数字直流输出模块,带 16 点输出

1756-OG16数字直流输出模块,带16点输出【产品详情】技术参数1756-OG16制造者罗克韦尔自动化品牌艾伦-布拉德利零件号/目录号1756-OG16型系

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

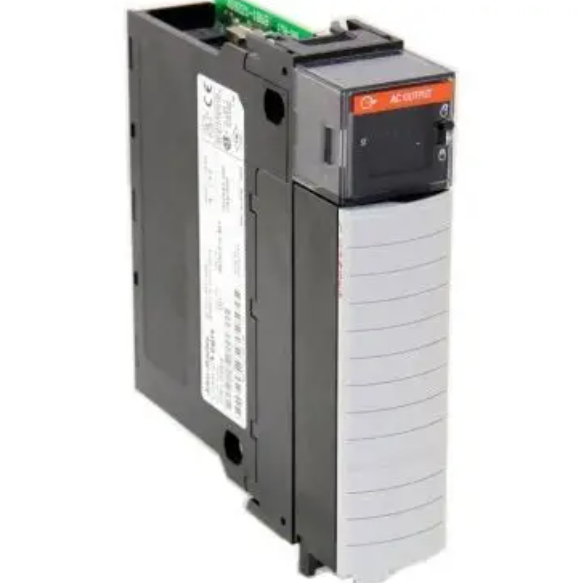

1756-OG16 数字直流输出模块,带 16 点输出




【产品详情】



技术参数 1756-OG16

制造者 罗克韦尔自动化

品牌 艾伦-布拉德利

零件号/目录号 1756-OG16型

系列 ControlLogix

模块类型 数字直流模块

输出 16 点

电压 5 V DC,带 TTL 源

工作电压范围 4.5-5.5 伏直流电

最大输出电流额定点 60 摄氏度时为 24 毫安

最大输出电流额定值-模块 60 摄氏度时为 384 毫安

功耗(最大值) 60 摄氏度时为 1.5 瓦

5 V 时的背板电流 210毫安

可拆卸接线端子 1756-TBNH,1756-TBSH

隔离电压 50 伏连续电压

外壳 没有


关于1756-OG16

Allen-Bradley 的 1756-OG16 ControlLogix 晶体管-晶体管逻辑输出模块是安装在 ControlLogix 机箱中的直流数字输出模块,具有 16 个 5V DC 低/真 TTL 输出。其工作电压范围介于 4.5 至 5.5V DC 之间,OFF 至 ON 的负载相关信号延迟时间为 450μs,ON 至 OFF 的负载相关信号延迟时间为 700μs。1756-OG16 在 5.1V DC 时的背板消耗电流为 210mA,在 24V DC 时为 2mA,背板总功率为 1.12W。1756-OG16 在每个输出点上的最大 OFF 状态电流泄漏为 0.1mA,其整体 ON 状态压降电压为 0.4V。


每个点的最大电流负载为24mA,模块上的总电流负载为384mA,最大输出定时时间为16.7s。运行时,1756-OG16 在 60 °C 时的散热为 5.2 BTU/hr,功耗为 1.5W,并带有北美和欧洲工厂指定的 T5 温度代码。它的功能温度范围为 0-60 °C (32-140 °F),湿度为 5-95%,无冷凝。1756-OG16 在 10-500Hz 时的工作冲击额定值为 30G,振动为 2.0G。它通过了 CE 和 UL 认证,并具有 CISPR 11 A 类排放等级。




1756-OG16 数字直流输出模块,带 16 点输出



英文介绍





Technical parameters 1756-OG16

Manufacturer Rockwell Automation

Brand Allen Bradley

Part number/Catalog number Model 1756-OG16

Series ControlLogix

Module Type Digital DC module

Output 16 points

Voltage 5 V DC with TTL source

Operating voltage range 4.5-5.5 volts DC

The maximum output current is 24 MA at a rated point of 60 degrees Celsius

Maximum output current rating - 384 MA at 60 degrees Celsius for the module

Power consumption (Max.) 1.5 watts at 60 degrees Celsius

The backplane current at 5 V is 210 mA

Detachable terminal 1756-TBNH, 1756-TBSH

Isolation voltage 50 V continuous voltage

Shell no


About 1756-OG16

Allen-Bradley's 1756-OG16 ControlLogix transistor-transistor logic output module is a DC digital output module installed in the ControlLogix case with 16 5V DC low/true TTL outputs. The operating voltage range is between 4.5 and 5.5V DC, and the load dependent signal delay time is 450μs for OFF to ON and 700μs for ON to OFF. The backplane consumption of 1756-OG16 is 210mA at 5.1V DC, 2mA at 24V DC, and the total backplane power is 1.12W. The 1756-OG16 has a maximum OFF state current leakage of 0.1mA at each output point and an overall ON state voltage drop of 0.4V.


The maximum current load at each point is 24mA, the total current load on the module is 384mA, and the maximum output timing time is 16.7s. In operation, the 1756-OG16 has a heat dissipation of 5.2 BTU/hr at 60 °C, a power consumption of 1.5W, and comes with a T5 temperature code specified by North American and European plants. It has a functional temperature range of 0-60 °C (32-140 °F), humidity of 5-95%, and no condensation. The 1756-OG16 has an operating shock rating of 30G and vibration of 2.0G at 10-500Hz. It is CE and UL certified and has CISPR 11 Class A emission rating.
