1756-OF8H 模拟输出模块 具有 8 个电压或电流输出
【产品详情】

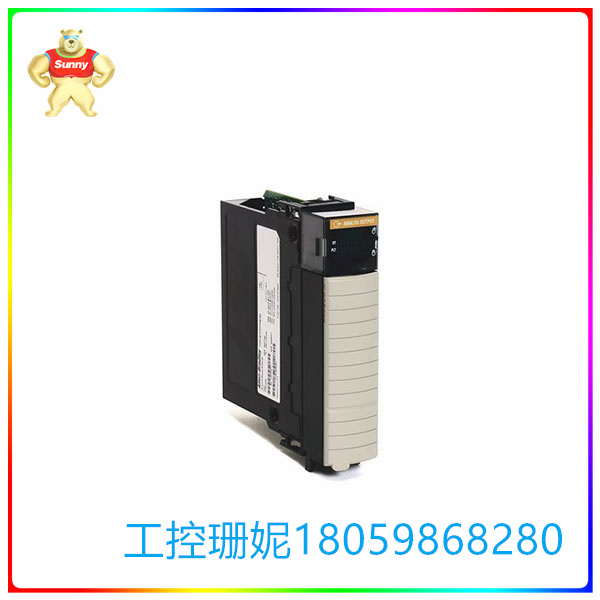

1756-OF8H 是一款模拟输出模块,是 Allen-Bradley Logix 控制器平台的一部分。该模块具有八 (8) 个电压或电流输出通道和一 (1) 个高速可寻址远程传感器 (HART) 调制解调器。每个通道可配置为 0-20 mA 和 4-20 mA 输出电流信号,而可配置电压输出信号为 +/-10 VDC。该模块的所有范围的分辨率为 15-16 位。
Allen-Bradley 的 1756-OF8H ControlLogix 电压/电流模拟输出模块是一款模拟输出模块,具有 8 个电压或电流输出,每个模块有一个 HART 调制解调器。它具有 -10.4336-10.4336V 和 0-21.2916mA 的可选电压/电流信号范围。1756-OF8H 的总输出额定值为 +/- 10V 或 0-20mA,所有范围的信号分辨率为 15-16 位。它还具有 230 mA @ 5.1 VDC 和 230 mA @ 24 VDC 的背板电流消耗,背板总功率为 6.54W。它的散热为 16.78 BTU/小时,功耗为 4.92W。1756-OF8H 的隔离电压为 50V,输出通道和背板之间的基本绝缘测试在 1500V AC 下持续 60 秒。
与其他模拟量 I/O 模块不同,1756-OF8H 提供开路检测,电路检测时间必须设置为低于 0.1 mA。其电流建立时间(无HART)略低于23ms,使用HART时低于37ms,电阻负载时电压建立时间为8.5ms至95%。它的校准精度(无HART)为0.1%(电压)和0.15%(电流),其标准校准间隔约为12个月。1756-OF8H 的失调漂移为 100 V/°C 或 200nA/°C,模块的整体模块误差为 0.15%(电压)或 0.3%(电流)。它具有 T4 北美、ATEX 和 IEC 温度代码,并具有开放式外壳等级。1756-OF8H 的工作温度范围在 0 摄氏度至 60 摄氏度之间,相对湿度为 5-95%,无冷凝。
1756-OF8H 模拟输出模块 具有 8 个电压或电流输出
【英文介绍】
The 1756-OF8H is an analog output module that is part of the Allen-Bradley Logix controller platform. The module has eight (8) voltage or current output channels and one (1) high-speed addressable Remote Sensor (HART) modem. Each channel can be configured for 0-20 mA and 4-20 mA output current signals, while configurable voltage output signals are +/-10 VDC. The resolution of all ranges of the module is 15-16 bits.
Allen-Bradley's 1756-OF8H ControlLogix Voltage/current analog Output module is an analog output module with eight voltage or current outputs, each with a HART modem. It has an optional voltage/current signal range of -10.4336-10.4336V and 0-21.2916mA. The 1756-OF8H has a total output rating of +/ -10V or 0-20mA and a signal resolution of 15-16 bits across all ranges. It also has backplane current consumption of 230 mA @ 5.1 VDC and 230 mA @ 24 VDC for a total backplane power of 6.54W. It has a heat dissipation of 16.78 BTU/ hour and a power consumption of 4.92W. The isolation voltage of the 1756-OF8H is 50V, and the basic insulation test between the output channel and the backplane lasts 60 seconds at 1500V AC.
Unlike other analog I/O modules, the 1756-OF8H provides open circuit detection, and the circuit detection time must be set to less than 0.1 mA. Its current build up time (without HART) is slightly less than 23ms, less than 37ms with HART, and voltage build up time with resistance load ranges from 8.5ms to 95%. Its calibration accuracy (HART free) is 0.1% (voltage) and 0.15% (current), and its standard calibration interval is about 12 months. The 1756-OF8H offset drift is 100 V/°C or 200nA/°C, and the module's overall module error is 0.15% (voltage) or 0.3% (current). It has T4 North America, ATEX and IEC temperature codes and is available in an open housing grade. The 1756-OF8H operates at a temperature range of 0 ° C to 60 ° C, with a relative humidity of 5-95% and no condensation.
