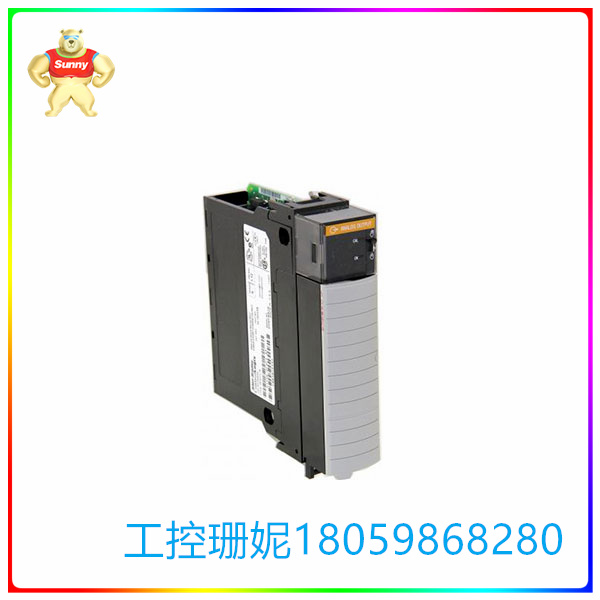

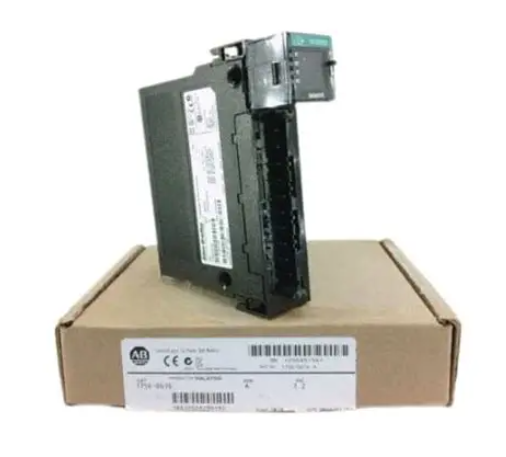

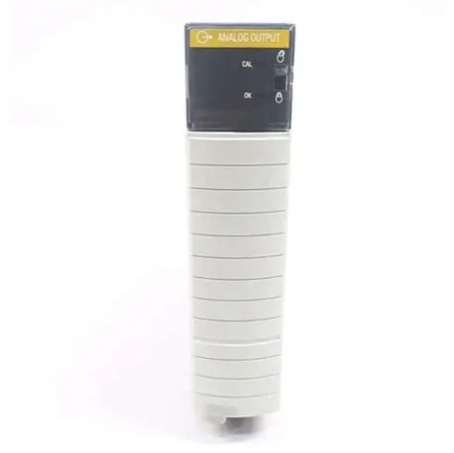

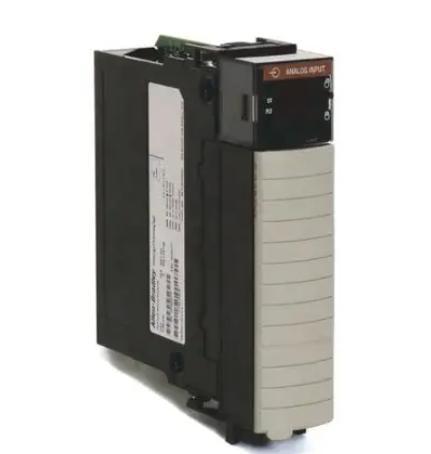

1756-OF6VI 电压环路模拟输出模块 占用机箱的单个插槽
【产品详情】
Allen-Bradley 1756-OF6VI 是一款电压环路模拟输出模块,是 ControlLogix 控制器平台的一部分。该模块占用机箱的单个插槽,该插槽可以安装到背板的任何可用插槽上。它也可以用作分布式 I/O 架构的本地 I/O 模块或组件模块。1756-OF6VI 带有六 (6) 个独立隔离的电压输出通道,能够生成 +/- 10 VDC 输出信号。该器件在 21V (1.3mV) 范围内具有 14 位输出分辨率,在 10.5V + 符号位范围内具有 13 位输出分辨率。该模块的电流消耗为 250 mA @ 5.1 VDC 和 175 mA @ 24 VDC,而模块的总背板功耗为 5.5 W。1756-OF6VI 具有额定电压为 24 VDC 的过压保护和电子短路保护。该模块可以驱动额定> 1000 ?负载,10 mA。对于阻性负载,该模块的输出建立时间为< 2 ms 至最终值的 95%,而校准精度优于输出范围的 0.1%。建议每六 (6) 个月校准一次模块,典型失调漂移为 60 μV/°C,而模块误差为量程的 0.5%,最大模块扫描时间为浮点 25 ms,整数数据格式为 10 ms。1756-OF6VI 带有采用 R-Ladder 类型的内部数模转换器 (DAC) 电路。它将数据转换为整数模式(左对齐,2 秒补码)IEEE 32 位浮点类型。
Allen-Bradley 开发的 1756-OF6VI ControlLogix 电压环路输出模拟量模块是一款 ControlLogix 机箱插槽式模拟量输出模块, 具有 6 个独立隔离的输出。它具有可选的信号范围,总输出范围为 +/- 10.5V,信号分辨率为 14 位,电压为 21V。它在 24V DC 时的背板消耗电流为 175mA,在 5.1V DC 时为 250mA,最大背板功率为 5.5W。1756-OF6VI 的散热为 16.54 BTU/hr,功耗为 4.85W,输出阻抗为 1 Ω。它不带开路检测功能,但提供 24V DC 过压保护和电子限流短路保护。
1756-OF6VI 具有 10mA 负载驱动能力和 <2ms 建立时间。1756-OF6VI 的校准精度远优于其量程的 0.1%,并且仅在 6 个月后才需要重新校准。该模块的最大增益漂移为 80 ppm/°C,标准失调漂移为 60 V/°C。1756-OF6VI 的总模块误差范围为 0.5%,浮点模块扫描时间为 25 毫秒,整数模块扫描时间为 10 毫秒。它具有 250V 的隔离电压,具有基本绝缘,在 1350V AC 下测试了 2 秒,在输出通道到背板之间以及输出通道到通道之间。它具有 T4A 北美指定温度代码和 IEC T4 温度代码,并采用开放式外壳。1756-OF6VI 在 5-95% 非冷凝湿度环境下具有 0 至 60 摄氏度的功能温度范围,设计用于承受 30G 的操作冲击和 10-500Hz 的 2G 振动。
1756-OF6VI 电压环路模拟输出模块 占用机箱的单个插槽
【英文介绍】
The Allen-Bradley 1756-OF6VI is a voltage loop analog output module that is part of the ControlLogix controller platform. The module occupies a single slot in the chassis, which can be installed into any available slot on the backplane. It can also be used as a local I/O module or component module for distributed I/O architectures. The 1756-OF6VI features six (6) independently isolated voltage output channels capable of generating a +/ -10 VDC output signal. The device has a 14-bit output resolution in the 21V (1.3mV) range and a 13-bit output resolution in the 10.5V + symbol bit range. The module's current consumption is 250 mA @ 5.1VDC and 175 mA @ 24VDC, while the module's total backplane power consumption is 5.5W. The 1756-OF6VI has overvoltage protection with a rated voltage of 24 VDC and electronic short circuit protection. Can the module drive rated > 1000? Load, 10 mA. For resistive loads, the module's output establishment time is < 2 ms to 95% of the final value, while the calibration accuracy is better than 0.1% of the output range. It is recommended to calibrate the module every six (6) months with a typical offset drift of 60 μV/°C, while the module error is 0.5% of the range, the maximum module scan time is 25 ms floating point, and the integer data format is 10 ms. The 1756-OF6VI comes with an internal digital-to-analog converter (DAC) circuit using the R-Ladder type. It converts data to integer mode (left-justified, 2-second complement) IEEE 32-bit floating-point type.
The 1756-OF6VI ControlLogix voltage Loop output analog module developed by Allen-Bradley is a ControlLogix chassis slotted analog output module with six independently isolated outputs. It has an optional signal range with a total output range of +/- 10.5V, a signal resolution of 14 bits and a voltage of 21V. It has a backplane consumption of 175mA at 24V DC and 250mA at 5.1V DC, with a maximum backplane power of 5.5W. The 1756-OF6VI has a heat dissipation of 16.54 BTU/hr, a power consumption of 4.85W, and an output impedance of 1 Ω. It does not have open circuit detection, but provides 24V DC overvoltage protection and electronic current limiting short circuit protection.
The 1756-OF6VI has a 10mA load drive capability and <2ms setup time. The calibration accuracy of the 1756-OF6VI is much better than 0.1% of its range and requires recalibration only after 6 months. The module has a maximum gain drift of 80 ppm/°C and a standard offset drift of 60 V/°C. The 1756-OF6VI has a total module error range of 0.5% with a floating point module scan time of 25 ms and an integer module scan time of 10 ms. It has an isolation voltage of 250V, with basic insulation, and was tested for 2 seconds at 1350V AC, between the output channel and the backplane and between the output channel and the channel. It has a T4A North American specified temperature code and an IEC T4 temperature code and comes in an open housing. The 1756-OF6VI has a functional temperature range of 0 to 60 degrees Celsius at 5-95% non-condensing humidity and is designed to withstand 30G operating shocks and 2G vibrations at 10-500Hz.
1756-OF6VI 电压环路模拟输出模块 占用机箱的单个插槽
