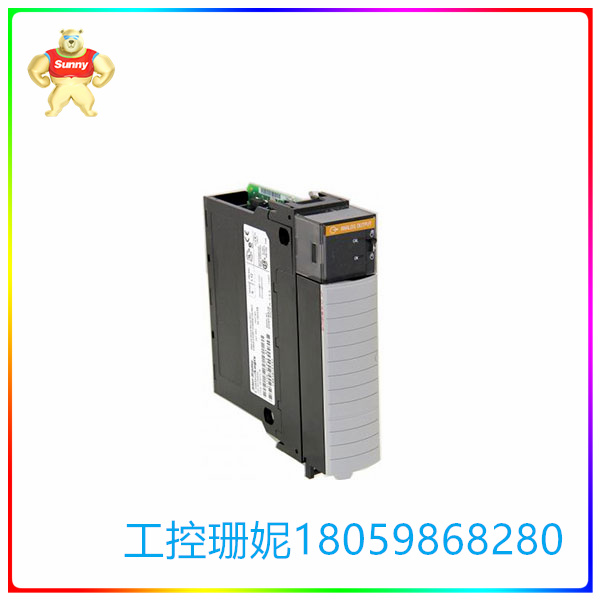

1756-OF6CI 通用隔离式模拟电流/电压输出模块 可拆卸接线端子外壳
【产品详情】
Allen-Bradley 1756-OF6CI 模块是 ControlLogix A 系列通用隔离式模拟电流/电压输出模块。该模块具有 6 个可用的独立隔离电流输出。它还具有 13 位分辨率,电流为 21 毫安 (2.7 μA)。它需要 1756-TBNH 或 1756-TBSH 可拆卸接线端子外壳 (RTB),然后才能安装在接地和安装的机箱中。
1756-OF6CI 模块提供的通信格式类型是整数和浮点格式。该模拟输出模块的功能包括数据回波、斜坡/速率限制、箝位/限位、箝位/限位报警和用于初始化的保持。对 1756-OF6CI 的功能进行编程。
它的范围为 0 至 20 毫安,低信号和用户计数为 0 毫安和 -32768 计数,高信号和用户计数为 21.074 毫安,具有 32767 计数。该模块在 5.1V 时的电流消耗为 250 毫安,从 0 到 550 欧姆端接在 OUT 和 RTN 上,551 到 1000 欧姆端接在 OUT 和 ALT 上。在 24V 电压下,其电流消耗为 225 毫安(端接在 OUT 和 RTN 上端接的 0 至 550 欧姆)和 300 毫安(端接在 OUT 和 ALT 上的 551 至 1000 欧姆)。它的总背板功率为 6.7 W(0 至 550 欧姆)和 8.5 W(551 至 1000 欧姆)。该模块的最大功耗为 5.5 W(0 至 550 欧姆负载)和 6.1 W(551 至 1000 欧姆负载)。它没有开路检测功能,但具有 24V 直流过压保护和限制在 21 毫安或更低的短路保护。在 1350V AC 下常规测试 2 s,其连续隔离电压为 250V。
1756-OF6CI 模块的最大模块扫描时间为整数格式 10 ms,浮点格式的最大模块扫描时间为 25 ms,模块误差为范围的 0.6%。在电阻负载下,其建立时间小于最终值的 2 ms 至 95%,校准间隔为 6 个月,在 25 摄氏度时,校准精度优于 0.1%,为 4 至 21 毫安。标称增益随温度变化的漂移为60 ppm/摄氏度,最大增益漂移为100 ppm/摄氏度/摄氏度。
1756-OF6CI 通用隔离式模拟电流/电压输出模块 可拆卸接线端子外壳
【英文介绍】
The Allen-Bradley 1756-OF6CI module is the ControlLogix A Series universal isolated analog current/voltage output module. The module has 6 available independent isolated current outputs. It also has a 13-bit resolution and a current of 21 mA (2.7 μA). It requires a 1756-TBNH or 1756-TBSH detachable terminal housing (RTB) before it can be installed in a grounded and mounted case.
The types of communication formats provided by the 1756-OF6CI module are integer and floating point formats. The functions of the analog output module include data echo, ramp/rate limit, clamp/limit, clamp/limit alarm, and hold for initialization. Programming the functions of 1756-OF6CI.
It has a range of 0 to 20 mah, a low signal and user count of 0 mah and -32,768 counts, and a high signal and user count of 21.074 mah with 32,767 counts. The module has a current consumption of 250 MA at 5.1V and is terminated from 0 to 550 ohms on OUT and RTN, and 551 to 1000 ohms on OUT and ALT. At 24V, its current consumption is 225 mA (0 to 550 ohms terminated at the top of OUT and RTN) and 300 mA (551 to 1000 ohms terminated at OUT and ALT). Its total backplane power is 6.7 W (0 to 550 ohms) and 8.5 W (551 to 1000 ohms). The module has a maximum power consumption of 5.5 W (0 to 550 ohms load) and 6.1 W (551 to 1000 ohms load). It has no open circuit detection, but has 24V DC overvoltage protection and short circuit protection limited to 21 mA or less. The continuous isolation voltage is 250V for a routine test of 2 s at 1350V AC.
The 1756-OF6CI module has a maximum module scan time of 10 ms in integer format and 25 ms in floating point format, with a module error of 0.6% of the range. Under resistance load, its establishment time is less than 2 ms to 95% of the final value, the calibration interval is 6 months, and the calibration accuracy is better than 0.1% at 25 degrees Celsius, with 4 to 21 mA. Nominal gain drifts with temperature of 60 ppm/ C and maximum gain drifts of 100 ppm/ C/C.
