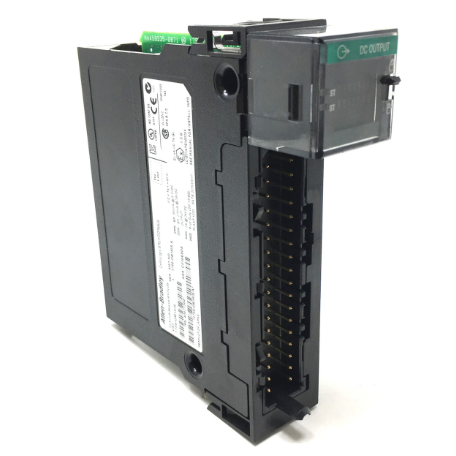

1756-OB16IS 输出模块 有 16 个独立隔离的灌电流/拉电流输出
【产品详情】
Allen-Bradley 的 1756-OB16IS ControLogix 输出模块是位于 1756 机箱插槽上的输出模块,它有 16 个独立隔离的灌电流/拉电流输出,其中 8 个输出正在调度中。它具有 2A (DC-13SQ) 触点额定值和 0-30V 工作电压。OFF至ON的信号延迟时间为1ms,ON至OFF的信号延迟时间为2ms,在5.1V DC时消耗350mA,在24V DC背板电流下消耗2.5mA,总背板功耗为1.8W。该模块在 60 °C 时的最大功耗为 3.6W,散热为 12.28 BTU/hr。ON状态下的最大电压损耗为1.2V DC,电流为2A,每点漏电流为0.5mA。每个点在 30/60 0C 时的标称电流为 1A/2A,在 30/60 0C 时模块上的最大电流为 8A/4A,模块在 10ms 时具有 4A 浪涌电流,每个输出点每 2 秒可重复一次,每个点的最小电流负载为 1mA。
它有 8 个在 16.7 秒协调系统时间 (CST) 内同步的预定输出,并具有保持最后状态、开或关故障状态,默认状态为 OFF。它在输出到背板和输出到输出之间具有 250V 隔离,采用基本型绝缘,在 1350V AC 下常规测试了 2 秒。它被指定为 T4A(北美)和 IEC T4 温度代码,并配有开放式外壳。它的最高环境温度为 60 °C (140 °F),经测试可在规定的性能标准范围内运行,工作振动为 2G,冲击为 30G。

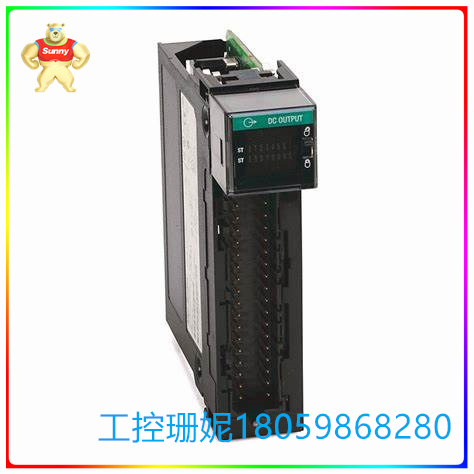

1756-OB16IS 输出模块 有 16 个独立隔离的灌电流/拉电流输出
【英文介绍】
Allen-Bradley's 1756-OB16IS ControLogix output module is an output module located in the slot of the 1756 chassis, which has 16 separate feed/pull current outputs, eight of which are being scheduled. It has a 2A (DC-13SQ) contact rating and 0-30V operating voltage. The signal delay time from OFF to ON is 1ms, the signal delay time from ON to OFF is 2ms, and the signal delay time is 350mA at 5.1V DC and 2.5mA at 24V DC backplane, for a total backplane power consumption of 1.8W. The module has a maximum power consumption of 3.6W at 60 °C and a heat dissipation of 12.28 BTU/hr. The maximum voltage loss in the ON state is 1.2V DC, the current is 2A, and the leakage current per point is 0.5mA. The nominal current at each point is 1A/2A at 30/60 0C, the maximum current on the module is 8A/4A at 30/60 0C, the module has 4A surge current at 10ms, each output point can be repeated every 2 seconds, and the minimum current load at each point is 1mA.
It has eight scheduled outputs synchronized within 16.7 seconds of coordinated System Time (CST) and has a hold last state, on or OFF failure state, with the default state being OFF. It has 250V isolation between output to backplane and output to output, with basic type insulation, and was routinely tested for 2 seconds at 1350V AC. It is designated with T4A (North America) and IEC T4 temperature codes and comes with an open housing. It has a maximum ambient temperature of 60 °C (140 °F) and has been tested to operate within the specified performance standards with an operating vibration of 2G and a shock of 30G.
1756-OB16IS 输出模块 有 16 个独立隔离的灌电流/拉电流输出
